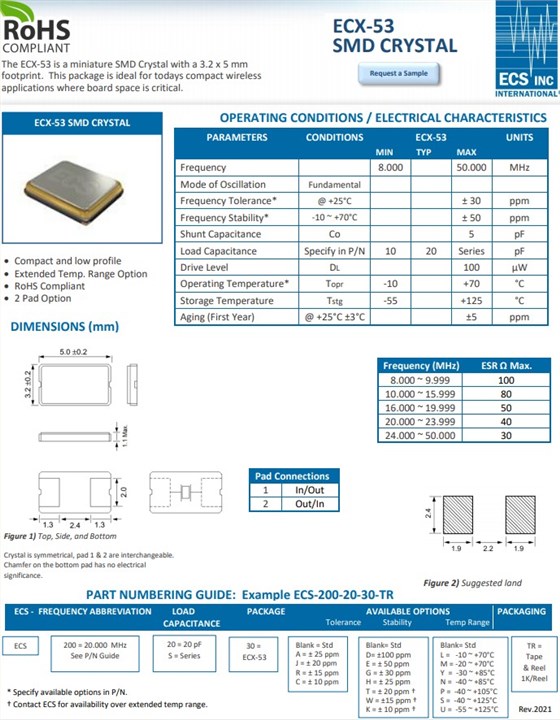

ECS晶振宣布扩展ECX-53系列的MHz表面贴装石英晶体，扩展包括在选定的开发频率中增加8pF负载电容。ECX-53是一款紧凑型5.0mmx3.2mm双焊盘表面贴装，提供8MHz至50MHz的频率范围。ECX-53系列晶体谐振器提供10ppm的严格频率和稳定性选项，以及-50°C至+125°C的扩展温度范围选项。标准部分提供20pF负载电容，工作温度范围为-10°C至+70°C。这种电子元件非常适合无线、Wi-Fi、蓝牙，智能家居，物联网和电路板空间至关重要的应用。智能家居应用晶振ECS-160-8-30-JGN-TR
特点:
尺寸：5.0x3.0x1.1mm无源晶振
提供标准工业和扩展温度范围选项
频率范围:8.000~50.000MHz
10ppm的紧密稳定性选项
10ppm的紧密公差选项
负载电容选项8pF、12pF、18pF、20 pF
符合RoHS 3和REACH标准
应用于:无线，Wi-Fi，蓝牙，物联网
| 图片 | 编码 | 频率 | 频率稳定性 | 工作温度 |
|
|
ECS-100-8-30-JGN-TR |
10 MHz |
±30ppm |
-40°C ~ +85°C |
|
|
ECS-120-8-30-JGN-TR | 12 MHz | ±30ppm | -40°C ~ +85°C |
|
|
ECS-160-8-30-JGN-TR | 16 MHz | ±30ppm | -40°C ~ +85°C |
|
|
ECS-200-8-30-JGN-TR晶体谐振器 | 20 MHz | ±30ppm | -40°C ~ +85°C |
|
|
ECS-200-8-30-JGN-TR | 20 MHz | ±30ppm | -40°C ~ +85°C |
|
|
ECS-250-8-30-JGN-TR | 25 MHz | ±30ppm | -40°C ~ +85°C |
|
|
ECS-480-8-30-JGN-TR | 48 MHz | ±30ppm | -40°C ~ +85°C |
|
|
ECS-80-8-30-JGN-TR | 8 MHz | ±30ppm | -40°C ~ 85°C |
| ECS石英晶体 | 厂家 | 型号 | 频率 | 工作温度 | 包装/封装 |
| ECS-320-8-30B-CKM | ECS Crystal | ECX-53B | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-320-8-30B-CKM | ECS Crystal | ECX-53B | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-300-8-30B-CKM | ECS Crystal | ECX-53B | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-300-8-30B-CKM | ECS Crystal | ECX-53B | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-250-20-30B-TR | ECS Crystal | ECX-53B | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-250-18-30-JEM-TR | ECS Crystal | ECX-53 | 25MHz | -20°C ~ 70°C | 2-SMD, No Lead |
| ECS-250-18-30-JEM-TR | ECS Crystal | ECX-53 | 25MHz | -20°C ~ 70°C | 2-SMD, No Lead |
| ECS-250-18-30-JEM-TR | ECS Crystal | ECX-53 | 25MHz | -20°C ~ 70°C | 2-SMD, No Lead |
| ECS-80-18-30-JGN-TR | ECS Crystal | ECX-53 | 8MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-80-18-30-JGN-TR | ECS Crystal | ECX-53 | 8MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-80-18-30-JGN-TR | ECS Crystal | ECX-53 | 8MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-120-18-30B-JEM-TR | ECS Crystal | ECX-53B | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-120-18-30B-JEM-TR | ECS Crystal | ECX-53B | 12MHz | -20°C ~ 70°C | 贴片晶振 |
| ECS-120-18-30B-JEM-TR | ECS Crystal | ECX-53B | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-10-30B-CKL-TR | ECS Crystal | ECX-53B | 16MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-10-30B-CKL-TR | ECS Crystal | ECX-53B | 16MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| ECS-360-20-30B-TR | ECS Crystal | ECX-53B | 36MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-270-S-30B-TR | ECS Crystal | ECX-53B | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-8-30B-CKM | ECS Crystal | ECX-53B | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-8-30B-CKM | ECS Crystal | ECX-53B | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-8-30B-CKM | ECS Crystal | ECX-53B | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
