短程无线设备应用晶振NX2520SA-24.576000MHZ

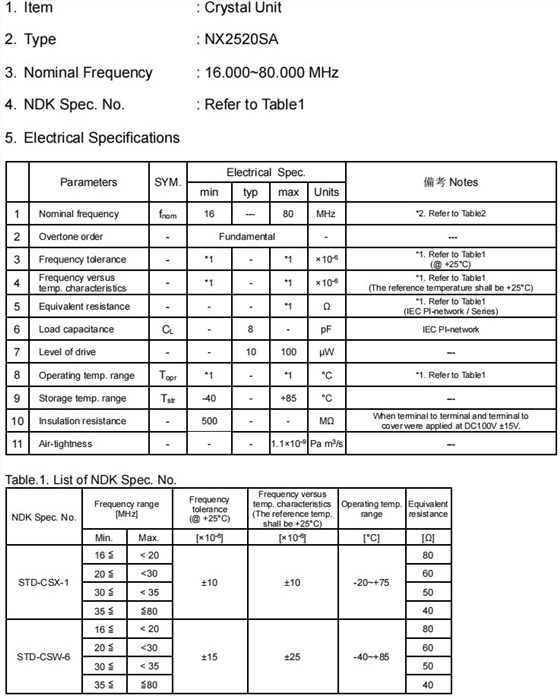

日本电波工业株式NDK晶振，进口晶振型号NX2520SA，是一款小体积晶振尺寸2.5x2.0x0.50mm四脚贴片晶振，石英晶振，无源晶振，晶体谐振器，无铅环保晶振，频率范围：16.000MHz~80.000MHz，具有超小型，轻薄型，优异的耐环境性能，耐热和耐冲击性，回流温度曲线（可用于无铅焊接)，应用于：电信设备，蓝牙石英晶振，短程无线设备，消费电子产品晶振，短程无线设备、Wi-Fi，以及参考时钟源如智能手机和平板电脑等应用。短程无线设备应用晶振NX2520SA-24.576000MHZ

原厂编码	品牌	型号	频率	频率稳定度	包装/封装
NX2520SA-16MHZ-STD-CSW-4	NDK晶振	NX2520SA	16MHz	±15ppm	4-SMD, 贴片晶振
NX2520SA-16.000000MHZ	NDK晶振	NX2520SA	16MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.000000MHZ	NDK晶振	NX2520SA	24MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.000000MHZ-B8	NDK晶振	NX2520SA	24MHz	±10ppm	4-SMD, No Lead
NX2520SA-48.000000MHZ	NDK晶振	NX2520SA	48MHz	±10ppm	4-SMD, No Lead
NX2520SA-16MHZ-EXS00A-CS05116	NDK晶振	NX2520SA	16MHz	±15ppm	4-SMD, No Lead
NX2520SA-25.000M-STD-CSW-5	NDK晶振	NX2520SA	25MHz	±25ppm	4-SMD, No Lead
NX2520SA-26MHZ-STD-CSX-1	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
NX2520SA-26.000000MHZ	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
NX2520SA-30.000000MHZ	NDK晶振	NX2520SA	30MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.576000MHZ	NDK晶振	NX2520SA	24.576MHz	±10ppm	4-SMD, No Lead
NX2520SA-20.000000MHZ	NDK晶振	NX2520SA	20MHz	±10ppm	4-SMD, No Lead
NX2520SA-32.000000MHZ	NDK晶振	NX2520SA	32MHz	±10ppm	4-SMD, No Lead
NX2520SA-44.000000MHZ	NDK晶振	NX2520SA	44MHz	±10ppm	4-SMD, No Lead
NX2520SA-26.000000MHZ-B9	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
EXS00A-CS05400	NDK晶振	NX2520SA	19.2MHz	±30ppm	4-SMD, No Lead
NX2520SA-16MHZ-STD-CSW-5	NDK晶振	NX2520SA	16MHz	±25ppm	4-SMD, No Lead
NX2520SA-16.000000MHZ-W1	NDK晶振	NX2520SA	16MHz	±20ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ-W2	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ-W3	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-26MHZ-EXS00A-CS05497	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead

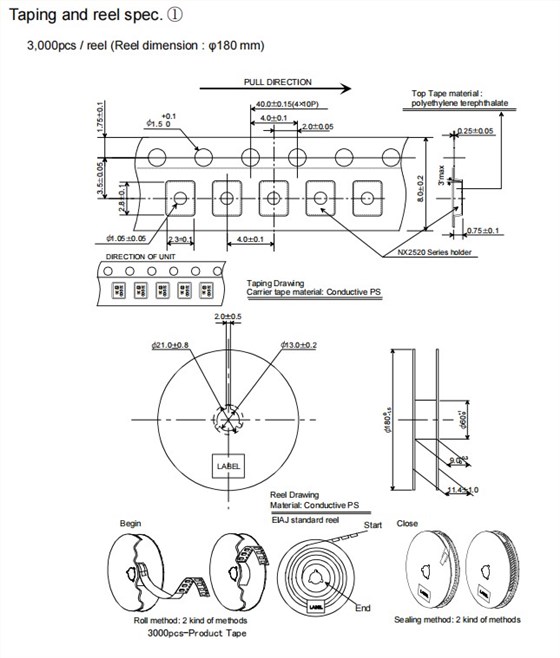

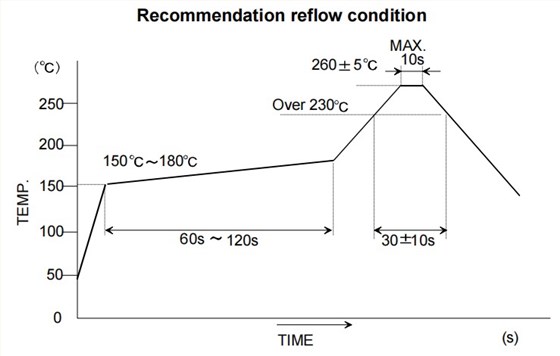

短程无线设备应用晶振NX2520SA-24.576000MHZ，2520mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接（产品无铅对应）,为无铅产品.
