X1G005161000727用于测量机和无线通讯设备的基准时钟

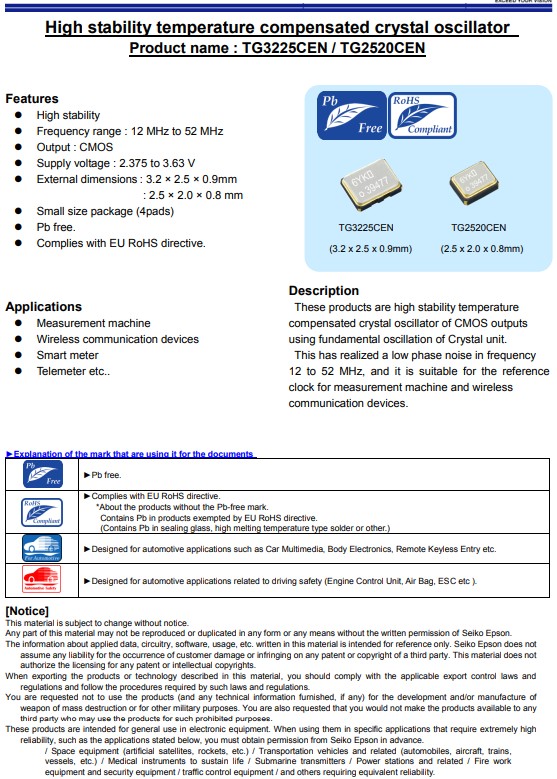

爱普生推出高稳定性温度补偿晶振TG2520CEN，是一款小体积晶振尺寸2.5x2.0mm有源晶振，石英晶体振荡器，四脚贴片晶振，电源电压:2.375V至3.63V，频率范围:12MHz至52MHz，支持CMOS输出的温度补偿晶体振荡器，TG2520CEN有源晶振具有超小型，轻薄型，低抖动，低功耗，低损耗，低耗能，低电源电压，低相位噪声，高稳定性等特点。适用于移动通信，GPS，无线蓝牙，智能电表，遥测仪，测量机和无线通讯设备的基准时钟。

X1G005161000727用于测量机和无线通讯设备的基准时钟

产品编码	型号	频率	贴片晶振	输出波	电源电压	精度	工作温度
X1G005161000227	TG2520CEN	25.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161000727	TG2520CEN	32.000000MHz	2.50x2.00x0.80mm	CMOS	2.500 to 3.300 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161000927	TG2520CEN	27.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001127	TG2520CEN	16.000000MHz	2.50x2.00x0.80mm	CMOS	2.500 to 3.300 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001227	TG2520CEN	25.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001327	TG2520CEN	48.000000MHz	2.50x2.00x0.80mm	CMOS	3.000 to 3.600 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001427	TG2520CEN	20.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001527	TG2520CEN	26.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001927	TG2520CEN	38.400000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161002227	TG2520CEN	12.288000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161002327	TG2520CEN	12.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161002527	TG2520CEN	40.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161002627	TG2520CEN	24.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161002827	TG2520CEN	19.200000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C

X1G005161000727用于测量机和无线通讯设备的基准时钟

现代电子技术日新月异的发展,使得石英晶体振荡器广泛应用于现代通信,导航,测量等领域的电子设备中;工程实际应用中许多设备都工作在温度范围变化较大的环境中,由于石英晶体谐振器自身特殊的物理特性,温度的变化会导致晶体振荡器的频率发生偏移.此时晶体振荡器就不能为设备提供稳定时钟频率,导致工作异常,而经过温度补偿的石英晶体振荡器弥补了这一缺陷,从而其应用更加广泛.
