爱普生晶振为开发和型号替换用户提供SG-8018系列X1G005591027900可编程石英晶振
特别适合对交货周期有严格要求的客户,以及对于新产品开发要求快速响应,包括不常用频率的晶振也能快速批量交付的客户.有效解决中国电子企业在新品研发中经常出现的样品难找、标准频率少、批量供货交期长等难题,满足低成本、大批量、个性化频率定制服务.
爱普生SG-8018系列是新一代石英可编程晶振,爱普生晶振具有低成本、可定制频率、快速交付、高稳定性、宽温级、低功耗、规格丰富等特点,可以替换目前中国市场上大部分常规有源晶振SPXO.

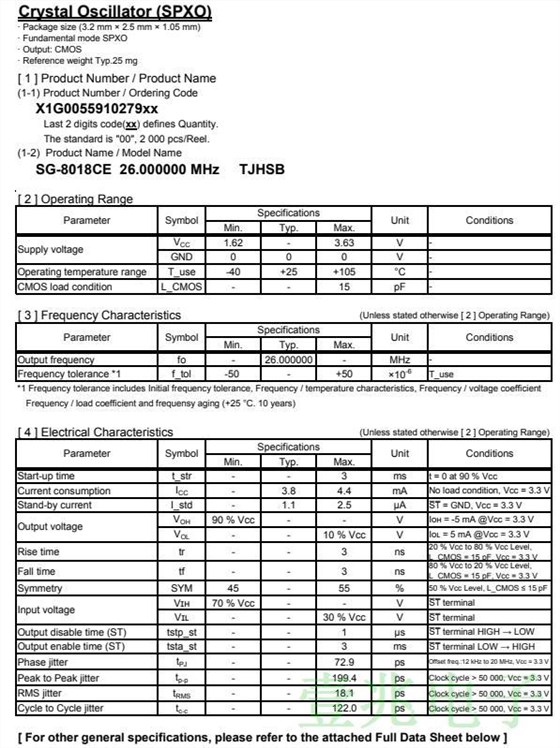

爱普生晶振SG-8018,X1G005591027900可编程石英晶振
爱普生有源晶振编码
型号
频率
长X宽X高
输出波
电源电压
工作温度
频差
最大值
X1G005591027500
SG-8018CE
33.300000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591027600
SG-8018CE
66.667000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591027700
SG-8018CE
15.625000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591027800
SG-8018CE
2.097152MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591027900
SG-8018CE
26.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591028000
SG-8018CE
14.318180MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591028100
SG-8018CE
36.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591028200
SG-8018CE
121.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤6.7mA
X1G005591028300
SG-8018CE
72.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591028400
SG-8018CE
36.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591028500
SG-8018CE
33.333000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591028600
SG-8018CE
120.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤6.7mA
X1G005591028700
SG-8018CE
12.582900MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591028800
SG-8018CE
26.664000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591028900
SG-8018CE
33.333333MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591029000
SG-8018CE
8.890000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591029100
SG-8018CE
20.160000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591029200
SG-8018CE
47.500000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591029300
SG-8018CE
11.400000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591029400
SG-8018CE
52.500000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591029500
SG-8018CE
12.600000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591029600
SG-8018CE
66.666600MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591029700
SG-8018CE
25.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591029800
SG-8018CE
10.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
用户可以在以下参数内任选自己需要的样品（数量≤10Pcs,特殊需求另议）:
?尺寸:7050、5032、3225、2520
?频率:0.67~170MHz范围内任意频率
?电压:1.8V,2.5V,3.3V(1.62V~3.63V)
?精度:50ppm（已包含十年内老化率）
?工作温度:-40℃~+105℃
?功能:使能(OE)或待机(ST)
?输出方式:CMOS
爱普生进一步达成合作,日本进口晶振确定将国内第一套SG-8018系列有源晶振全自动烧录、检测、激光刻字、编带设备落户于综合基地正式投入批量生产.这将大幅度缩短有源晶振的交付时间,由目前的8~12周缩短为3个工作日.
爱普生晶振SG-8018,X1G005591027900可编程石英晶振
