FDQ系列是汽车应用的理想参考时钟,FDC500026,FD0180008,晶体振荡器,ECERA品牌

我们的晶体振荡器(CXO)提供高价值、卓越的性能和功能以及卓越的品质和服务。我们为批量生产提供快速周转样品、响应式技术支持和快速交货时间。提供多种类型和特性：
1) 尺寸从7x5mm到2.0x1.6mm，
2) 传统CXO的温度稳定性为 ±5PPM，
3) CMOS/TTL、LVPECL、LVDS、HCSL的输出逻辑格式，和慢性粒细胞白血病。
我们的CXO被领先制造商用于各种要求苛刻的应用，从消费类到工业、汽车(AEC-Q200/AEC-Q104)、网络、存储、计算、电信等。
SMD晶体振荡器(CXO)详细信息：
Diodes Incorporated与SaRonix-eCera进行了独特的垂直整合，用于陶瓷封装振荡器的专有大容量自动化生产
输出频率高达670MHz，总寿命精度为±20ppm
提供5V、3.3V、2.5V和1.8V产品
专利XP技术，用于经济高效的高频、低抖动时钟电路
VCXO控制电压功能，用于与另一个时钟或数据信号同步
Diodes Incorporated时钟和VCXO IC可缩短交货时间并降低成本

使用ASSP XO振荡器快速获得成熟的技术

FDQ系列是汽车应用的理想参考时钟,FDC500026,FD0180008,晶体振荡器,ECERA品牌

HX3127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C

FDQ系列是汽车应用的理想参考时钟,FDC500026,FD0180008,晶体振荡器,ECERA品牌

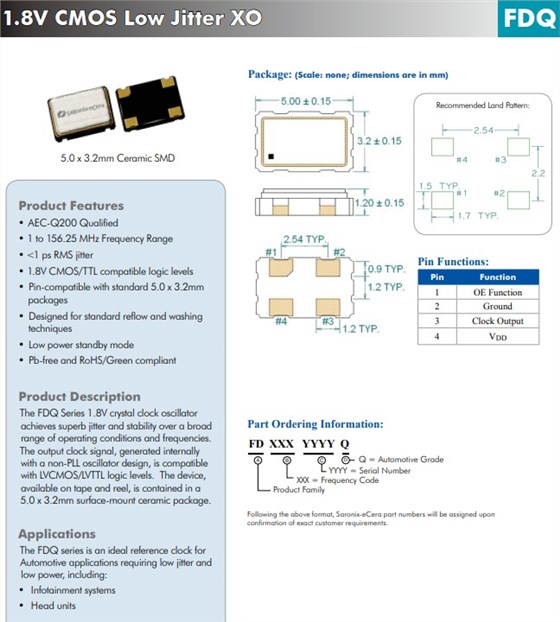

FDQ系列1.8V时钟晶体振荡器可在广泛的工作条件和频率范围内实现出色的抖动和稳定性，汽车级CMOS晶体振荡器，使用非PLL振荡器设计在内部生成的输出时钟信号与LVCMOS/LVTTL逻辑电平兼容。该器件采用卷带包装，采用5.0x3.2mm表面贴装陶瓷封装。

产品特点：
符合AEC-Q200标准 汽车电子晶振
1 至 156.25MHz频率范围
<1 ps RMS抖动
1.8V CMOS/TTL兼容逻辑电平
与标准5.0x3.2mm封装引脚兼容
专为标准回流和清洗技术而设计
低功耗待机模式
无铅且符合RoHS/Green 标准
应用：FDQ系列是需要低抖动和低功耗的汽车应用的理想参考时钟，包括：信息娱乐系统，主机

NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C

Product Parameters

Subfamily	General XO
Product Series	FDQ
Compliance(Only Automotive supports PPAP)	Automotive
Freq Range (MHz)	1 to 135
Jitter RMS (ps)	<1
Stability (PPM)	20to50
Package Size (mm)	5.0 x 3.2
PkgType	Ceramic Seam
Output Logic	CMOS
Supply Voltage (V)	1.8
Pads	4

FDQ系列是汽车应用的理想参考时钟,FDC500026,FD0180008,晶体振荡器,ECERA品牌

产品参数：

亚科 XO将军
产品系列 FDQ
合规性（仅汽车支持 PPAP）汽车
频率范围 1MHz到135MHz
抖动均方根 (ps) <1
稳定性 20到50PPM
包装尺寸 5.0x3.2mm 有源晶振
包装类型陶瓷缝
输出逻辑 CMOS
电源电压 1.8V
垫 4

NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C

DIODES百利通亚陶晶振所生产的石英晶振,贴片晶振,有源晶体振荡器,压电石英晶体元器件、压电石英晶体、有源晶体广泛应用于智能设备,汽车电子,无线通讯,网络通信,精密仪器,GPS卫星,网络控制器,全球GPS定位系统等领域.工程、销售、仓储和物流办事处设在台北,香港、曼彻斯特、上海、深圳、中国、韩国、慕尼黑、德国、以及世界各地的支持办事处.
