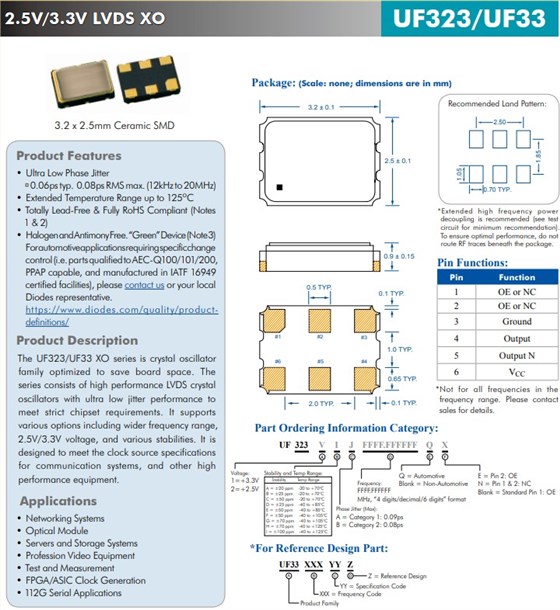

百利通亚陶晶振UF323/UF33 XO系列是经过优化的晶体振荡器系列，可节省电路板空间。该系列由具有超低抖动性能的高性能LVDS晶体振荡器组成，可满足严格的芯片组要求。它支持多种选择，包括更宽的频率范围、2.5V/3.3V电压和各种稳定性。它旨在满足通信系统和其他高性能设备的时钟源规范。
特征：
超低相位抖动石英晶振
0.06ps 典型值。0.08ps RMS最大值（12kHz至20MHz）
扩展温度范围高达125℃
完全无铅且完全符合RoHS标准
不含卤素和锑。“绿色”设备
应用程序：
网络系统
光模块
服务器和存储系统
专业视频设备
测试与测量
FPGA/ASIC时钟生成
112G 串行应用
高性能LVDS晶体振荡器UF323/UF33 XO系列,UF3231FB0156.250000,振荡器,ECERA小体积晶振
NX7021D0622.080000
Diodes Incorporated
SaRonix-eCera™ NX
622.08MHz
±25ppm
-40°C ~ 85°C
NX7021D0622.080000
Diodes Incorporated
SaRonix-eCera™ NX
622.08MHz
±25ppm
-40°C ~ 85°C
NX7021D0622.080000
Diodes Incorporated
SaRonix-eCera™ NX
622.08MHz
±25ppm
-40°C ~ 85°C
NX7031D0644.531250
Diodes Incorporated
SaRonix-eCera™ NX
644.53125MHz
±25ppm
-40°C ~ 85°C
NX7031D0644.531250
Diodes Incorporated
SaRonix-eCera™ NX
644.53125MHz
±25ppm
-40°C ~ 85°C
NX7031D0644.531250
Diodes Incorporated
SaRonix-eCera™ NX
644.53125MHz
±25ppm
-40°C ~ 85°C
WF7021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF7021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF7021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF9021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF9021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF9021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
KD3270040
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270040
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270040
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270046Z
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270046Z
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270046Z
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
JX5011C0056.000000
Diodes Incorporated
SaRonix-eCera™ JX
56MHz
±50ppm
-20°C ~ 70°C
JX5011C0056.000000
Diodes Incorporated
SaRonix-eCera™ JX
56MHz
±50ppm
-20°C ~ 70°C
JX5011C0056.000000
Diodes Incorporated
SaRonix-eCera™ JX
56MHz
±50ppm
-20°C ~ 70°C
KK3270050
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270050
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270050
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
JT255CF0026.000000
Diodes Incorporated
SaRonix-eCera™ JT
26MHz
±500ppb
-30°C ~ 85°C
JT255CF0026.000000
Diodes Incorporated
SaRonix-eCera™ JT
26MHz
±500ppb
-30°C ~ 85°C
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| FRBST1061 | Diodes Incorporated | SaRonix-eCera™ FR | 61.44MHz | ±50ppm | -40°C ~ 85°C |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm | -40°C ~ 85°C |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm | -40°C ~ 85°C |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm | -40°C ~ 85°C |
| KM3270004 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| FK2500021 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 85°C |
| FN4000159 | Diodes Incorporated | SaRonix-eCera™ FN | 40MHz | ±50ppm | -40°C ~ 85°C |
| FK0800003 | Diodes Incorporated | SaRonix-eCera™ FK | 8MHz | ±50ppm | -20°C ~ 70°C |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm | -40°C ~ 85°C |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm | -40°C ~ 85°C |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm | -40°C ~ 85°C |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 85°C |
| FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 85°C |
| FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm | -40°C ~ 85°C |
| FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm | -40°C ~ 85°C |
| FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm | -20°C ~ 70°C |
| FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm | -20°C ~ 70°C |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm | -20°C ~ 70°C |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm | -20°C ~ 70°C |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm | -20°C ~ 70°C |
| FK1200011 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±50ppm | -40°C ~ 85°C |

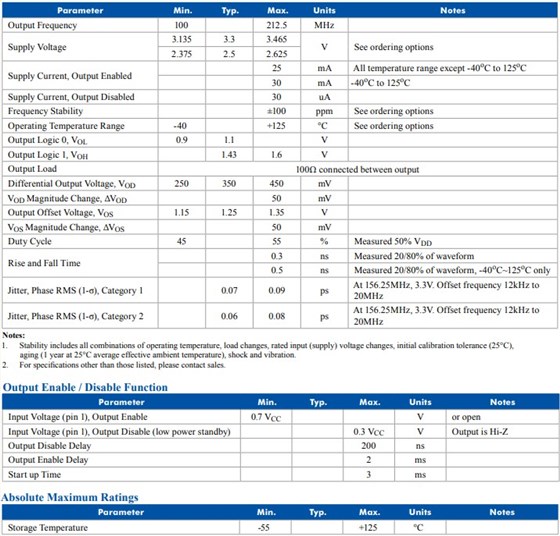

Product Parameters
