HXQ-CMOS系列汽车级高温CMOS晶体振荡器,HX2513F0026.000000,汽车电子晶振,ECERA晶振

晶体振荡器(XO)-汽车，我们的汽车兼容晶体振荡器(XO)旨在满足汽车应用的严格要求，并在其部件号中以“Q”区分。它们是在经过严格IATF 16949标准认证的设施中制造的，并且能够根据VDA6.3进行客户审核。这些零件均受 PPAP（生产零件批准流程）文档支持，从而满足汽车电子行业的所有要求。
此外，车载级晶振，所有符合汽车标准的晶体振荡器(XO)均已使用AECQ-200和QAP-81进行了认证，以涵盖石英谐振器和XO IC，而不是使用AEC-Q100（仅针对 IC 定义）。我们计划在2021年开始为我们新的符合汽车标准的 XO 产品逐步采用AECQ-104认证标准，但它不会将以前符合 AECQ-200+QAP-81的产品重新认证为AEC-Q104（AECQ-200+QAP-81资格标准和AECQ-0104资格标准是测试数量和添加X射线检查）。

HXQ-CMOS系列汽车级高温CMOS晶体振荡器,HX2513F0026.000000,汽车电子晶振,ECERA晶振

Manufacturer Part Number原厂代码	Manufacturer品牌	Series型号	Frequency 频率	Frequency Stability频率稳定度	Operating Temperature 工作温度
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-20°C ~ 70°C
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-20°C ~ 70°C
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-20°C ~ 70°C
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm	-20°C ~ 70°C
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm	-20°C ~ 70°C
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm	-20°C ~ 70°C
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-10°C ~ 70°C
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-10°C ~ 70°C
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-10°C ~ 70°C
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm	-30°C ~ 85°C
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm	-30°C ~ 85°C
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm	-30°C ~ 85°C
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm	-20°C ~ 70°C
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm	-20°C ~ 70°C
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm	-20°C ~ 70°C
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm	-40°C ~ 85°C
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm	-40°C ~ 85°C
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm	-40°C ~ 85°C
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C
FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C

HXQ-CMOS系列汽车级高温CMOS晶体振荡器,HX2513F0026.000000,汽车电子晶振,ECERA晶振

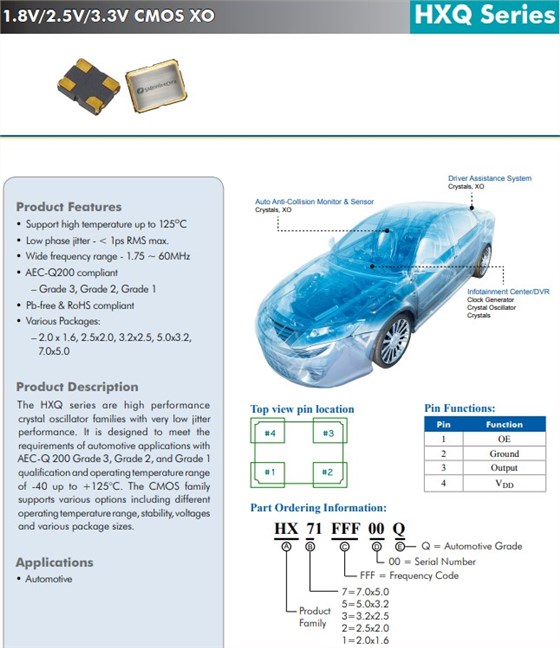

HXQ-CMOS-系列3225，1.8V/2.5V/3.3V、3.2x2.5mm、汽车级、高温CMOS晶体振荡器，HXQ系列是具有极低抖动的高性能SMD晶体振荡器系列.它旨在满足汽车应用的要求，AEC-Q200 3级、2级和1级认证和工作温度范围，-40℃至+125℃。CMOS系列支持各种选项，包括不同的，工作温度范围、稳定性、电压和各种封装尺寸。

产品特点：
支持高达125℃的高温
低相位抖动 - < 1ps RMS最大值。
宽频率范围 - 1.75 ~ 60MHz
符合 AEC-Q200 标准
– 3 级、2 级、1 级
无铅且符合 RoHS 标准
各种软件包：2.0x1.6、2.5x2.0、3.2x2.5、5.0x3.2、7.0x5.0mm
应用于汽车

FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm	-40°C ~ 105°C
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm	-40°C ~ 105°C
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm	-40°C ~ 105°C
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm	-40°C ~ 105°C
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm	-40°C ~ 105°C
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm	-40°C ~ 105°C
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-20°C ~ 70°C
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-20°C ~ 70°C
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-20°C ~ 70°C
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm	-20°C ~ 70°C
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm	-20°C ~ 70°C
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm	-20°C ~ 70°C
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm	-40°C ~ 85°C
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm	-40°C ~ 85°C
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm	-40°C ~ 85°C
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-20°C ~ 70°C
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-20°C ~ 70°C
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-20°C ~ 70°C
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm	-40°C ~ 85°C
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm	-40°C ~ 85°C
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm	-40°C ~ 85°C
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm	-40°C ~ 105°C
HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm	-40°C ~ 105°C

Product Parameters

Subfamily	High Temp XO
Product Series	HXQ-CMOS
Compliance(Only Automotive supports PPAP)	Automotive
Freq Range (MHz)	1 to 135 (1.8V); 1 to 162 (2.5V/3.3V)
Jitter RMS (ps)	<1 ps RMS
Stability (PPM)	20to50
Package Size (mm)	3.2 x 2.5
PkgType	Ceramic Seam
Output Logic	CMOS
Supply Voltage (V)	3.3, 2.5, 1.8
Pads	4

HXQ-CMOS系列汽车级高温CMOS晶体振荡器,HX2513F0026.000000,汽车电子晶振,ECERA晶振

产品参数:
亚科高温XO
产品系列 HXQ-CMOS
合规性（仅汽车支持 PPAP）汽车
频率范围 (MHz) 1至135 (1.8V); 1至162 (2.5V/3.3V)
抖动均方根 (ps) <1 ps RMS
稳定性 20PPM到50PPM
包装尺寸 3.2x2.5mm 有源晶振
包装类型陶瓷缝
输出逻辑 CMOS
电源电压 3.3V, 2.5V, 1.8V
垫 4

HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm	-40°C ~ 105°C
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-20°C ~ 70°C
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-20°C ~ 70°C
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-20°C ~ 70°C
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-40°C ~ 85°C
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-40°C ~ 85°C
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-40°C ~ 85°C
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm	-20°C ~ 70°C
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm	-20°C ~ 70°C
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm	-20°C ~ 70°C
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-40°C ~ 85°C
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-40°C ~ 85°C
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-40°C ~ 85°C
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-40°C ~ 85°C
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-40°C ~ 85°C
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-40°C ~ 85°C
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm	-20°C ~ 70°C
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm	-20°C ~ 70°C
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm	-20°C ~ 70°C
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm	-40°C ~ 85°C
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm	-40°C ~ 85°C
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm	-40°C ~ 85°C
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm	-40°C ~ 85°C
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm	-40°C ~ 85°C
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm	-40°C ~ 85°C
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm	-40°C ~ 105°C
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm	-40°C ~ 105°C
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm	-40°C ~ 105°C
HX31330001	Diodes Incorporated	SaRonix-eCera™ HX	33MHz	±50ppm	-40°C ~ 90°C
HX31330001	Diodes Incorporated	SaRonix-eCera™ HX	33MHz	±50ppm	-40°C ~ 90°C
HX31330001	Diodes Incorporated	SaRonix-eCera™ HX	33MHz	±50ppm	-40°C ~ 90°C
HX3212F0040.000000	Diodes Incorporated	SaRonix-eCera™ HX	40MHz	±50ppm	-40°C ~ 105°C
HX3212F0040.000000	Diodes Incorporated	SaRonix-eCera™ HX	40MHz	±50ppm	-40°C ~ 105°C
HX3212F0040.000000	Diodes Incorporated	SaRonix-eCera™ HX	40MHz	±50ppm	-40°C ~ 105°C
SX10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SX10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SX10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
HX3127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX3127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX3127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C

HXQ-CMOS系列汽车级高温CMOS晶体振荡器,HX2513F0026.000000,汽车电子晶振,ECERA晶振

HXQ-CMOS-系列 3225 20~50 3.2 x 2.5 CMOS 3.32.51.8 4 1.8V/2.5V/3.3V、3.2x2.5mm、汽车级、高温CMOS晶体振荡器
HXQ-CMOS-系列 2016 20~50 2.0 x 1.6 CMOS 3.32.51.8 4 1.8V/2.5V/3.3V、2.0x1.6mm、汽车级、高温CMOS晶体振荡器
HXQ-CMOS-系列 2520 20~50 2.5 x 2.0 CMOS 3.32.51.8 4 1.8V/2.5V/3.3V、2.5x2.0mm、汽车级、高温CMOS晶体振荡器
HXQ-CMOS-系列 5032 20~50 5.0 x 3.2 CMOS 3.32.51.8 4 1.8V/2.5V/3.3V、5.0x3.2mm、汽车级、高温CMOS晶体振荡器
HXQ-CMOS-系列 7050 20~50 7.0 x 5.0 CMOS 3.32.51.8 4 1.8V/2.5V/3.3V、7.0x5.0mm、汽车级、高温CMOS晶体振荡器
HXQ-LVDS-系列 3225 20~50 3.2 x 2.5 LVDS 3.32.5 6 2.5V/3.3V、3.2x2.5mm、汽车级、高温 LVDS 晶体振荡器
HXQ-LVDS-系列 5032 20~50 5.0 x 3.2 LVDS 3.32.5 6 2.5V/3.3V、5.0x3.2mm、汽车级、高温 LVDS 晶体振荡器
HXQ-LVDS-系列 7050 20~50 7.0 x 5.0 LVDS 3.32.5 6 2.5V/3.3V、7.0x5.0mm、汽车级、高温 LVDS 晶体振荡器
HXQ-LVPECL-系列 3225 20~50 3.2 x 2.5 LVPECL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、汽车级、高温 LVPECL 晶体振荡器
HXQ-LVPECL-5032系列 20~50 5.0 x 3.2 LVPECL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、汽车级、高温 LVPECL 晶体振荡器
HXQ-LVPECL-7050系列 20~50 7.0 x 5.0 LVPECL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、汽车级、高温 LVPECL 晶体振荡器
