XR20系列超小型晶振,XR20L3H26.0000A2F,2016mm晶振,石英晶体谐振器,ECERA石英晶体

我们提供全面的石英晶体谐振器产品组合。我们广泛的行业标准封装选择包括陶瓷表面贴装、HC-49/U、金属表面贴装、管状和塑料模制。这些晶体在电子应用中充当主要组件
亚陶晶振XR20系列接缝密封装置包括封装在标准的2.0x1.6mm毫米陶瓷中包裹，超小型晶振，这些设备是地面的理想选择,安装在人口密集或小尺寸PCB应用中。为高可靠性而设计和制造，XR20系列符合超声波的要求焊接制造过程以及行业标准跌落测试。该系列非常适合为高性能的应用提供精确的定时可靠性是必须的。该系列支持操作温度范围为-40℃至+125℃。

XR20系列超小型晶振,XR20L3H26.0000A2F,2016mm晶振,石英晶体谐振器,ECERA石英晶体

NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX72F6214Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C

XR20系列超小型晶振,XR20L3H26.0000A2F,2016mm晶振,石英晶体谐振器,ECERA石英晶体

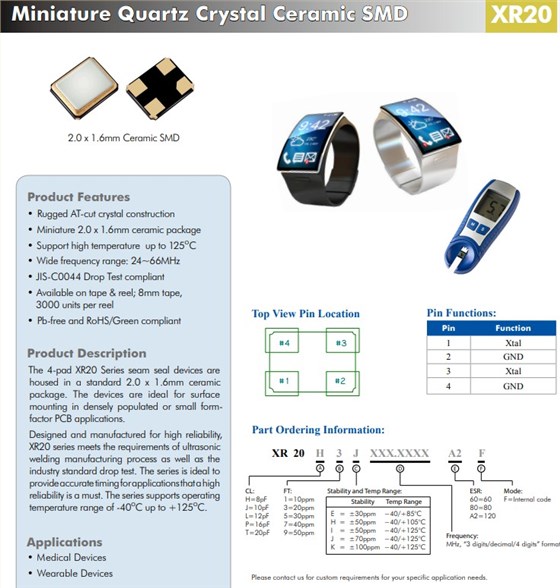

产品特性：
