XR32系列接缝密封SMD,XR32H1I026.000060Q,无源晶振,3225mm晶振,ECERA晶振

石英晶体谐振器是一种生活中随处可见的电子器件，诞生于20世纪20年代初，因具有较高的品质因数及良好的频率稳定性，被广泛应用于航天、通信、军事等工业领域。顾名思义，制造石英晶体谐振器的原材料就是石英，一种非常重要的压电材料。其主要特征是其原子或分子有规律排列，反映在宏观上是外形的对称性，在电场的作用下，晶体内部产生应力而形变，从而产生机械振动，获得特定的频率。

百利通亚陶晶振4焊盘 XR32系列接缝密封装置采用标准3.2x2.5mm陶瓷封装。这些器件非常适合在人口密集或小型PCB应用中进行表面贴装。XR32系列专为高可靠性而设计和制造，满足超声波焊接制造工艺以及行业标准跌落测试的要求。该系列非常适合为需要高可靠性的应用提供准确的时序。该系列支持-40℃至+125℃的工作温度范围。

XR32系列接缝密封SMD,XR32H1I026.000060Q,无源晶振,3225mm晶振,ECERA晶振

HX3127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C

XR32系列接缝密封SMD,XR32H1I026.000060Q,无源晶振,3225mm晶振,ECERA晶振

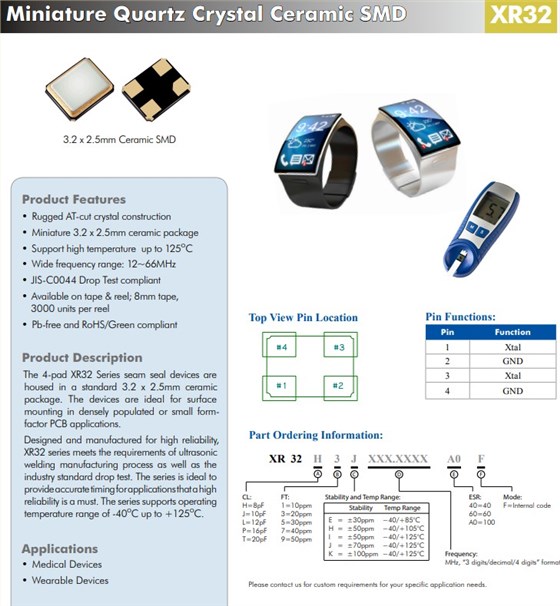

特征：
