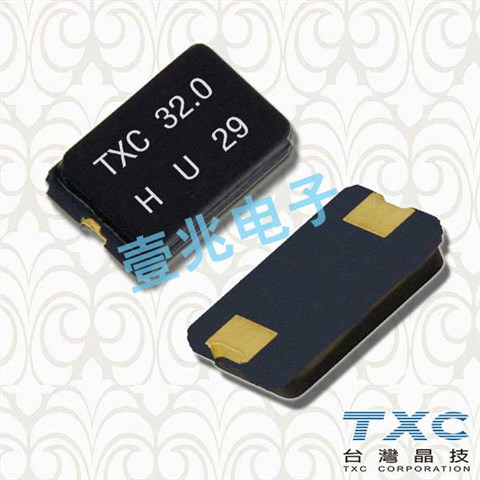

7A14300007,5032进口贴片晶振,台晶晶振

产品简介

7A14300007,5032进口贴片晶振,台晶晶振 ，编码：7A14300007，型号：7A，工作温度：-40°C ~ 85°，尺寸：5.0mm*3.2mm，频率：14.31818MHz，精度：±30ppm，负载电容：20pF，石英晶体谐振器，进口晶振，TXC晶振，贴片晶体，石英晶振，石英晶体晶振，焊盘SMD玻璃密封晶体单元，高可靠的环境性能，可提供精密公差和稳定性零件，设计用于自动安装和回流焊接，成本合理，交货性能好，便携式电脑、PDA、DSC和USB接口卡的最佳选择，RoHS指令豁免密封玻璃中的含铅量

产品详情

7A14300007,5032进口贴片晶振,台晶晶振，编码：7A14300007，型号：7A，工作温度：-40°C ~ 85°，尺寸：5.0mm*3.2mm，频率：14.31818MHz，精度：±30ppm，负载电容：20pF，石英晶体谐振器，进口晶振，TXC晶振，贴片晶体，石英晶振，石英晶体晶振，焊盘SMD玻璃密封晶体单元，高可靠的环境性能，可提供精密公差和稳定性零件，设计用于自动安装和回流焊接，成本合理，交货性能好，便携式电脑、PDA、DSC和USB接口卡的最佳选择，RoHS指令豁免密封玻璃中的含铅量。

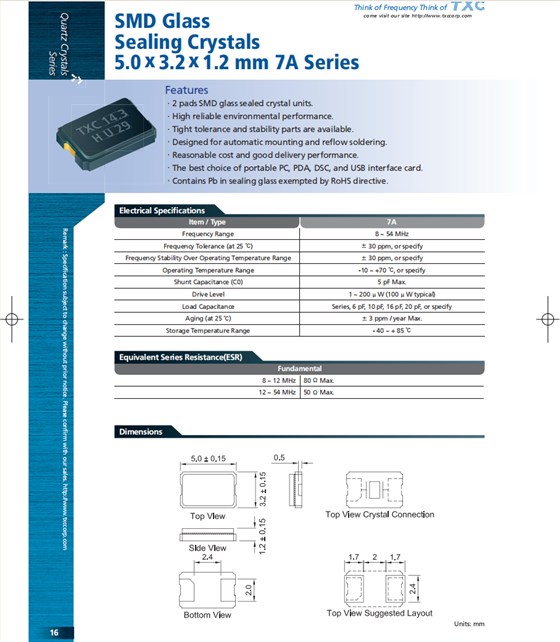

7A14300007,5032进口贴片晶振,台晶晶振，参数表

编码	7A14300007
品牌	TXC
型号	7A
频率	14.31818MHz
精度	±30ppm
负载电容	20pF
工作温度	-40°C ~ 85°
尺寸	5.0mm*3.2mm

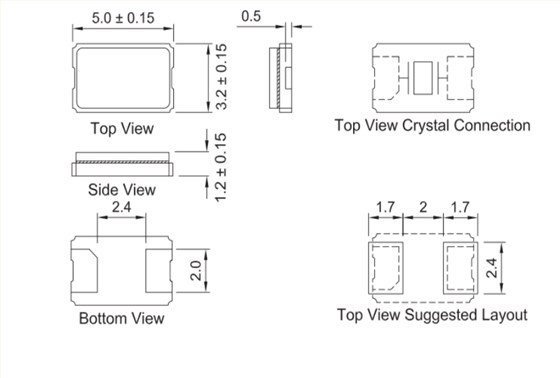

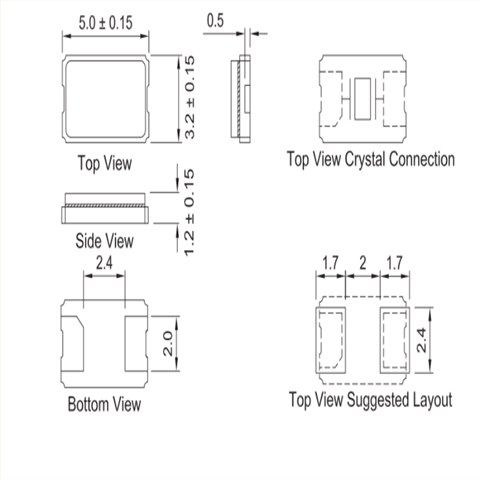

7A14300007,5032进口贴片晶振,台晶晶振，尺寸图

Mfr Part #	石英晶体晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
7A-26.000MAAJ-T	TXC CORPORATION	7A	26MHz	±30ppm	18pF	-20°C ~ 70°C
7A-16.000MAAE-T	TXC CORPORATION	7A	16MHz	±30ppm	12pF	-20°C ~ 70°C
7A-13.560MAAE-T	TXC CORPORATION	7A	13.56MHz	±30ppm	12pF	-20°C ~ 70°C
7A-32.000MAAQ-T	TXC CORPORATION	7A	32MHz	±30ppm	10pF	-20°C ~ 70°C
7A-33.333333MAAQ-T	TXC CORPORATION	7A	33.333333MHz	±30ppm	10pF	-20°C ~ 70°C
7A-29.4912MAAJ-T	TXC CORPORATION	7A	29.4912MHz	±30ppm	18pF	-20°C ~ 70°C
7A-13.560MAAJ-T	TXC CORPORATION	7A	13.56MHz	±30ppm	18pF	-20°C ~ 70°C
7A-16.000MAHE-T	TXC CORPORATION	7A	16MHz	±30ppm	12pF	-40°C ~ 85°C
7A-12.000MAAE-T	TXC CORPORATION	7A	12MHz	±30ppm	12pF	-20°C ~ 70°C
7A-40.000MAHE-T	TXC CORPORATION	7A	40MHz	±30ppm	12pF	-40°C ~ 85°C
7A08000001	TXC CORPORATION	7A	8MHz	±20ppm	20pF	-10°C ~ 70°C
7A08000005	TXC CORPORATION	7A	8MHz	±30ppm	12pF	-10°C ~ 70°C
7A08000008	TXC CORPORATION	7A	8MHz	±30ppm	20pF	-40°C ~ 85°C
7A08000015	TXC CORPORATION	7A	8MHz	±20ppm	8pF	-30°C ~ 85°C
7A08070006	TXC CORPORATION	7A	8MHz	±20ppm	18pF	-40°C ~ 85°C
7A08070008	TXC CORPORATION	7A	8MHz	±20ppm	18pF	-40°C ~ 85°C
7A10000046	TXC CORPORATION	7A	10MHz	±50ppm	18pF	-40°C ~ 85°C
7A11000013	TXC CORPORATION	7A	11.0592MHz	±30ppm	20pF	-10°C ~ 70°C
7A12000001	TXC CORPORATION	7A	12MHz	±20ppm	16pF	-30°C ~ 85°C
7A12000007	TXC CORPORATION	7A	12MHz	±20ppm	8pF	-10°C ~ 70°C
7A12000008	TXC CORPORATION	7A	12MHz	±30ppm	18pF	-20°C ~ 70°C
7A12000026	TXC CORPORATION	7A	12MHz	±30ppm	16pF	-10°C ~ 70°C
7A12000044	TXC CORPORATION	7A	12MHz	±30ppm	20pF	-10°C ~ 70°C
7A12000062	TXC CORPORATION	7A	12MHz	±20ppm	18pF	-10°C ~ 70°C
7A12020001	TXC CORPORATION	7A	12MHz	±30ppm	18pF	-40°C ~ 85°C
7A12070002	TXC CORPORATION	7A	12MHz	±30ppm	18pF	-20°C ~ 70°C
7A12070007	TXC CORPORATION	7A	12MHz	±30ppm	18pF	-20°C ~ 70°C
7A14300007	TXC CORPORATION	7A	14.31818MHz	±30ppm	20pF	-40°C ~ 85°C
7A14700010	TXC CORPORATION	7A	14.7456MHz	±30ppm	20pF	-10°C ~ 70°C
7A16000003	TXC CORPORATION	7A	16MHz	±20ppm	12pF	-40°C ~ 85°C
7A16000040	TXC CORPORATION	7A	16MHz	±30ppm	18pF	-20°C ~ 70°C
7A18400011	TXC CORPORATION	7A	18.432MHz	±25ppm	16pF	-10°C ~ 70°C
7A18470001	TXC CORPORATION	7A	18.432MHz	±30ppm	18pF	-20°C ~ 70°C
