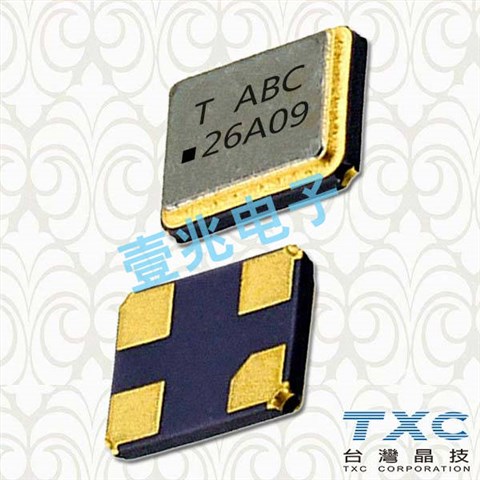

TXC温补有源晶振,8P-37.400MBG-T进口贴片晶振

TXC温补有源晶振,8P-37.400MBG-T进口贴片晶振，编码：8P-37.400MBG-T，型号：8P，工作温度：-30°C ~ 85°，尺寸：1.6mm*1.2mm，频率：37.4 MHz，精度：±500ppb，电压：3.3V，电流：2mA，贴片石英晶振1612 ，石英晶体振荡器，高精度温补晶振，TCXO晶振，具有低抖动，低衰减，低相噪，低电平，低功耗，低电压，高性能特点，产品广泛应用于平板电脑，无线电话，网络设备，工业设备，手机导航，GPS，智能家具家电，数码电子，消费产品。

TXC温补有源晶振,8P-37.400MBG-T进口贴片晶振，参数表

编码	8P-37.400MBG-T
品牌	TXC
型号	8P
频率	37.4 MHz
精度	±500ppb
电压	3.3V
电流	2mA
工作温度	-30°C ~ 85°
尺寸	1.6mm*1.2mm

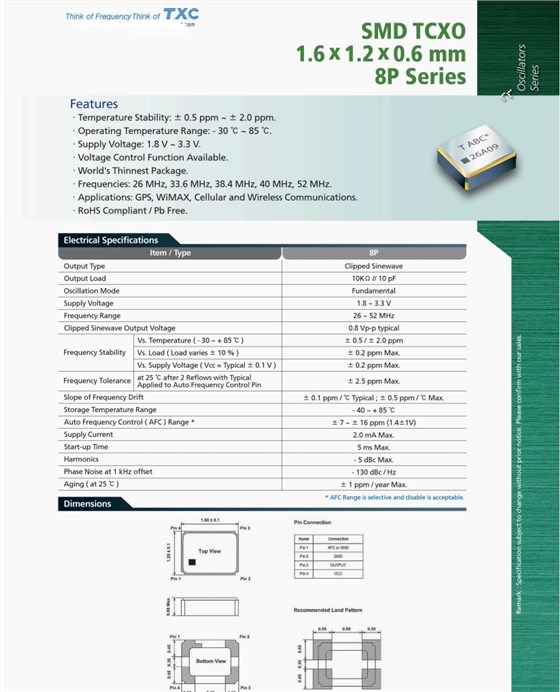

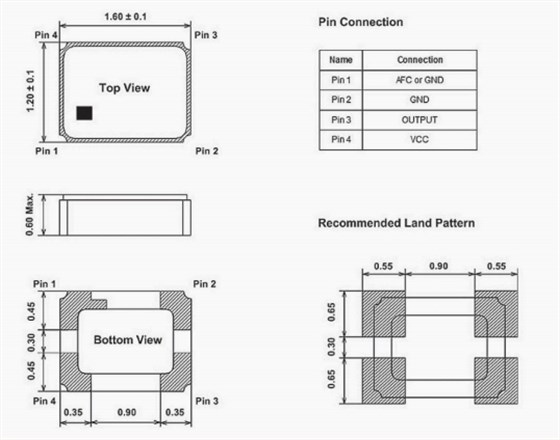

TXC温补有源晶振,8P-37.400MBG-T进口贴片晶振，尺寸图

Mfr Part #	温度补偿晶振	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability
8W48070002	TXC CORPORATION	8W	XO (Standard)	48.0048 MHz	CMOS	3.3V	±20ppm
8W-24.000MBE-T	TXC CORPORATION	8W	XO (Standard)	24 MHz	CMOS	3.3V	±50ppm
8W-26.000MBE-T	TXC CORPORATION	8W	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm
8W-13.000MBE-T	TXC CORPORATION	8W	XO (Standard)	13 MHz	CMOS	3.3V	±50ppm
8W-20.000MBE-T	TXC CORPORATION	8W	XO (Standard)	20 MHz	CMOS	3.3V	±50ppm
8W48070009	TXC CORPORATION	8W	XO (Standard)	48 MHz	CMOS	1.62V ~ 3.63V	±25ppm
8W54070004	TXC CORPORATION	8W	XO (Standard)	54 MHz	CMOS	3.3V	±25ppm
8W49170004	TXC CORPORATION	8W	XO (Standard)	49.152 MHz	CMOS	3.3V	±25ppm
8W48070007	TXC CORPORATION	8W	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm
8W54070002	TXC CORPORATION	8W	XO (Standard)	54 MHz	CMOS	3.3V	±50ppm
8W62570006	TXC CORPORATION	8W	XO (Standard)	62.5 MHz	CMOS	3.3V	±50ppm
8W-12.000MBD-T	TXC CORPORATION	8W	XO (Standard)	12 MHz	CMOS	3.3V	±25ppm
8W-12.288MBD-T	TXC CORPORATION	8W	XO (Standard)	12.288 MHz	CMOS	3.3V	±25ppm
8W-19.200MBD-T	TXC CORPORATION	8W	XO (Standard)	19.2 MHz	CMOS	3.3V	±25ppm
8W-24.576MBD-T	TXC CORPORATION	8W	XO (Standard)	24.576 MHz	CMOS	3.3V	±25ppm
8W-25.000MBD-T	TXC CORPORATION	8W	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm
8W-32.000MBD-T	TXC CORPORATION	8W	XO (Standard)	32 MHz	CMOS	3.3V	±25ppm
8W-40.000MBD-T	TXC CORPORATION	8W	XO (Standard)	40 MHz	CMOS	3.3V	±25ppm
8W-13.000MBD-T	TXC CORPORATION	8W	XO (Standard)	13 MHz	CMOS	3.3V	±25ppm
8W-16.000MBD-T	TXC CORPORATION	8W	XO (Standard)	16 MHz	CMOS	3.3V	±25ppm
8W-27.000MBD-T	TXC CORPORATION	8W	XO (Standard)	27 MHz	CMOS	3.3V	±25ppm
8W-48.000MBD-T	TXC CORPORATION	8W	XO (Standard)	48 MHz	CMOS	3.3V	±25ppm
8W-50.000MBD-T	TXC CORPORATION	8W	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
8W-60.000MBD-T	TXC CORPORATION	8W	XO (Standard)	60 MHz	CMOS	3.3V	±25ppm
8W-36.000MBA-T	TXC CORPORATION	8W	XO (Standard)	36 MHz	CMOS	3.3V	±25ppm
8P-52.000MBS-T	TXC CORPORATION	8P	VCTCXO	52 MHz	Clipped Sine Wave	3.3V	±2ppm
8P-26.000MBS-T	TXC CORPORATION	8P	VCTCXO	26 MHz	Clipped Sine Wave	3.3V	±2ppm
8P-26.000MCS-T	TXC CORPORATION	8P	VCTCXO	26 MHz	Clipped Sine Wave	2.5V	±2ppm
8P-26.000MDS-T	TXC CORPORATION	8P	VCTCXO	26 MHz	Clipped Sine Wave	1.8V	±2ppm
8P-26.000MBG-T	TXC CORPORATION	8P	TCXO	26 MHz	Clipped Sine Wave	3.3V	±500ppb
8P-26.000MCG-T	TXC CORPORATION	8P	TCXO	26 MHz	Clipped Sine Wave	2.5V	±500ppb
8P-26.000MDG-T	TXC CORPORATION	8P	TCXO	26 MHz	Clipped Sine Wave	1.8V	±500ppb
8P-37.400MBG-T	TXC CORPORATION	8P	TCXO	37.4 MHz	Clipped Sine Wave	3.3V	±500ppb
8P-37.400MCG-T	TXC CORPORATION	8P	TCXO	37.4 MHz	Clipped Sine Wave	2.5V	±500ppb
8P-37.400MDG-T	TXC CORPORATION	8P	TCXO	37.4 MHz	Clipped Sine Wave	1.8V	±500ppb
