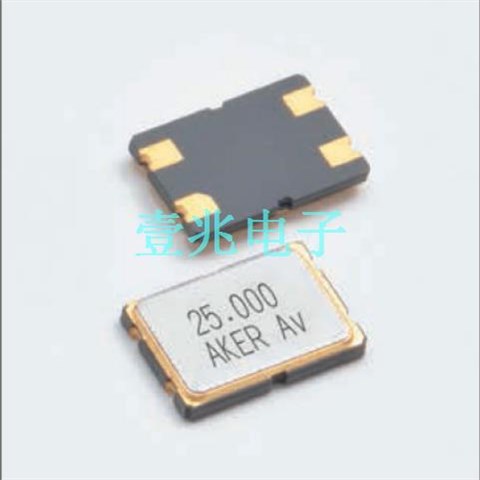

C7S-12.000-12-3030-X-R,安基贴片晶振 ,7050晶体谐振器

产品简介

C7S-12.000-12-3030-X-R,安基贴片晶振 ,7050晶体谐振器，编码：C7S-12.000-12-3030-X-R，型号：C7S，工作温度：-40°C ~ 85°C，尺寸：7.0mm*5.0mm，频率：12MHz，精度：±30ppm，负载电容：12pF，石英晶体谐振器，进口晶振，7050晶振，贴片无源晶振，贴片石英晶体，石英晶体晶振，贴片晶振主要是用于电路中的时钟模块，来提供相应的时钟基准，常见的应用主要是嵌入式设计，如FPGA、DSP等开发板中。

产品详情

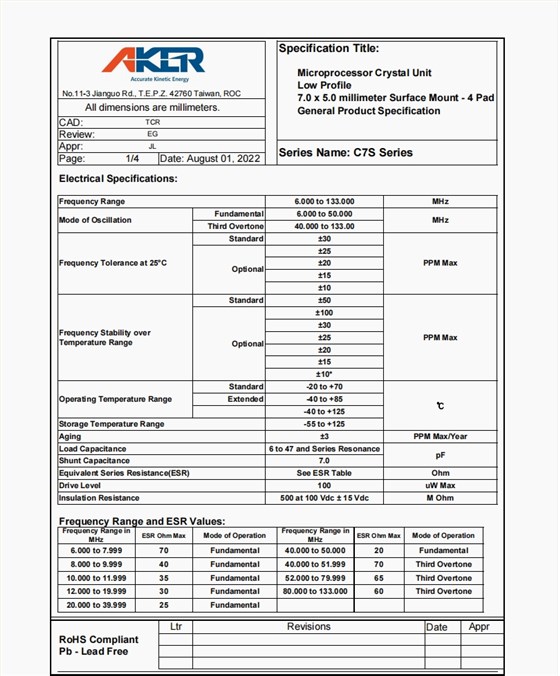

C7S-12.000-12-3030-X-R,安基贴片晶振 ,7050晶体谐振器，参数表

编码	C7S-12.000-12-3030-X-R
品牌	AKER
型号	C7S
频率	12MHz
精度	±30ppm
负载电容	12pF
工作温度	-40°C ~ 85°C
尺寸	7.0mm*5.0mm

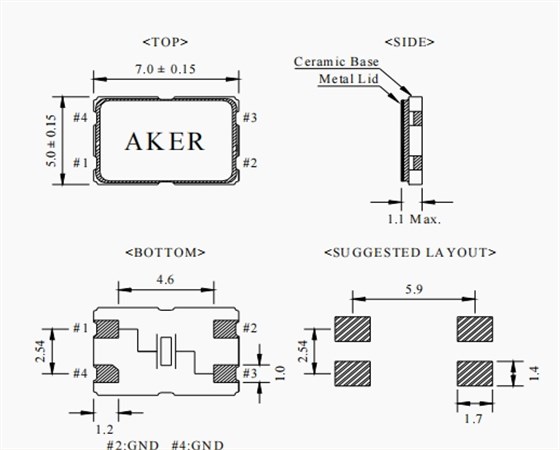

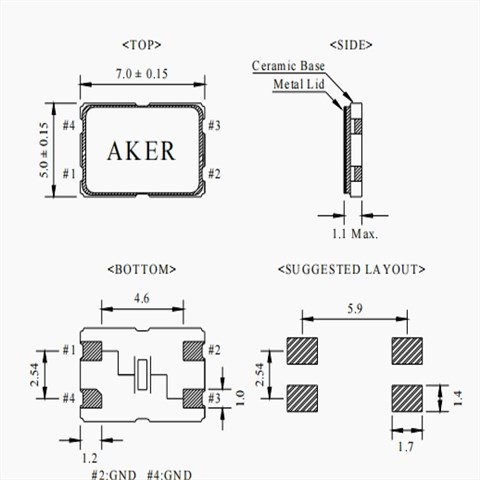

C7S-12.000-12-3030-X-R,安基贴片晶振 ,7050晶体谐振器，尺寸图

Mfr Part #	石英AKER晶体	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
C5S-26.000-16-1010-R	Aker Technology USA	C5S	26 MHz	±10ppm	16pF	-20°C ~ 70°C
C5S-8.000-18-3030-R	Aker Technology Corp	C5S	8 MHz	±30ppm	18pF	-20°C ~ 70°C
CAA-4.000-18-3050-X-R	Aker Technology Corp	CAA	4 MHz	±30ppm	18pF	-40°C ~ 85°C
CAA-11.0592-18-3050-R	Aker Technology Corp	CAA	11.0592 MHz	±30ppm	18pF	-20°C ~ 70°C
CAA-8.000-18-3050-X-R	Aker Technology Corp	CAA	8 MHz	±30ppm	18pF	-40°C ~ 85°C
CAA-40.000-18-3050-R	Aker Technology Corp	CAA	40 MHz	±30ppm	18pF	-20°C ~ 70°C
C3E-12.000-8-2050-X1-R	Aker Technology Corp	C3E X1	12 MHz	±20ppm	8pF	-40°C ~ 125°C
C3E-16.000-10-3050-X1-R	Aker Technology Corp	C3E X1	16 MHz	±30ppm	10pF	-40°C ~ 125°C
C3E-20.000-8-3050-X1-R	Aker Technology Corp	C3E X1	20 MHz	±30ppm	8pF	-40°C ~ 125°C
C5S-12.000-18-1020-R	Aker Technology Corp	C5S	12 MHz	±10ppm	18pF	-10°C ~ 70°C
C3E-16.000-10-2050-X1-R	Aker Technology Corp	C3E X1	10 MHz	±20ppm	10pF	-40°C ~ 125°C
C3E-30.000-8-2050-X1-R	Aker Technology Corp	C3E X1	30 MHz	±20ppm	8pF	-40°C ~ 125°C
C7S-12.000-12-3030-X-R	Aker Technology Corp	C7S	12 MHz	±30ppm	12pF	-40°C ~ 85°C
C7S-8.000-18-1020-R	Aker Technology Corp	C7S	8 MHz	±10ppm	18pF	-10°C ~ 70°C
C7S-8.000-18-1030-X-R	Aker Technology Corp	C7S	8 MHz	±10ppm	18pF	-40°C ~ 85°C
CA4-16.000-18-3050-R	Aker Technology Corp	CA4	16 MHz	±30ppm	18pF	-20°C ~ 70°C
CA4-8.000-16-3050-R	Aker Technology Corp	CA4	8 MHz	±30ppm	16pF	-20°C ~ 70°C
C3E-16.000-8-2050-X1-R	Aker Technology Corp	C3E X1	16 MHz	±20ppm	8pF	-40°C ~ 125°C
C3E-20.000-10-3050-X1-R	Aker Technology Corp	C3E X1	20 MHz	±30ppm	10pF	-40°C ~ 125°C
C5S-24.000-20-3030-X-R	Aker Technology Corp	C5S	24 MHz	±30ppm	20pF	-40°C ~ 85°C
C5S-12.000-16-5050-X-R	Aker Technology Corp	C5S	12 MHz	±50ppm	16pF	-40°C ~ 85°C
C5S-20.000-20-3050-X-R	Aker Technology Corp	C5S	20 MHz	±50ppm	20pF	-40°C ~ 85°C
C5S-12.000-16-3030-X-R	Aker Technology USA	C5S	12 MHz	±30ppm	16pF	-40°C ~ 85°C
C5S-8.000-12-2020-X-R	Aker Technology Corp	C5S	8 MHz	±20ppm	12pF	-40°C ~ 85°C
C6S-16.000-12-5050-X-R	Aker Technology Corp	C6S	16 MHz	±50ppm	12pF	-40°C ~ 85°C
C5S-8.000-18-3030-X-R	Aker Technology USA	C5S	8 MHz	±30ppm	18pF	-40°C ~ 85°C
C5S-8.000-16-3030-X-R	Aker Technology USA	C5S	8 MHz	±30ppm	16pF	-40°C ~ 85°C
C5S-24.000-18-20100-A-X1-R	Aker Technology Corp	C5S Auto	-	±20ppm	18pF	-40°C ~ 125°C
