ECS-160-20-4VX,HC-49USSX,16MHz石英晶振

ECS-160-20-4VX,HC-49USSX,16MHz石英晶振,插件石英晶振，两脚晶振，石英晶振，型号：HC-49USSX系列晶振，编码为：ECS-160-20-4VX,频率为：16MHz，尺寸：11.35*5mm,工作温度为：-10°C ~ 70°C，ECS crystal晶振，贴片石英晶体，石英晶振，HC-49USSX 低轮廓晶体 HC-49USSX是薄型（最大2.1毫米。阻力 焊接型通孔石英晶体，适用于智能家具家电，数码电子，移动通信设备，近距离无线模块，数字AV设备，PC等新一代小型设备，可穿戴设备，工业设备等用途。

编码	ECS-160-20-4VX
品牌	ECS 晶振
型号	HC-49USSX
频率	16MHz
工作温度	-10°C ~ 70°C
尺寸	11.35*5mm

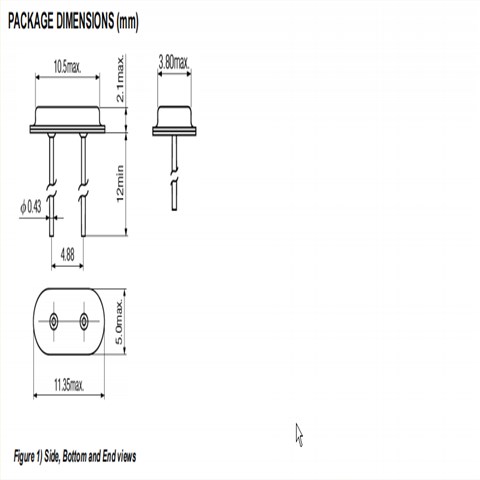

ECS-160-20-4VX,HC-49USSX,16MHz石英晶振，尺寸图

Manufacturer Part Number原厂编码	SMD晶体	Series型号	Frequency	Operating Temperature工作温度
ECS-080-20-4X-DU	ECS 晶振	HC-49USX	8MHz	-55°C ~ 125°C
ECS-120-18-4X-DU	ECS 晶振	HC-49USX	12MHz	-55°C ~ 125°C
ECS-160-20-4X-DU	ECS 晶振	HC-49USX	16MHz	-55°C ~ 125°C
ECS-250-18-4X-DU	ECS 晶振	HC-49USX	25MHz	-55°C ~ 125°C
ECS-42-18-4XEN	ECS 晶振	HC-49USX	4.194304MHz	-40°C ~ 85°C
ECS-110.5-18-4XEN	ECS 晶振	HC-49USX	11.0592MHz	-40°C ~ 85°C
ECS-40-18-4XEN	ECS 晶振	HC-49USX	4MHz	-40°C ~ 85°C
ECS-92.1-18-4XEN	ECS 晶振	HC-49USX	9.216MHz	-40°C ~ 85°C
ECS-135-18-4XEN	ECS 晶振	HC-49USX	13.5168MHz	-40°C ~ 85°C
ECS-50-18-4XEN	ECS 晶振	HC-49USX	5MHz	-40°C ~ 85°C
ECS-60-18-4XEN	ECS 晶振	HC-49USX	6MHz	-40°C ~ 85°C
ECS-200-18-4XEN	ECS 晶振	HC-49USX	20MHz	-40°C ~ 85°C
ECS-73-18-4XEN	ECS 晶振	HC-49USX	7.3728MHz	-40°C ~ 85°C
ECS-147.4-18-4XEN	ECS 晶振	HC-49USX	14.7456MHz	-40°C ~ 85°C
ECS-282.24-18-4X-F-EN	ECS 晶振	HC-49USX	28.224MHz	-40°C ~ 85°C
ECS-163.8-18-4XEN	ECS 晶振	HC-49USX	16.384MHz	-40°C ~ 85°C
ECS-245.7-18-4XEN	ECS 晶振	HC-49USX	24.576MHz	-40°C ~ 85°C
ECS-160-20-4X	ECS 晶振	HC-49USX	16MHz	-10°C ~ 70°C
ECS-36-18-4X	ECS 晶振	HC-49USX	3.6864MHz	-10°C ~ 70°C
ECS-100-18-4X	ECS 晶振	HC-49USX	10MHz	-10°C ~ 70°C
ECS-40-20-4X	ECS 晶振	HC-49USX	4MHz	-10°C ~ 70°C
ECS-143-20-4X	ECS 晶振	HC-49USX	14.31818MHz	-10°C ~ 70°C
