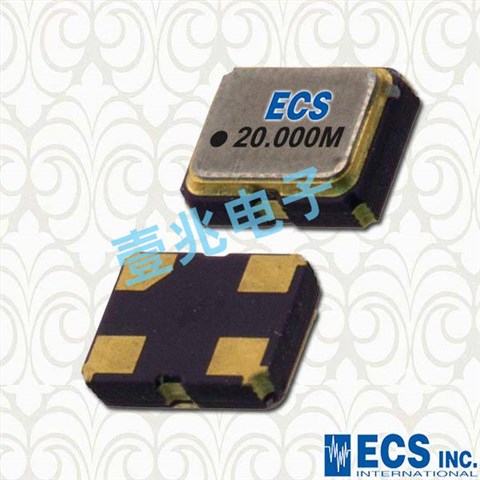

ECS-2520S18-120-FN-TR,12MHz晶振,2520四脚贴片晶振，型号：ECS-2520S系列晶振，编码为：ECS-2520S18-120-FN-TR，频率：12MHz,尺寸：2.5*2.0mm,工作温度为：﹣40°C ~ 85°C，四脚贴片晶振，ECS crystal晶振，微型ECS-2520S是微型SMD HCMOS紧密稳定石英晶体振荡器，2.5 x 2.0 x 0.9毫米陶瓷封装是理想之选 对于稳定性至关重要无线和IOT应用被广泛应用于无线通讯系统，无线局域网，智能手机，平板电脑，医疗设备等用途。

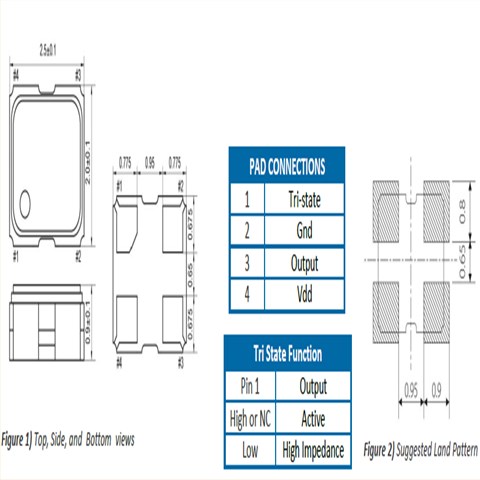

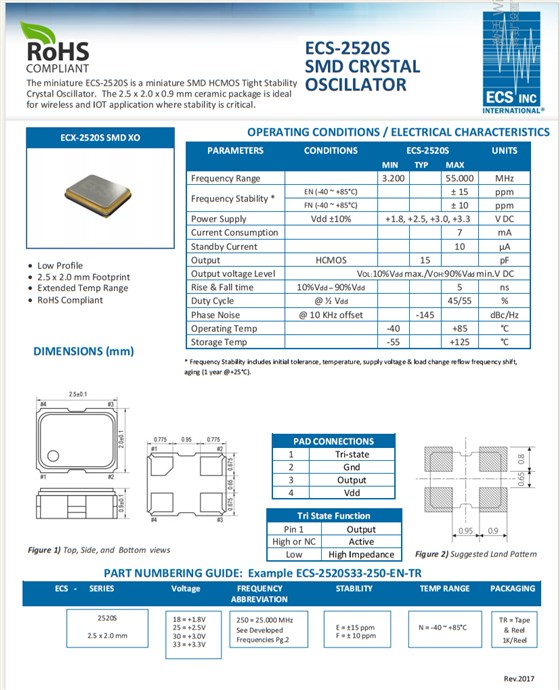

| PARAMETERS | CONDITIONS | ECS-2520S | UNITS | ||||||||||||||
| MIN | TYP | MAX | |||||||||||||||
| Frequency Range |
|
12 |
|
MHz | |||||||||||||
| Frequency Stability * | EN (-40 ~ +85°C) | ± 15 | ppm | ||||||||||||||
| FN (-40 ~ +85°C) | ± 10 | ppm | |||||||||||||||
| Power Supply | Vdd ±10% | +1.8, +2.5, +3.0, +3.3 | V DC | ||||||||||||||
| Current Consumption | 7 | mA | |||||||||||||||
| Standby Current | 10 | µA | |||||||||||||||
| Output | HCMOS | 15 | pF | ||||||||||||||
| Output voltage Level | VOL:10%Vddmax./VOH:90%Vddmin.V DC | ||||||||||||||||
| Rise & Fall time | 10%Vdd –90%Vdd | 5 | ns | ||||||||||||||
| Duty Cycle | @ ½ Vdd | 45/55 | % | ||||||||||||||
| Phase Noise | @ 10 KHz offset | -145 | dBc/Hz | ||||||||||||||
| Operating Temp | -40 | +85 | °C | ||||||||||||||
| Storage Temp | -55 | +125 | °C | ||||||||||||||
| Manufacturer Part Number原厂代码 | 有源晶振 | Series型号 | Frequency 频率 | Operating Temperature工作温度 |
| ECS-2520S25-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS 晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS 晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS 晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS 晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS 晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS 晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS 晶振 | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS 晶振 | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS 晶振 | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS 晶振 | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS 晶振 | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS 晶振 | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS 晶振 | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS 晶振 | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS 晶振 | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS 晶振 | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS 晶振 | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS 晶振 | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS 晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS 晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS 晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S18-400-FN-TR | ECS 晶振 | ECS-2520S | 40MHz | -40°C ~ 85°C |
| ECS-2520S18-400-FN-TR | ECS 晶振 | ECS-2520S | 40MHz | -40°C ~ 85°C |
| ECS-2520S18-400-FN-TR | ECS 晶振 | ECS-2520S | 40MHz | -40°C ~ 85°C |
