ECS-98.3-20-20A-TR,CSM-8,ECS石英晶体,贴片无源晶振，贴片四脚晶振，石英晶振，晶体谐振器，美国进口晶振，型号：CSM-8系列晶振，编码为：ECS-98.3-20-20A-TR，频率：9.8304MHz,负载电容为：20Pf,尺寸：7.0*5.0mm,工作温度为：-10°C ~ 70°C，石英晶体谐振器，进口晶振，晶体谐振器，CSM-8M 贴片石英晶体 CSM-8M是一款尺寸为7.0 x 5.0毫米的微型SMD晶体足迹，这种缝焊金属盖/陶瓷封装晶体 是PCMIA以太网和传真调制解调器卡应用的理想选择，广泛应用于数码电子，例如：智能手机，智能手表，GPS，蓝牙耳机，时钟钟表，智能儿童游戏机等产品。
| 编码 |
ECS-98.3-20-20A-TR |
| 品牌 | ECS 晶振 |
| 型号 | CSM-8 |
| 频率 |
9.8304MHz |
| 负载电容 |
20Pf |
| 工作温度 |
-10°C ~ 70°C |
| 尺寸 | 7.0*5.0mm |

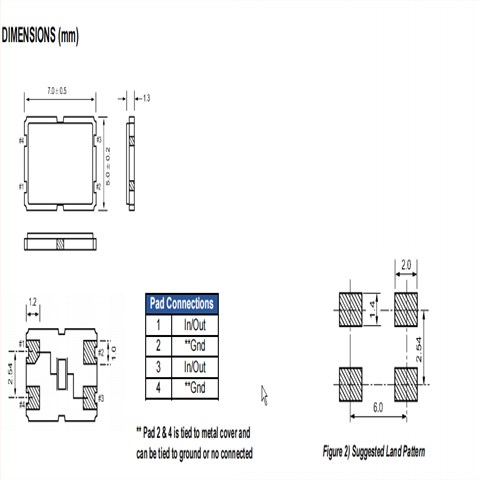

ECS-98.3-20-20A-TR,CSM-8,ECS石英晶体,贴片无源晶振，尺寸图
| Manufacturer Part Number原厂编码 | 石英晶振 | Series型号 | Frequency | Operating Temperature工作温度 |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
