ELM10-16.000MHz-8-R60-2-D20-T,AEL贴片晶振,2520小体积晶振

产品简介

ELM10-16.000MHz-8-R60-2-D20-T,AEL贴片晶振,2520小体积晶振，编码：ELM10-16.000MHz-8-R60-2-D20-T，型号：ELM10，工作温度：-40°C ~ 85°C，尺寸：2.5mm*2.0mm，频率：16MHz，精度：±20ppm，负载电容：8pF，美国进口晶振，石英晶体谐振器，石英晶体晶振，贴片晶体，艾尔贴片晶振，无源晶体，贴片石英晶体谐振器公差:15ppm 工作温度0摄氏度至+50摄氏度至-40摄氏度至+125摄氏度，产品广泛应用于时钟钟表，智能手机，智能儿童游戏机，手机导航，数码电子，无线局域网，无线电话等应用。

产品详情

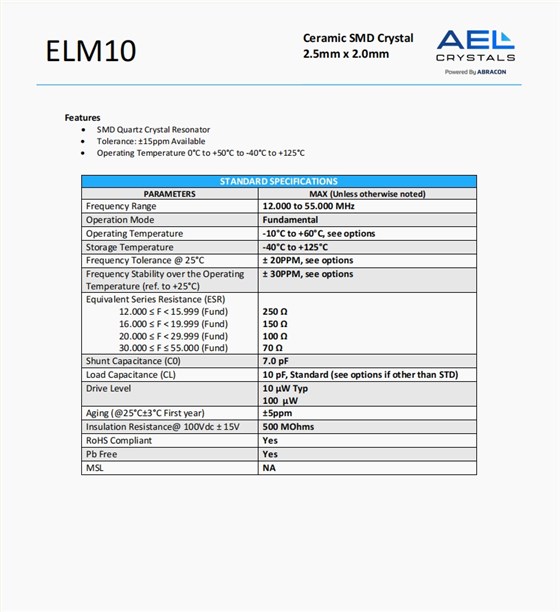

ELM10-16.000MHz-8-R60-2-D20-T,AEL贴片晶振,2520小体积晶振，参数表

编码	ELM10-16.000MHz-8-R60-2-D20-T
品牌	AEL
型号	ELM10
频率	16MHz
精度	±20ppm
负载电容	8pF
工作温度	-40°C ~ 85°C
尺寸	2.5mm*2.0mm

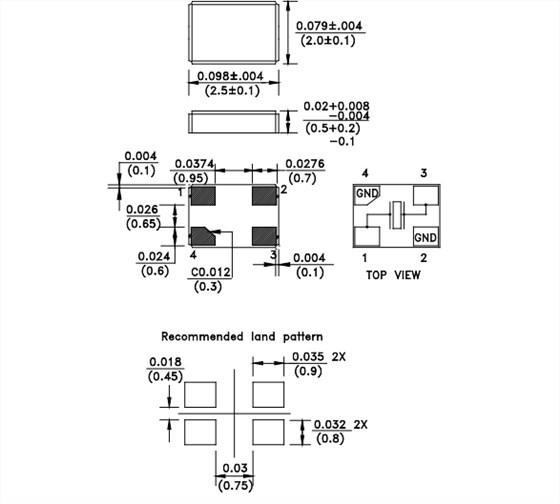

ELM10-16.000MHz-8-R60-2-D20-T,AEL贴片晶振,2520小体积晶振，尺寸图

Part	AEL晶振	型号	Length	Width	Height	Operating Temperature
ELM10-16.000MHz-8-R60-2-D20-T	AEL Crystals	ELM10	2.5mm	2mm	0.5mm	-40°C ~ 85°C
ELM10-24.000MHz-16-R100-X-N15-T	AEL Crystals	ELM10	2.5mm	2mm	0.5mm	-30°C ~ 85°C
ELM11-32.000MHz-10-R60-D1X-T	AEL Crystals	ELM11	2mm	1.6mm	0.5mm	-40°C ~ 85°C
ELM12W-24.000MHz-6-R120-D7X-T	AEL Crystals	ELM12W	1.6mm	1.2mm	0.4mm	-40°C ~ 85°C
ELM3-12.000MHz-30-R80-D4Y-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-40°C ~ 85°C
ELM3-14.000MHz-30-R80-D4H-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-40°C ~ 85°C
ELM3-24.000MHz-18-R40-D4H-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-40°C ~ 85°C
ELM3-8.057MHz-18-R100-B4Y-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-20°C ~ 70°C
ELM8-12.000MHz-10-R50-D4Y-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
ELM8-12.5829MHz-16-R60-1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-10°C ~ 60°C
ELM8-14.000MHz-16-R150-B1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 70°C
ELM8-18.432MHz-16-R80-DQ-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
ELM8-24.000MHz-10-R60-D1W-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
ELM8-24.000MHz-18-R60-B1W-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 70°C
ELM8-24.000MHz-9-R40-N1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-30°C ~ 85°C
ELM8-26.000MHz-18-R60-B1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 70°C
ELM8-32.000MHz-16-R40-B1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 75°C
ELM8-32.000MHz-9-R40-D1G-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
ELS05-32.768kHz-9-T	AEL Crystals	ELS05	1.6mm	1mm	0.5mm	-40°C ~ 85°C
ELS06-32.768kHz-9-T	AEL Crystals	ELS06	2mm	1.2mm	0.6mm	-40°C ~ 85°C
ELS07-32.768kHz-6-T	AEL Crystals	ELS07	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C
ELS07-32.768kHz-T	AEL Crystals	ELS07	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C
ELS13-32.768kHz-7-T	AEL Crystals	ELS13	7mm	1.5mm	1.4mm	-40°C ~ 85°C
ELS13-32.768kHz-7-T	AEL Crystals	ELS13	7mm	1.5mm	1.4mm	-40°C ~ 85°C
ELS13-32.768kHz-9-T	AEL Crystals	ELS13	7mm	1.5mm	1.4mm	-40°C ~ 85°C
ELS13-32.768kHz-T	AEL Crystals	ELS13	7mm	1.5mm	1.4mm	-40°C ~ 85°C
