ISM97-8351CH-13.000MHz晶体振荡器,ILSI石英贴片晶振，编码：ISM97-8351CH-13.000MHz，型号：ISM97，工作温度：-20℃ ~ 70℃，尺寸：3.2mm*2.5mm，频率：13MHz，精度：±100ppm，电压：1.62V ~ 3.63V，电流：20mA，进口石英晶体振荡器，美国进口晶振，有源晶振，贴片石英晶振，艾尔西OSC有源晶振，有源晶振高频振荡器使用IC与晶片设计匹配技术：有源晶振是高频振荡器研发及生产过程必须要解决的技术难题。在设计过程中除了要考虑石英晶体谐振器具有的电性外，还有石英晶体振荡器的电极设计等其它的特殊性，必须考虑石英晶体振荡器的供应电压、起动电压和产品上升时间、下降时间等相关参数。

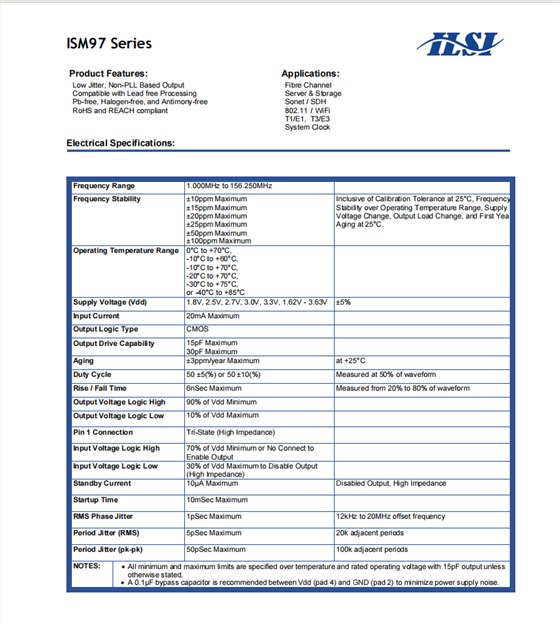

ISM97-8351CH-13.000MHz晶体振荡器,ILSI石英贴片晶振，参数表
| 编码 |
ISM97-8351CH-13.000MHz |
| 品牌 | ILSI |
| 型号 | ISM97 |
| 频率 | 13MHz |
| 精度 |
±100ppm |
| 电压 |
1.62V ~ 3.63V |
| 电流 |
20mA |
| 工作温度 |
-20℃ ~ 70℃ |
| 尺寸 | 3.2mm*2.5mm |

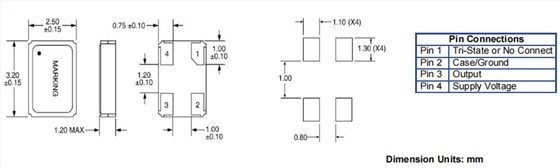

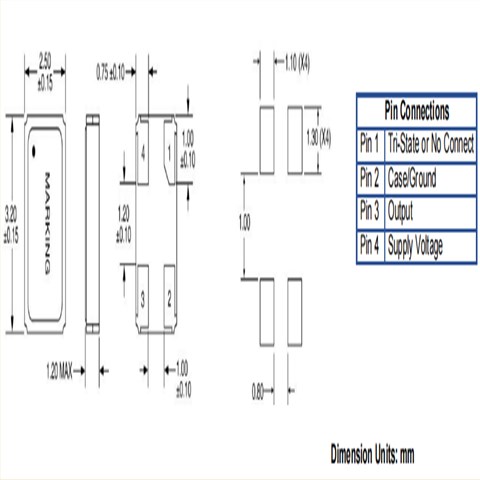

ISM97-8351CH-13.000MHz晶体振荡器,ILSI石英贴片晶振，尺寸图
| Part | 美国进口晶振 | 型号 | Type | Length | Width | Height | Operating Temperature | Frequency |
| ISM92-1151BH- 80.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | 0℃ ~ 70℃ | 80 MHz |
| ISM92-1166BH- 80.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | 0℃ ~ 70℃ | 80 MHz |
| ISM92-1351AH- 24.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 24 MHz |
| ISM92-3251BH- 12.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | -40℃ ~ 85℃ | 12 MHz |
| ISM92-3251BH- 25.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | -40℃ ~ 85℃ | 25 MHz |
| ISM92-3251CH- 20.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | -40℃ ~ 85℃ | 20 MHz |
| ISM92-3351AH- 8.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 8 MHz |
| ISM92-3351AH- 12.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 12 MHz |
| ISM92-3351AH- 24.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 24 MHz |
| ISM92-3351AH- 25.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 25 MHz |
| ISM92-3351AH- 50.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 50 MHz |
| ISM92-3361BH- 48.000 MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 48 MHz |
| ISM92-5151CH- 37.872MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | 0℃ ~ 70℃ | 37.872 MHz |
| ISM92-5161FH- 46.320MHz | ILSI | ISM92 | XO (Standard) | 5mm | 3.2mm | 1.6mm | 0℃ ~ 70℃ | 46.32 MHz |
| ISM97-1251BO- 25.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 25 MHz |
| ISM97-1351AH- 12.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -20℃ ~ 70℃ | 12 MHz |
| ISM97-3151BH- 50.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | 0℃ ~ 70℃ | 50 MHz |
| ISM97-3153BH- 40.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | 0℃ ~ 70℃ | 40 MHz |
| ISM97-3251BH- 8.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 8 MHz |
| ISM97-3251BH- 14.7456 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 4.7456 MHz |
| ISM97-3251BH- 20.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 20 MHz |
| ISM97-3251BH- 24.576 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 24.576 MHz |
| ISM97-3251BH- 25.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 25 MHz |
| ISM97-3251BH- 40.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 40 MHz |
| ISM97-3251BH- 50.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 50 MHz |
| ISM97-3261AH- 13.560 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 13.56 MHz |
| ISM97-3351AH- 12.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -20℃ ~ 70℃ | 12 MHz |
| ISM97-3351AH- 24.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -20℃ ~ 70℃ | 24 MHz |
| ISM97-3351AH- 50.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -20℃ ~ 70℃ | 50 MHz |
| ISM97-3651BH- 25.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -10℃ ~ 70℃ | 25 MHz |
| ISM97-3651EH- 19.200 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -10℃ ~ 70℃ | 19.2 MHz |
| ISM97-3651EH- 24.000 MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -10℃ ~ 70℃ | 24 MHz |
| ISM97-8251BH-24.000MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 24 MHz |
| ISM97-8351CH-13.000MHz | ILSI | ISM97 | XO (Standard) | 3.2mm | 2.5mm | 1.2mm | -20℃ ~ 70℃ | 13 MHz |
