LFXTAL003000,贴片晶振32.768K,IQD晶振

LFXTAL003000,贴片晶振32.768K,IQD晶振，编码：LFXTAL003000，型号：85SMX，工作温度：-40C ~ 85°C，尺寸：8.7mm*3.8mm，频率：32.768 kHz，精度：±20ppm，负载电容：12.5pF，美国进口晶振，无源贴片晶振，贴片石英晶体，石英晶振，SMD晶体，贴片晶振32.768K，石英晶体谐振器，行业标准SMD封装，引脚间距为5.5毫米，适合实时时钟应用，塑料封装，产品广泛应用于时钟钟表，智能手机，智能手表，数码相机，手机导航，GPS，医疗设备等用途。

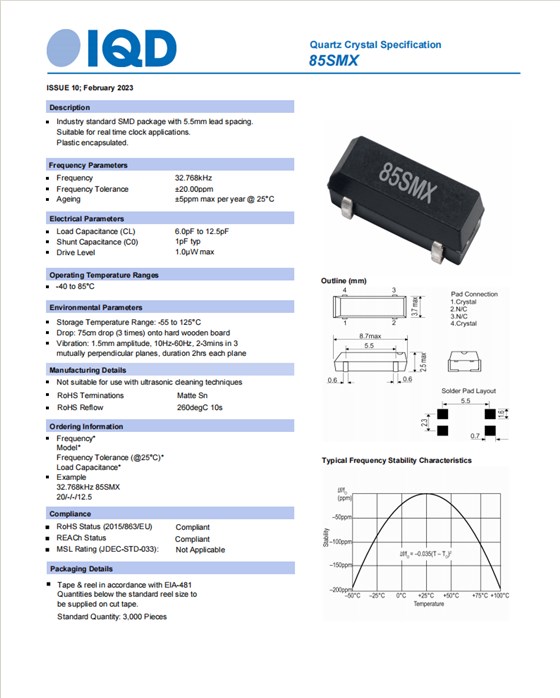

LFXTAL003000,贴片晶振32.768K,IQD晶振，参数表

编码	LFXTAL003000
品牌	IQD
型号	85SMX
频率	32.768 kHz
精度	±20ppm
负载电容	12.5pF
工作温度	-40C ~ 85°C
尺寸	8.7mm*3.8mm

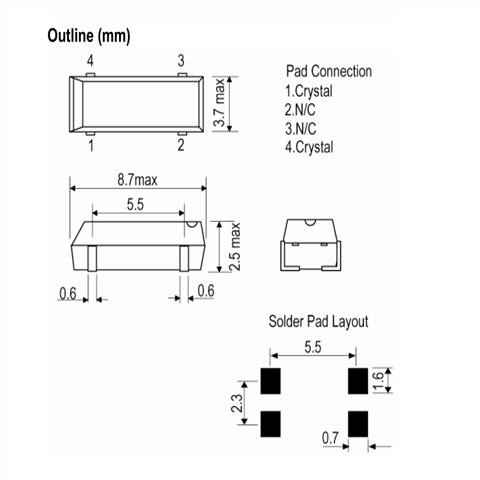

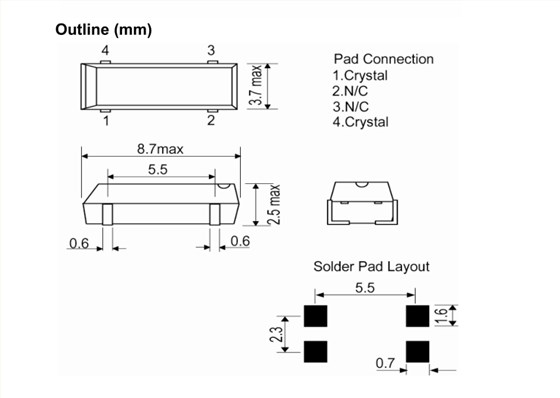

LFXTAL003000,贴片晶振32.768K,IQD晶振，尺寸图

Mfr Part #	晶体谐振器	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL003000	IQD Frequency Products	85SMX	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL069395RL3K	IQD Frequency Products	CFPX-218	16.384 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL009678	IQD Frequency Products	CFPX-217	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL055299REEL	IQD Frequency Products	CFPX-180	25 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL053099REEL	IQD Frequency Products	CFPX-180	27.12 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL055663REEL	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL069383REEL	IQD Frequency Products	CFPX-218	24 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL035264REEL	IQD Frequency Products	CFPX-180	16 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL069944REEL	IQD Frequency Products	CFPX-180	12 MHz	±20ppm	15pF	-40°C ~ 85°C
LFXTAL035268REEL	IQD Frequency Products	CFPX-180	25 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL061627REEL	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	16pF	-40°C ~ 85°C
LFXTAL055901REEL	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	18pF	-20°C ~ 70°C
LFXTAL059158REEL	IQD Frequency Products	CFPX-104	8 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL055663BULK	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL082071RL3K	IQD Frequency Products	CFPX-180	16 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL082069RL3K	IQD Frequency Products	CFPX-180	12 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL058637RL3K	IQD Frequency Products	CFPX-180	25 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL063334REEL	IQD Frequency Products	CFPX-218	25 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL055474REEL	IQD Frequency Products	CFPX-180	25 MHz	±50ppm	16pF	-40°C ~ 85°C
LFXTAL059648REEL	IQD Frequency Products	CFPX-180	40 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL072604REEL	IQD Frequency Products	CFPX-180	25 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL069882REEL	IQD Frequency Products	CFPX-180	12 MHz	±30ppm	10pF	-40°C ~ 125°C
LFXTAL070065REEL	IQD Frequency Products	CFPX-180	24 MHz	±10ppm	9pF	-40°C ~ 85°C
LFXTAL055293REEL	IQD Frequency Products	CFPX-180	14.7456 MHz	±50ppm	18pF	-40°C ~ 85°C
LFXTAL009650REEL	IQD Frequency Products	CFPX-180	16 MHz	±10ppm	16pF	-40°C ~ 85°C
LFXTAL055295REEL	IQD Frequency Products	CFPX-180	12 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL082076REEL	IQD Frequency Products	CFPX-180	32 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL057997REEL	IQD Frequency Products	CFPX-180	16 MHz	±10ppm	10pF	-40°C ~ 85°C
LFXTAL056346REEL	IQD Frequency Products	CFPX-180	12 MHz	±30ppm	18pF	-40°C ~ 85°C
LFXTAL083138RL3K	IQD Frequency Products	CFPX-180	8 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL030819REEL	IQD Frequency Products	CFPX-104	16 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL059530REEL	IQD Frequency Products	CFPX-104	24 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL061633REEL	IQD Frequency Products	CFPX-104	13.56 MHz	±20ppm	16pF	-40°C ~ 85°C
