LFXTAL003033BULK,49U石英晶振,IQD英国进口晶振,编码:LFXTAL003033BULK,型号:HC49,工作温度:-10℃ ~ 60°C,尺寸:11.05mm*4.65mm,频率:1.8432 MHz,精度:±20ppm,负载电容:30pF,进口晶振,无源晶振,49U晶振,石英晶振,SMD晶体,贴片石英晶体,石英晶体谐振器,工业标准引线封装 电阻焊接,密封在惰性气体中 大气、引线上的玻璃-金属密封 可用的变体包括但不限于 3L =一个额外的安装在中心的支腿将罐体接地 ,TW =一个额外的顶部安装支架将罐体接地, t = 11.1毫米的截断高度,产品广泛应用于电视、机顶盒、LCDM、数据通信、CPU、 存储器、电缆调制解调器等。
LFXTAL003033BULK,49U石英晶振,IQD英国进口晶振,参数表
编码 | LFXTAL003033BULK |
品牌 | IQD |
型号 | HC49 |
频率 | 1.8432 MHz |
精度 |
±20ppm |
负载电容 |
30pF |
工作温度 |
-10℃ ~ 60°C |

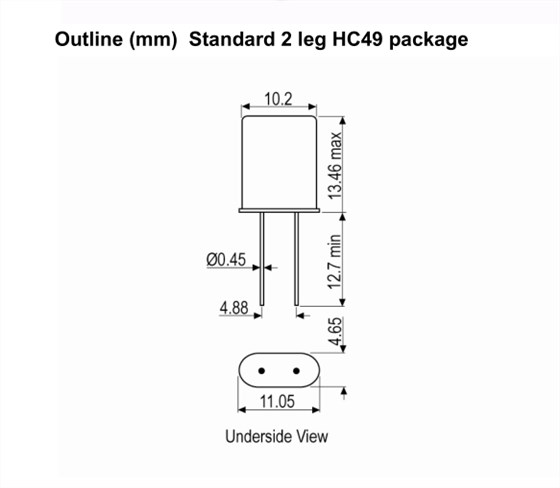

尺寸 |
11.05mm*4.65mm |
Mfr Part # | 石英晶振 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
LFXTAL003033BULK | IQD Frequency Products | HC49 | 1.8432 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003320BULK | IQD Frequency Products | HC49 | 24 MHz | ±20ppm | Series | -10°C ~ 60°C |
LFXTAL011164BULK | IQD Frequency Products | HC49 | 3.072 MHz | ±20ppm | 20pF | -10°C ~ 60°C |
LFXTAL003231BULK | IQD Frequency Products | HC49 | 16 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003134BULK | IQD Frequency Products | HC49 | 6.144 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003277BULK | IQD Frequency Products | HC49 | 9.8304 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003099BULK | IQD Frequency Products | HC49 | 4.433619 MHz | ±20ppm | 20pF | -10°C ~ 60°C |
LFXTAL003515BULK | IQD Frequency Products | HC49 | 11.0592 MHz | ±20ppm | 20pF | -10°C ~ 60°C |
LFXTAL003118BULK | IQD Frequency Products | HC49 | 5 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003086BULK | IQD Frequency Products | HC49 | 4.194304 MHz | ±20ppm | 12pF | -10°C ~ 60°C |
LFXTAL003177BULK | IQD Frequency Products | HC49 | 20 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003127BULK | IQD Frequency Products | HC49 | 6 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003147BULK | IQD Frequency Products | HC49 | 8 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003110BULK | IQD Frequency Products | HC49 | 4.9152 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003257BULK | IQD Frequency Products | HC49 | 3.6864 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003051BULK | IQD Frequency Products | HC49 | 3.2768 MHz | ±20ppm | 12pF | -10°C ~ 60°C |
LFXTAL003044BULK | IQD Frequency Products | HC49 | 2.4576 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL012873BULK | IQD Frequency Products | HC49 | 2.4576 MHz | ±30ppm | 32pF | -20°C ~ 70°C |
LFXTAL003037BULK | IQD Frequency Products | HC49 | 2 MHz | ±50ppm | 20pF | 0°C ~ 50°C |
LFXTAL015442BULK | IQD Frequency Products | HC49 | 1.8432 MHz | ±30ppm | 13pF | -20°C ~ 70°C |
LFXTAL003056BULK | IQD Frequency Products | HC49 | 3.579545 MHz | ±20ppm | 20pF | -10°C ~ 60°C |
LFXTAL003164BULK | IQD Frequency Products | HC49 | 10 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003329BULK | IQD Frequency Products | HC49 | 7.3728 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003386BULK | IQD Frequency Products | HC49 | 24.576 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003342BULK | IQD Frequency Products | HC49 | 30 MHz | ±20ppm | Series | -10°C ~ 60°C |
LFXTAL003218BULK | IQD Frequency Products | HC49 | 14.7456 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003179BULK | IQD Frequency Products | HC49 | 20 MHz | ±20ppm | Series | -10°C ~ 60°C |
LFXTAL003206BULK | IQD Frequency Products | HC49 | 12 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003068BULK | IQD Frequency Products | HC49 | 4 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
LFXTAL003174BULK | IQD Frequency Products | HC49 | 18.432 MHz | ±20ppm | Series | -10°C ~ 60°C |
LFXTAL003312BULK | IQD Frequency Products | HC49 | 22.1184 MHz | ±20ppm | Series | -10°C ~ 60°C |
LFXTAL003327BULK | IQD Frequency Products | HC49 | 11 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
