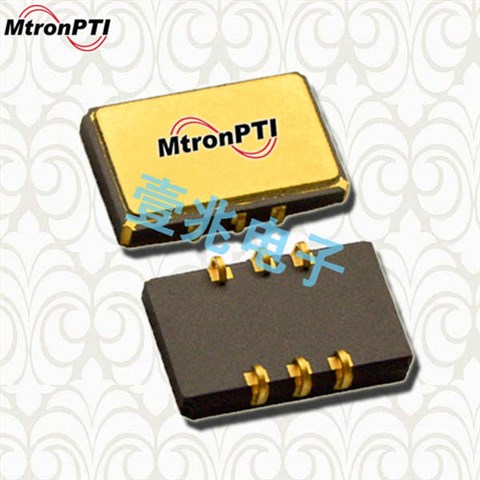

M2200S014 40.000000,M220x差分有源晶体,MtronPTI进口晶振

产品简介

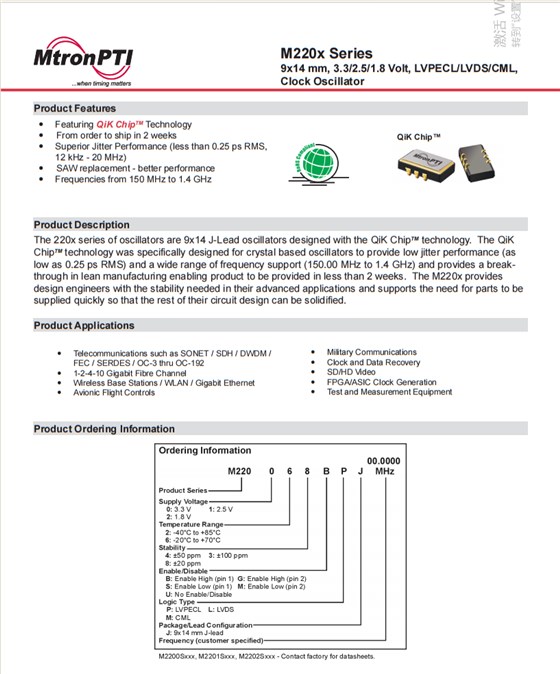

M2200S014 40.000000,M220x差分有源晶体,MtronPTI进口晶振，编码：M2200S014 40.000000，型号：M220x系列晶振，工作温度：-40°C to +85°C，精度：±20ppm，尺寸：9.0*14.0mm，频率：40MHz，电压：3.3V，输出方式：LVPECL，有源晶振SPXO，石英晶体振荡器，美国进口晶振，差分晶振，采用QiK ChipTM技术从订购到发货只需2周出色的抖动性能（小于0.25 ps RMS， 12千赫至20兆赫）锯的替代品-更好的性能频率从150兆赫到1.4千兆赫，应用在SONET / SDH / DWDM /等电信技术， FEC / SERDES / OC-3至OC-192 1-2-4-10千兆位光纤通道，无线基站/无线局域网/千兆以太网，航空电子飞行控制，军事通信设备，时钟和数据恢复，标清/高清视频 FPGA/ASIC时钟生成，测试和测量设备。

产品详情

M2200S014 40.000000,M220x差分有源晶体,MtronPTI进口晶振，参数表

编码	M2200S014 40.000000
品牌	MtronPTI晶振
型号	M220x
频率	40MHz
精度	±20ppm
输出方式	LVPECL
电压	3.3V
工作温度	-40°C ~ 85°C

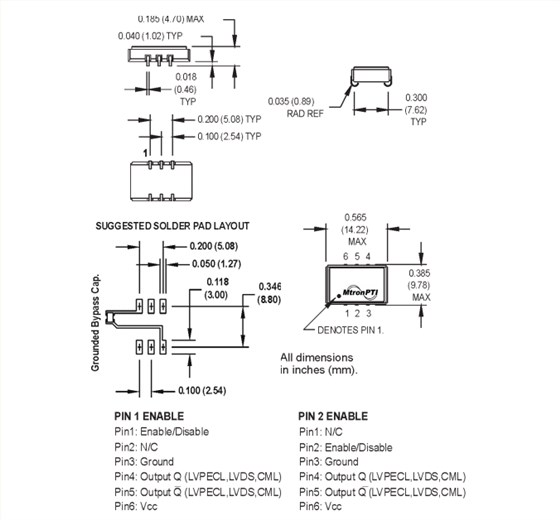

M2200S014 40.000000,M220x差分有源晶体,MtronPTI进口晶振，尺寸图

Part Number	差分输出振荡器	Oscillator Type	Frequency	Frequency Tolerance (ppm)	Package	Temperature Range
M220168MPJ 156.250000	M220x	XO	156.25	±20 ppm	9.0 X 14.0 mm	-20°C to +70°C
M2200S014 40.000000	M220x	XO	40	±20 ppm	9.0 X 14.0 mm	-40°C to +85°C
M2200S015 84.000000	M220x	XO	84	±20 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024BPJ 500.000000	M220x	XO	500	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024BPJ 750.000000	M220x	XO	750	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024MPJ 1360.000000	M220x	XO	1,360.00	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024SPJ 196.608000	M220x	XO	196.608	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024UPJ 389.600000	M220x	XO	389.6	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220064UPJ 644.530000	M220x	XO	644.53	±50 ppm	9.0 X 14.0 mm	-20°C to +70°C
M225014FAN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225014FAN 50.000000	M2250	XO	50	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225014TCN 125.000000	M2250	XO	125	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225014TCN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225024FCN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	-40°C to +85°C
M225024TCN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	-40°C to +85°C
M225064TAN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	-20°C to +70°C
M225068TCN 125.000000	M2250	XO	125	±20 ppm	5.0 x 7.0 mm	-20°C to +70°C
M2250S010 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	-20°C to +70°C
M2250S053 125.000000	M2250	XO	125	±20 ppm	5.0 x 7.0 mm	-20°C to +70°C
M2250S054 25.000000	M2250	XO	25	±25 ppm	5.0 x 7.0 mm	-20°C to +70°C
M240326TCN 8.000000	M2403	XO	8	±25 ppm	2.5 X 3.2 mm	-40°C to +85°C
M240644FCN 8.000000	M2403	XO	8	±50 ppm	5.0 x 7.0 mm	-55°C to +125°C
M2500S037 13.333000	M250x	XO	13.333	±100 ppm	2.5 X 2.0 mm	-40°C to +105°C
M2500S038 25.000000	M250x	XO	25	±25 ppm	2.5 X 2.0 mm	-40°C to +85°C
M2502S004 100.000000	M250x	XO	100	±50 ppm	2.5 X 2.0 mm	-40°C to +85°C
