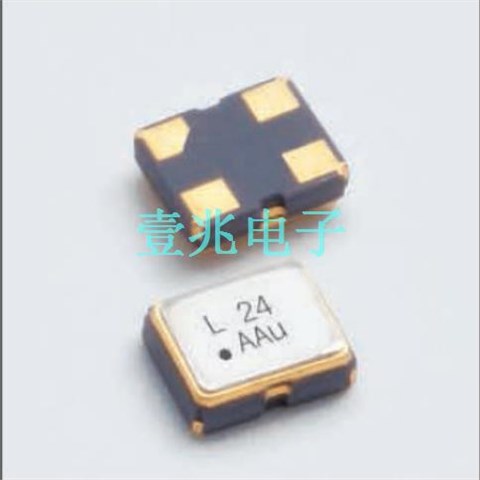

S2M025T-24.000-X-R,2520差分输出振荡器,AKER有源石英晶振

S2M025T-24.000-X-R,2520差分输出振荡器,AKER有源石英晶振，编码：S2M025T-24.000-X-R，型号：S2，工作温度：-40°C ~ 85°C，尺寸：2.5*2.0mm，频率：24MHz，精度：±25ppm，电压：1.62V ~ 3.63V，电流：12mA，输出方式：HCMOS，台产晶振，石英晶体振荡器，有源贴片晶振，差分有源晶振，差分石英晶体振荡器，差分贴片晶体振荡器，OSC石英晶振，差分晶振具有低电平，低抖动，低功耗、相位低，噪音低，损耗低、精密稳定等特性。那该如何选择差分晶振，首先要确认好频率，然后是电压，时钟逻辑类型，封装体积，工作温度以及频率稳定度(精度ppm)。差分晶振频率范围宽,频率高,精度范围可控制在25PPM。(起始偏差，工作稳定范围内的温度特性,电压电压变化，负载容量变化长期变化(1年@25'℃)包括振动和冲击)，差分晶振振动启动时间最小动作电压为0秒，电源电压范围在2.5V/3.3V。

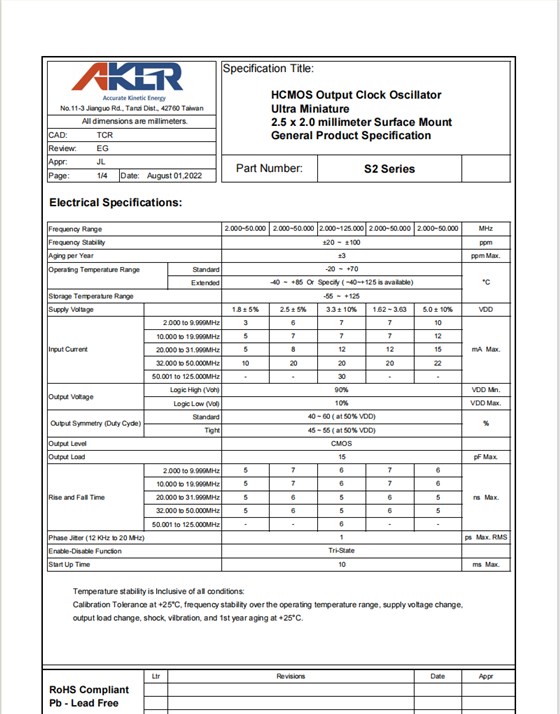

S2M025T-24.000-X-R,2520差分输出振荡器,AKER有源石英晶振，参数表

编码	S2M025T-24.000-X-R
品牌	AKER
型号	S2
频率	24MHz
精度	±25ppm
电压	1.62V ~ 3.63V
电流	12mA
工作温度	40°C ~ 85°C
输出方式	HCMOS
尺寸	2.5*2.0mm

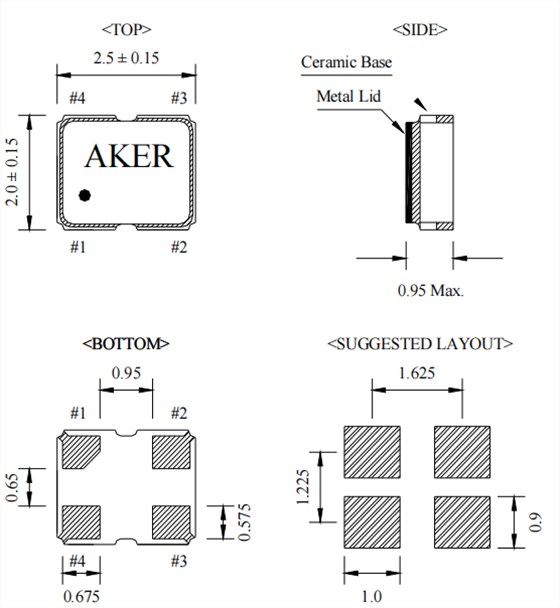

S2M025T-24.000-X-R,2520差分输出振荡器,AKER有源石英晶振，尺寸图

Mfr Part #	时钟晶体振荡器	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability	Operating Temperature	Current - Supply (Max)
S2M025T-24.000-X-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-40°C ~ 85°C	12mA
S73305-20.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	20 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S73305T-25.000-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	7mA
S73305T-25.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S733025T-25.000-15-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	7mA
S73305T-32.000-R	Aker Technology Corp	S7	XO (Standard)	32 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	7mA
S73305T-11.2896-X-30-R	Aker Technology Corp	S7	XO (Standard)	11.2896 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S73305T-50.000-X-R	Aker Technology Corp	S7	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	12mA
S533025T-25.000-R	Aker Technology Corp	S5	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	12mA
S73310-60.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	60 MHz	HCMOS	3.3V	±100ppm	-40°C ~ 85°C	25mA
S3M025T-8.000-R	Aker Technology Corp	S3	XO (Standard)	8 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-20°C ~ 70°C	7mA
S3M05T-8.000-R	Aker Technology Corp	S3	XO (Standard)	8 MHz	HCMOS	1.62V ~ 3.63V	±50ppm	-20°C ~ 70°C	7mA
S333025T-25.000-X-R	Aker Technology Corp	S3	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C	12mA
S533025T-25.000-X-R	Aker Technology Corp	S5	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C	12mA
S325025T-25.000-X-R	Aker Technology Corp	S3	XO (Standard)	25 MHz	HCMOS	2.5V	±25ppm	-40°C ~ 85°C	8mA
S218025T-24.000-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.8V	±25ppm	-20°C ~ 70°C	5mA
S2M05T-24.000-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.62V ~ 3.63V	±50ppm	-20°C ~ 70°C	12mA
S23305T-50.000-R	Aker Technology Corp	S2	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	20mA
S233025T-25.000-R	Aker Technology Corp	S2	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	12mA
S23305T-26.000-R	Aker Technology Corp	S2	XO (Standard)	26 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	12mA
S23305T-50.000-X-R	Aker Technology Corp	S2	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	20mA
S2M025T-25.000-X-R	Aker Technology Corp	S2	XO (Standard)	25 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-40°C ~ 85°C	12mA
S73305T-125.000-R	Aker Technology Corp	S7	XO (Standard)	125 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	30mA
S53305T-125.000-X-R	Aker Technology Corp	S5	XO (Standard)	125 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	40mA
S11805T-25.000-X1-R	Aker Technology Corp	S1 X1	XO (Standard)	25 MHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C	5mA
