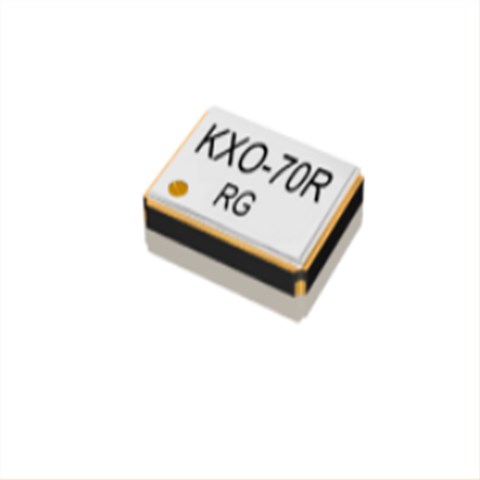

进口晶振,12.92500 KXO-70R晶振,GEYER有源晶体

进口晶振,12.92500 KXO-70R晶振,GEYER有源晶体进口晶振,12.92500 KXO-70R晶振,GEYER有源晶体

产品简介

进口晶振,12.92500 KXO-70R晶振,GEYER有源晶体公差:±50 ppm,工作温度:-40°C~+85°C,储存温度范围:-45°C~+90°C,负载电容:15pF,尺寸:2.5mmx2.0mm,频率:10.70MHz,进口晶体振荡器,石英晶振,SMD晶体振荡器,具有:低电压,低损耗,高精度,高质量等特点,应用于:智能家居电子晶振,安防晶振,安保晶振等。

产品详情

进口晶振,12.92500 KXO-70R晶振,GEYER有源晶体公差:±50 ppm,工作温度:-40°C~+85°C,储存温度范围:-45°C~+90°C,负载电容:15pF,尺寸:2.5mmx2.0mm,频率:10.70MHz,进口晶体振荡器,石英晶振,SMD晶体振荡器,具有:低电压,低损耗,高精度,高质量等特点,应用于:智能家居电子晶振,安防晶振,安保晶振等。

质量是GEYER晶振成功案例的基础。作为提供陶瓷面晶振产品领域的国际活跃专家,我们深知全面客户服务的意义和以客户需求为中心的物流设计。通过集中我们在亚洲工厂的主要生产,德国的高端生产以及专业和高性能的开发和服务团队,我们是可靠的合作伙伴。另外,根据DIN ISO 9001:2008,GEYER ELECTRONIC当然也获得了认证。GEYER晶振,贴片晶振,KX-C晶振。

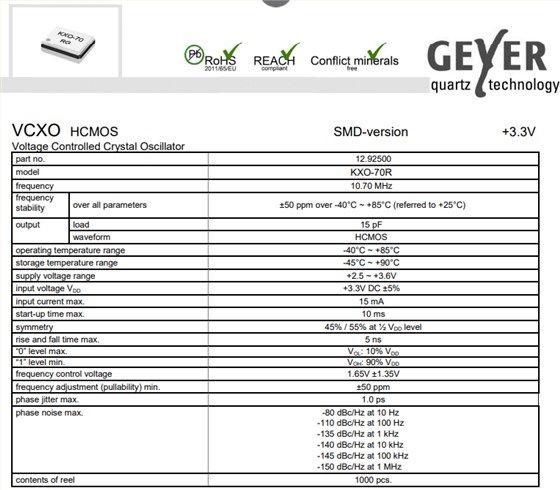

进口晶振,12.92500 KXO-70R晶振,GEYER有源晶体,参数表

part no. 12.92500
model石英晶体振荡器 KXO-70R
frequency 10.70 MHz
frequency
stability
over all parameters ±50 ppm over -40°C ~ +85°C (referred to +25°C)
output load 15 pF
waveform HCMOS
operating temperature range -40°C ~ +85°C
storage temperature range -45°C ~ +90°C
supply voltage range +2.5 ~ +3.6V
input voltage VDD +3.3V DC ±5%
input current max. 15 mA
start-up time max. 10 ms
symmetry 45% / 55% at ½ VDDlevel
rise and fall time max. 5 ns
“0” level max. VOL: 10% VDD
“1” level min. VOH: 90% VDD
frequency control voltage 1.65V ± 1.35V
frequency adjustment (pullability) min. ±50 ppm
phase jitter max. 1.0 ps
phase noise max. -80 dBc/Hz at 10 Hz
-110 dBc/Hz at 100 Hz
-135 dBc/Hz at 1 kHz
-140 dBc/Hz at 10 kHz
-145 dBc/Hz at 100 kHz
-150 dBc/Hz at 1 MHz
contents of reel 1000 pcs.

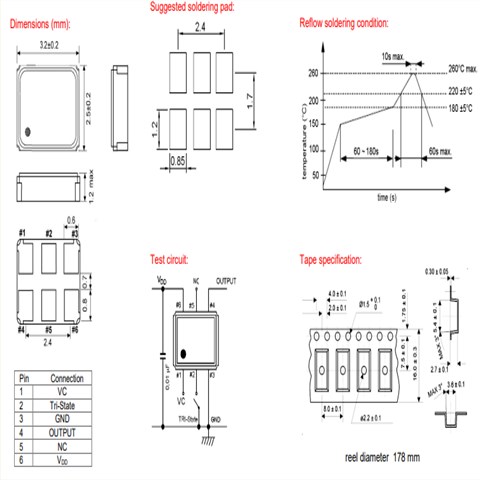

进口晶振,12.92500 KXO-70R晶振,GEYER有源晶体,尺寸图

KXO-70R1

KOX-70R

编码 晶振厂家 描述 型号 标准频率 频率容差 工作温度
12.95582 Geyer 晶振 XTAL OSC XO 14.7456MHZ SMD KXO-V95 14.7456 MHz ±50ppm -40°C ~ 85°C
12.95549 Geyer 晶振 XTAL OSC XO 32.0000MHZ SMD KXO-V95T 32 MHz ±50ppm -40°C ~ 85°C
12.95531 Geyer 晶振 XTAL OSC XO 3.6864MHZ SMD KXO-V95T 3.6864 MHz ±50ppm -40°C ~ 85°C
12.90328 Geyer 晶振 XTAL OSC XO 16.0000MHZ CMOS SMD KXO-V94T 16 MHz ±50ppm -40°C ~ 85°C
12.90321 Geyer 晶振 XTAL OSC XO 14.7456MHZ HCMOS SMD KXO-V94 14.7456 MHz ±50ppm -40°C ~ 85°C
12.95545 Geyer 晶振 XTAL OSC XO 20.0000MHZ SMD KXO-V95T 20 MHz ±50ppm -40°C ~ 85°C
12.95103 Geyer 晶振 XTAL OSC XO 32.0000MHZ SMD KXO-V96T 32 MHz ±50ppm -40°C ~ 85°C
12.9558 Geyer 晶振 XTAL OSC XO 3.579545MHZ SMD KXO-V95 3.579545 MHz ±50ppm -20°C ~ 70°C
12.95094 Geyer 晶振 XTAL OSC XO 14.31818MHZ SMD KXO-V96T 14.31818 MHz ±50ppm -40°C ~ 85°C
12.95034 壹兆晶振厂家 XTAL OSC XO 20.0000MHZ SMD KXO-V96T 20 MHz ±50ppm -40°C ~ 85°C
12.95542 Geyer 晶振 XTAL OSC XO 12.0000MHZ SMD KXO-V95T 12 MHz ±50ppm -40°C ~ 85°C
12.94474 Geyer 晶振 XTAL OSC XO 27.0000MHZ SMD KXO-V97T 27 MHz ±100ppm -40°C ~ 85°C
12.90343 Geyer 晶振 XTAL OSC XO 12.0000MHZ SMD KXO-V94T 12 MHz ±50ppm -40°C ~ 85°C
12.90325 Geyer 晶振 XTAL OSC XO 3.6864MHZ HCMOS SMD KXO-V94 3.6864 MHz ±50ppm -40°C ~ 85°C
12.90311 Geyer 晶振 XTAL OSC XO 14.7456MHZ HCMOS SMD KXO-V94 14.7456 MHz ±100ppm -40°C ~ 85°C
12.95128 Geyer 晶振 XTAL OSC XO 27.0000MHZ SMD KXO-V96E 27 MHz ±50ppm -40°C ~ 85°C
12.95102 Geyer 晶振 XTAL OSC XO 80.0000MHZ SMD KXO-V96T 80 MHz ±50ppm -40°C ~ 85°C
12.90333 Geyer 晶振 XTAL OSC XO 40.0000MHZ SMD KXO-V94T 40 MHz ±50ppm -40°C ~ 85°C
12.90337 Geyer 晶振 XTAL OSC XO 26.0000MHZ SMD KXO-V94T 26 MHz ±50ppm -40°C ~ 85°C
12.94273 Geyer 晶振 XTAL OSC XO 32.0000MHZ SMD KXO-V97T 32 MHz ±100ppm -40°C ~ 85°C
12.94365 Geyer 晶振 XTAL OSC XO 14.31818MHZ SMD KXO-V97T 14.31818 MHz ±100ppm -40°C ~ 85°C
12.95546 Geyer 晶振 XTAL OSC XO 26.0000MHZ SMD KXO-V95T 26 MHz ±50ppm -40°C ~ 85°C
12.92106 Geyer 晶振 XTAL OSC XO 65.0000MHZ SMD KXO-V97T 65 MHz ±100ppm -40°C ~ 85°C
12.95571 Geyer 晶振 XTAL OSC XO 32.7680KHZ SMD KXO-V95T 32.768 kHz ±30ppm -40°C ~ 85°C
12.90344 Geyer 晶振 XTAL OSC XO 4.0000MHZ SMD KXO-V94T 4 MHz ±50ppm -40°C ~ 85°C
12.95538 Geyer 晶振 XTAL OSC XO 27.1200MHZ SMD KXO-V95 27.12 MHz ±50ppm -20°C ~ 70°C
12.94364 Geyer 晶振 XTAL OSC XO 48.0000MHZ SMD KXO-V97T 48 MHz ±100ppm -40°C ~ 85°C
12.95568 Geyer 晶振 XTAL OSC XO 48.0000MHZ SMD KXO-V95F 48 MHz ±50ppm -40°C ~ 85°C
12.90324 Geyer 晶振 XTAL OSC XO 27.0000MHZ HCMOS SMD KXO-V94 27 MHz ±50ppm -40°C ~ 85°C
12.94609 Geyer 晶振 XTAL OSC XO 1.0000MHZ SMD KXO-V99 1 MHz ±50ppm -40°C ~ 85°C
12.95101 Geyer 晶振 XTAL OSC XO 48.0000MHZ SMD KXO-V96T 48 MHz ±50ppm -40°C ~ 85°C
12.92146 Geyer 晶振 XTAL OSC XO 22.1184MHZ SMD KXO-V97T 22.1184 MHz ±100ppm -40°C ~ 85°C
12.90327 Geyer 晶振 XTAL OSC XO 48.0000MHZ HCMOS SMD KXO-V94T 48 MHz ±50ppm -40°C ~ 85°C
12.95091 Geyer 晶振 XTAL OSC XO 10.0000MHZ SMD KXO-V96T 10 MHz ±50ppm -40°C ~ 85°C
12.94449 Geyer 晶振 XTAL OSC XO 18.4320MHZ SMD KXO-V97T 18.432 MHz ±100ppm -40°C ~ 85°C
12.94456 Geyer 晶振 XTAL OSC XO 3.6864MHZ SMD KXO-V97T 3.6864 MHz ±100ppm -40°C ~ 85°C
12.95551 Geyer 晶振 XTAL OSC XO 48.0000MHZ SMD KXO-V95T 48 MHz ±50ppm -40°C ~ 85°C
12.90322 Geyer 晶振 XTAL OSC XO 20.0000MHZ CMOS SMD KXO-V94T 20 MHz ±50ppm -40°C ~ 85°C
12.95524 Geyer 晶振 XTAL OSC XO 25.0000MHZ SMD KXO-V95E 25 MHz ±100ppm -40°C ~ 85°C
12.9034 Geyer 晶振 XTAL OSC XO 32.7680KHZ SMD KXO-V94T 32.768 kHz ±20ppm -40°C ~ 85°C
12.95543 Geyer 晶振 XTAL OSC XO 14.31818MHZ SMD KXO-V95T 14.31818 MHz ±50ppm -40°C ~ 85°C
12.95104 Geyer 晶振 XTAL OSC XO 32.7680KHZ SMD KXO-V96-18 32.768 kHz ±50ppm -20°C ~ 70°C
12.94422 Geyer 晶振 XTAL OSC XO 11.0592MHZ SMD KXO-V97T 11.0592 MHz ±100ppm -40°C ~ 85°C
12.95548 Geyer 晶振 XTAL OSC XO 4.0000MHZ SMD KXO-V95T 4 MHz ±50ppm -40°C ~ 85°C
