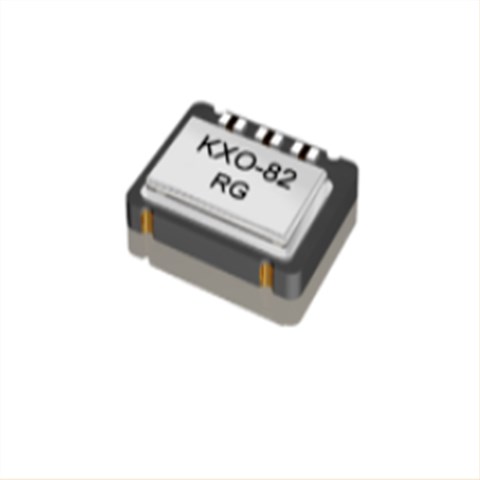

压控温补晶体振荡器,12.97103 KXO-82晶振,GEYER晶体振荡器

压控温补晶体振荡器,12.97103 KXO-82晶振,GEYER晶体振荡器，公差:±2.5 ppm，工作温度：-30°C~+80°C，储存温度范围：-40°C~+85°C，尺寸：7.0mmx5.0mm，频率：13.0MHz，进口晶振，压控温补晶振，贴片晶振，石英晶振，具有：低抖动，低电压，低损耗，小型，轻薄型等特点，应用于：智能手机，蓝牙模块晶振，汽车音响等。

GEYER晶振作为电池和频率的大体积贴片晶振产品生产经验丰富的国际运营专家，我们自然了解对客户至关重要的一切：从最初的咨询到生产和交付的一流质量。高素质的开发和服务团队以及德国的高端生产确保我们在任何时候都能完全满足这一要求。因此，我们公司通过了DIN ISO 9001：2008认证，这几乎是不言而喻的

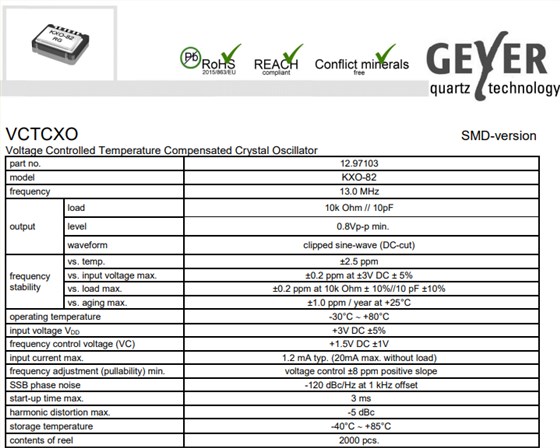

压控温补晶体振荡器,12.97103 KXO-82晶振,GEYER晶体振荡器，参数表

part no.		12.97103
model贴片晶振		KXO-82
frequency		13.0 MHz
output	load	10k Ohm // 10pF
	level	0.8Vp-p min.
	waveform	clipped sine-wave (DC-cut)
frequency stability	vs. temp.	±2.5 ppm
	vs. input voltage max.	±0.2 ppm at ±3V DC ± 5%
	vs. load max.	±0.2 ppm at 10k Ohm ± 10%//10 pF ± 10%
	vs. aging max.	± 1.0 ppm / year at +25°C
operating temperature		-30°C~+80°C
input voltage VDD		+3V DC ±5%
frequency control voltage (VC)		+1.5V DC ± 1V
input current max.		1.2 mA typ. (20mA max. without load)
frequency adjustment (pullability) min.		voltage control ±8 ppm positive slope
SSB phase noise		- 120 dBc/Hz at 1 kHz offse
start-up time max.		3 ms
harmonic distortion max.		-5 dBc
storage temperature		-40°C~+85°C
contents of reel		2000 pcs.

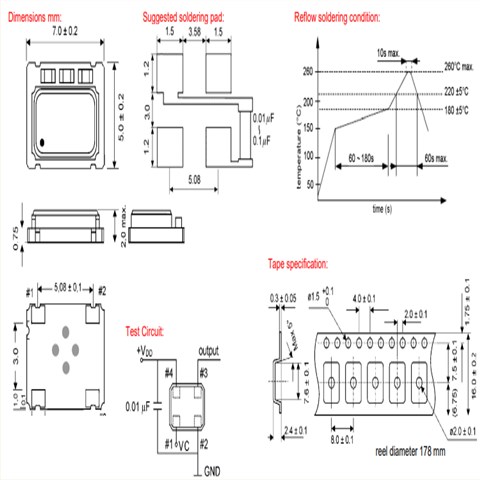

压控温补晶体振荡器,12.97103 KXO-82晶振,GEYER晶体振荡器，尺寸图

KXO-82

编码	晶振厂家	描述	型号	标准频率	频率容差	工作温度
12.95582	Geyer 晶振	XTAL OSC XO 14.7456MHZ SMD	KXO-V95	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95549	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V95T	32 MHz	±50ppm	-40°C ~ 85°C
12.95531	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V95T	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90328	Geyer 晶振	XTAL OSC XO 16.0000MHZ CMOS SMD	KXO-V94T	16 MHz	±50ppm	-40°C ~ 85°C
12.90321	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95545	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V95T	20 MHz	±50ppm	-40°C ~ 85°C
12.95103	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V96T	32 MHz	±50ppm	-40°C ~ 85°C
12.9558	Geyer 晶振	XTAL OSC XO 3.579545MHZ SMD	KXO-V95	3.579545 MHz	±50ppm	-20°C ~ 70°C
12.95094	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V96T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95034	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V96T	20 MHz	±50ppm	-40°C ~ 85°C
12.95542	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V95T	12 MHz	±50ppm	-40°C ~ 85°C
12.94474	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V97T	27 MHz	±100ppm	-40°C ~ 85°C
12.90343	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V94T	12 MHz	±50ppm	-40°C ~ 85°C
12.90325	晶振厂家	XTAL OSC XO 3.6864MHZ HCMOS SMD	KXO-V94	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90311	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±100ppm	-40°C ~ 85°C
12.95128	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V96E	27 MHz	±50ppm	-40°C ~ 85°C
12.95102	Geyer 晶振	XTAL OSC XO 80.0000MHZ SMD	KXO-V96T	80 MHz	±50ppm	-40°C ~ 85°C
12.90333	Geyer 晶振	XTAL OSC XO 40.0000MHZ SMD	KXO-V94T	40 MHz	±50ppm	-40°C ~ 85°C
12.90337	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V94T	26 MHz	±50ppm	-40°C ~ 85°C
12.94273	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V97T	32 MHz	±100ppm	-40°C ~ 85°C
12.94365	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V97T	14.31818 MHz	±100ppm	-40°C ~ 85°C
12.95546	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V95T	26 MHz	±50ppm	-40°C ~ 85°C
12.92106	Geyer 晶振	XTAL OSC XO 65.0000MHZ SMD	KXO-V97T	65 MHz	±100ppm	-40°C ~ 85°C
12.95571	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V95T	32.768 kHz	±30ppm	-40°C ~ 85°C
