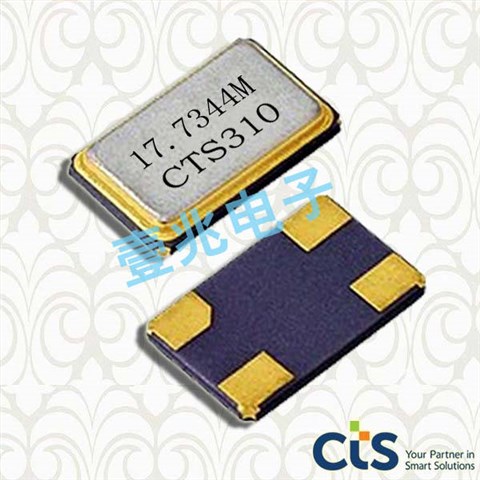

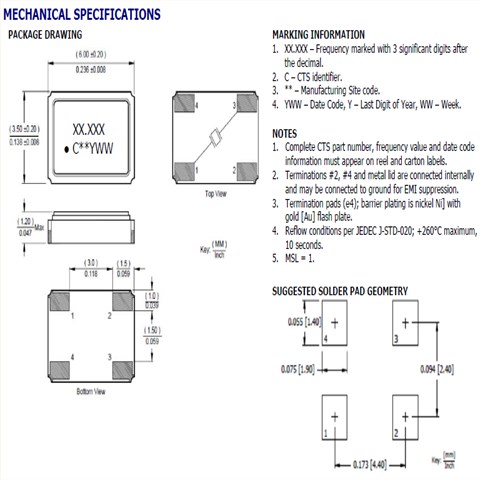

406C35B10M24500美国CTS晶振,406蓝牙晶振，编码：406C35B10M24500，型号：406系列晶振，工作温度：-20°C ~ 70°C，尺寸：6.0*3.5mm，频率：10.245MHz，负载电容：13pF，精度：±30ppm，西迪斯Oscillator ，贴片晶体，标准6.0毫米x 3.5mm毫米陶瓷表贴封装

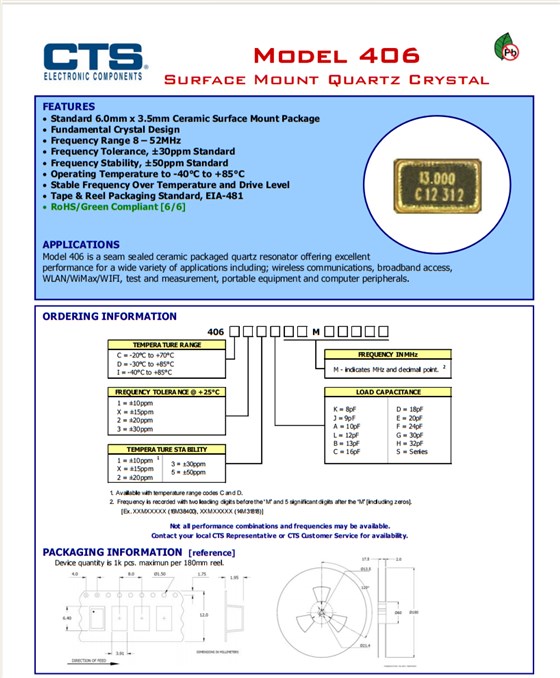

基本晶体设计
频率范围为8-52兆赫
频率容差，30ppm标准
频率稳定性，50ppm标准
工作温度为-40℃至+85℃
温度和驱动电平下的稳定频率
胶带和卷轴包装标准，EIA-481，406型是接缝密封陶瓷封装石英谐振器，具有出色的
各种应用的性能，包括:无线通信、宽带接入，
WLAN/WiMax/WIFI、测试和测量、便携式设备和计算机外设。
406C35B10M24500美国CTS晶振,406蓝牙晶振，参数表
| PARAMETER | VALUE | ||||||||||||
| Frequency Range | 6.76438MHz to 54MHz | ||||||||||||
| Operating Mode | Fundamental | ||||||||||||
| Crystal Cut | AT-Cut | ||||||||||||
| Frequency Tolerance @ +25°C | ±30ppm, Standard | ||||||||||||
|
Frequency Stability Tolerance [Operating Temperature Range, Referenced to +25°C Reading] |
±30ppm, Standard | ||||||||||||
| Operating Temperature Ranges | -20°C to +70°C | ||||||||||||
| -30°C to +85°C | -40°C to +85°C | ||||||||||||
| Equivalent Series Resistance[Maximum] | 6.76438MHz - <11MHz | 80 Ohms | |||||||||||
| 11MHz - <15MHz | 60 Ohms | ||||||||||||
| 15MHz - <35MHz | 50 Ohms | ||||||||||||
| 35MHz - 54MHz | 40 Ohms | ||||||||||||
| Load Capacitance | See Ordering Information | ||||||||||||
| Shunt Capacitance[C0] | 5.0pF Typical, 7.0pF Maximum | ||||||||||||
| Drive Level | 10µW Typ., 200µW Max. | ||||||||||||
| Aging @ +25°C | ±3ppm/yr Typical | ||||||||||||
| Insulation Resistance | 500M Ohms @ DC 100V | ||||||||||||
| Storage Temperature Range | -40°C to +100°C | ||||||||||||
| Manufacturer Part Number原厂编码 | SMD晶体 | Series型号 | Frequency | Frequency Stability频率稳定度 | Frequency Tolerance频率偏差 | Load Capacitance负载电容 | ESR (Equivalent Series Resistance)电阻 | Operating Temperature 工作温度 |
| 406C35B10M24500 | CTS-Frequency Controls | 406 | 10.245MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B10M24500 | CTS-Frequency Controls | 406 | 10.245MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B10M24500 | CTS-Frequency Controls | 406 | 10.245MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406I35D08M00000 | CTS-Frequency Controls | 406 | 8MHz | ±50ppm | ±30ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| 406I35D08M00000 | CTS-Frequency Controls | 406 | 8MHz | ±50ppm | ±30ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| 406I35D08M00000 | CTS-Frequency Controls | 406 | 8MHz | ±50ppm | ±30ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| 406C35D08M00000 | CTS-Frequency Controls | 406 | 8MHz | ±50ppm | ±30ppm | 18pF | - | -20°C ~ 70°C |
| 406C35D08M00000 | CTS-Frequency Controls | 406 | 8MHz | ±50ppm | ±30ppm | 18pF | - | -20°C ~ 70°C |
| 406C35D08M00000 | CTS-Frequency Controls | 406 | 8MHz | ±50ppm | ±30ppm | 18pF | - | -20°C ~ 70°C |
| 406C35B13M00000 | CTS-Frequency Controls | 406 | 13MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B13M00000 | CTS-Frequency Controls | 406 | 13MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B13M00000 | CTS-Frequency Controls | 406 | 13MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35D12M00000 | CTS-Frequency Controls | 406 | 12MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 406C35D12M00000 | CTS-Frequency Controls | 406 | 12MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 406C35D12M00000 | CTS-Frequency Controls | 406 | 12MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B14M00000 | CTS-Frequency Controls | 406 | 14MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B14M00000 | CTS-Frequency Controls | 406 | 14MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B14M00000 | CTS-Frequency Controls | 406 | 14MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B24M57600 | CTS-Frequency Controls | 406 | 24.576MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
