402F271XXCJR,2016贴片晶体,美国CTS晶振

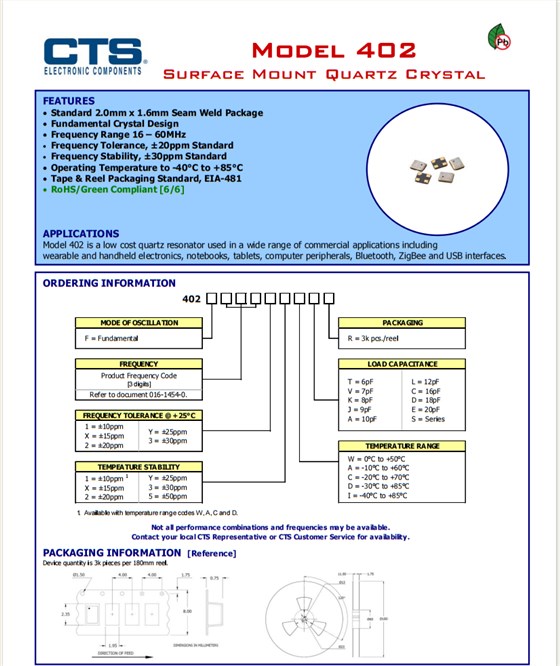

402F271XXCJR,2016贴片晶体,美国CTS晶振，编码：402F271XXCJR，型号：402系列晶振，工作温度：-20°C ~ 70°C，尺寸：2.0*1.6mm，频率：27.12MHz，负载电容：9pF，精度：±15ppm，CTS晶振，无源晶振，标准2.0毫米x 1.6mm毫米缝焊包基本晶体设计频率范围为16–60 MHz 频率容差，20ppm标准频率稳定性，30ppm标准工作温度为-40℃至+85℃ 胶带和卷轴包装标准，EIA-481，402型是一种低成本石英晶体谐振器，广泛应用于商业领域，包括可穿戴和手持电子产品、笔记本电脑、平板电脑、计算机外设、蓝牙、ZigBee和USB接口。

402F271XXCJR,2016贴片晶体,美国CTS晶振，参数表

PARAMETER

VALUE

Frequency Range

16MHz to 60MHz

Operating Mode

Fundamental

Crystal Cut

AT-Cut

Frequency Tolerance @ +25°C

±20ppm, Standard

Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]

±30ppm, Standard

Operating Temperature Ranges

-10°C to +60°C

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

Equivalent Series Resistance[Maximum]

16MHz - <20MHz

120 Ohms

20MHz - <30MHz

100 Ohms

30MHz - <36MHz

80 Ohms

36MHz - 60MHz

60 Ohms

Load Capacitance

See Ordering Information

Shunt Capacitance[C0]

3.0pF Typical, 5.0pF Maximum

Drive Level

10µW Typ., 200µW Max.

Aging @ +25°C

±3ppm/yr Typical

Insulation Resistance

500M Ohms @ DC 100V

Storage Temperature Range

-40°C to +90°C

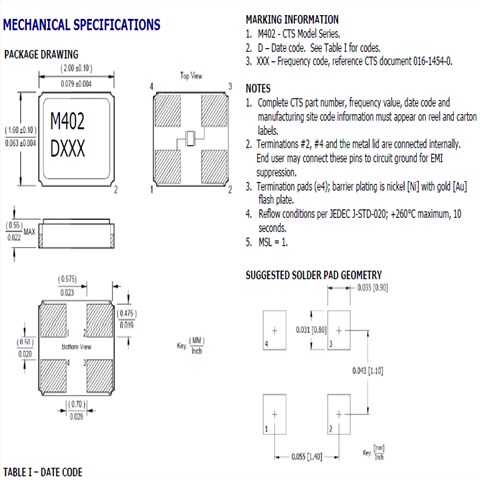

402F271XXCJR,2016贴片晶体,美国CTS晶振，尺寸图

Manufacturer Part Number原厂编码	西迪斯美国进口晶振	Series型号	Type 系列	Frequency	Frequency Tolerance频率偏差	Load Capacitance负载电容	Operating Temperature工作温度
402F271XXCKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±15ppm	8pF	-20°C ~ 70°C
402F271XXCJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±15ppm	9pF	-20°C ~ 70°C
402F271XXCAR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±15ppm	10pF	-20°C ~ 70°C
402F271XXCLR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±15ppm	12pF	-20°C ~ 70°C
402F271XXCDR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±15ppm	18pF	-20°C ~ 70°C
402F27133CKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±30ppm	8pF	-20°C ~ 70°C
402F27133CJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±30ppm	9pF	-20°C ~ 70°C
402F27133CAR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±30ppm	10pF	-20°C ~ 70°C
402F27133CLR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±30ppm	12pF	-20°C ~ 70°C
402F27133CDR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±30ppm	18pF	-20°C ~ 70°C
402F2711XIKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	8pF	-40°C ~ 85°C
402F2711XIJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	9pF	-40°C ~ 85°C
402F2711XIAR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	10pF	-40°C ~ 85°C
402F2711XILR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	12pF	-40°C ~ 85°C
402F2711XIDR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	18pF	-40°C ~ 85°C
402F27112IKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	8pF	-40°C ~ 85°C
402F27112IJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	9pF	-40°C ~ 85°C
402F27112IAR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	10pF	-40°C ~ 85°C
402F27112ILR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	12pF	-40°C ~ 85°C
402F27112IDR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	18pF	-40°C ~ 85°C
402F27122IKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±20ppm	8pF	-40°C ~ 85°C
402F27122IJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±20ppm	9pF	-40°C ~ 85°C
402F27122IAR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±20ppm	10pF	-40°C ~ 85°C
402F27122ILR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±20ppm	12pF	-40°C ~ 85°C
402F27122IDR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±20ppm	18pF	-40°C ~ 85°C
402F27111CKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	8pF	-20°C ~ 70°C
402F27111CJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	9pF	-20°C ~ 70°C
