7L-38.400MCS-T,2520高精度温补晶振,台产晶振

7L-38.400MCS-T,2520高精度温补晶振,台产晶振，编码：7L-38.400MCS-T，型号：7L，工作温度：-30°C ~ 85°C，尺寸：2.5mm*2.0mm，频率：38.4 MHz，精度：±2ppm，电压：2.5V，电流：2mA，台湾进口晶振，温度补偿晶振，温补有源晶振，石英晶体振荡器，有源晶振SPXO，温补晶振(TCXO)产品本身具有温度补偿作用,高低温度稳定性:频率精度高0.5PPM~2.0PPM,常用频率:26M,33.6M,38.4M,40M.因产品性能稳定,精度高等优势,被广泛应用到一些比较高端的数码通讯产品领域,GPS全球定位系统,智能手机,WiMAX和无线通信等产品,符合RoHS/无铅.

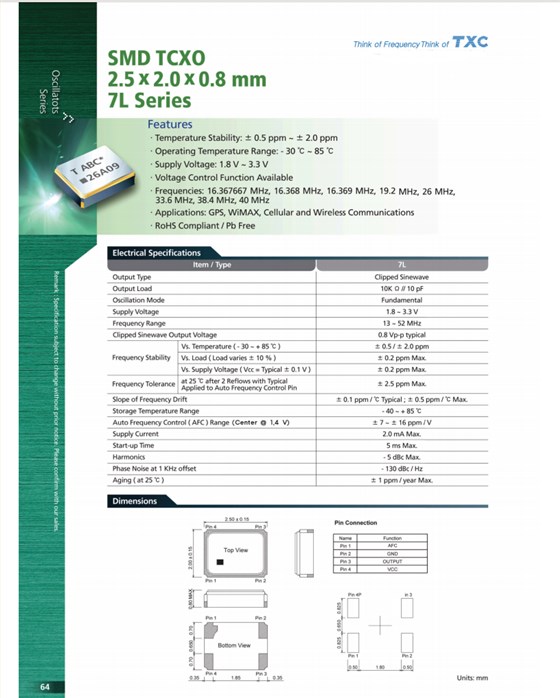

7L-38.400MCS-T,2520高精度温补晶振,台产晶振，参数表

编码	7L-38.400MCS-T
品牌	TXC
型号	7L
频率	38.4 MHz
精度	±2ppm
电压	2.5V
电流	2mA
工作温度	-30°C ~ 85°C
尺寸	2.5mm*2.0mm

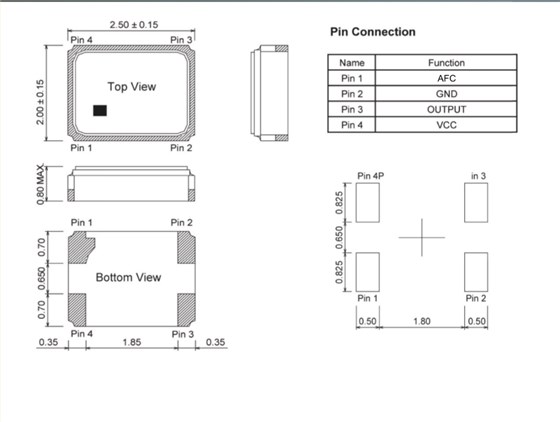

7L-38.400MCS-T,2520高精度温补晶振,台产晶振，尺寸图

Mfr Part #	台产晶振	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability	Operating Temperature
7L-38.400MCS-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-19.200MCS-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-26.000MCS-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-40.000MCS-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-19.200MBS-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-26.000MBS-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-38.400MBS-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-40.000MBS-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-26.000MBN-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-26.000MCN-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-26.000MDN-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-26.000MDS-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-38.400MBN-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-38.400MCN-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-38.400MDN-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-38.400MDS-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-40.000MBN-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-40.000MCN-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-40.000MDN-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-40.000MDS-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-19.200MCG-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-38.400MCG-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-16.368MCG-T	TXC CORPORATION	7L	TCXO	16.368 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-16.369MCG-T	TXC CORPORATION	7L	TCXO	16.369 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-16.368MBG-T	TXC CORPORATION	7L	TCXO	16.368 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-16.369MBG-T	TXC CORPORATION	7L	TCXO	16.369 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-19.200MBG-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-26.000MBG-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-38.400MBG-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-32.000MBH-T	TXC CORPORATION	7L	TCXO	32 MHz	Clipped Sine Wave	3.3V	±1ppm	-30°C ~ 85°C
7L-38.400MDG-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-16.368MDG-T	TXC CORPORATION	7L	TCXO	16.368 MHz	Clipped Sine Wave	1.8V	±2ppm	-40°C ~ 85°C
7L-16.369MDG-T	TXC CORPORATION	7L	TCXO	16.369 MHz	Clipped Sine Wave	1.8V	±2ppm	-40°C ~ 85°C
7L-19.200MBV-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-19.200MCV-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
