3225压控温补晶振,TXC进口晶体,7Q-12.800MCS-T，编码：7Q-12.800MCS-T，型号：7Q，工作温度：-30°C ~ 85°C，尺寸：3.2mm*2.5mm，频率：12.8 MHz，精度：±2ppm，电压：2.5V，电流：2mA，压控温补晶振，有源晶振SPXO，3225进口晶振，石英晶体振荡器，压控温补振荡器VC-TCXO，具有最适合于移动通信设备用途的高稳定的频率温度特性.为对应低电源电压的产品.(可对应DC+1.8V±0.1Vto+3.2V±0.1V)高度:最高1.0mm,体积:0.007cm3,重量:0.024g,超小型,轻型.低消耗电流,表面贴片型产品.(可对应回流焊)无铅产品.满足无铅焊接的回流温度曲线要求。
3225压控温补晶振,TXC进口晶体,7Q-12.800MCS-T，参数表
| 编码 |
7Q-12.800MCS-T |
| 品牌 | TXC |
| 型号 | 7Q |
| 频率 | 12.8 MHz |
| 精度 |
±2ppm |
| 电压 |
2.5V |
| 电流 |
2mA |
| 工作温度 |
-30°C ~ 85°C |
| 尺寸 | 3.2mm*2.5mm |

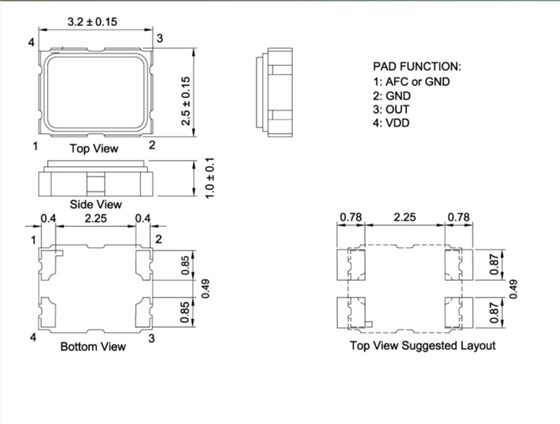

3225压控温补晶振,TXC进口晶体,7Q-12.800MCS-T，尺寸图
| Mfr Part # | 3225进口晶振 | Series | Type | Frequency | Output | Voltage - Supply | Frequency Stability |
| 7Q-16.367667MBN-T | TXC CORPORATION | 7Q | TCXO | 16.367667 MHz | Clipped Sine Wave | 3.3V | ±2ppm |
| 7Q-16.368MBN-T | TXC CORPORATION | 7Q | TCXO | 16.368 MHz | Clipped Sine Wave | 3.3V | ±2ppm |
| 7Q-19.200MBS-T | TXC CORPORATION | 7Q | VCTCXO | 19.2 MHz | Clipped Sine Wave | 3.3V | ±2ppm |
| 7Q-26.000MBS-T | TXC CORPORATION | 7Q | VCTCXO | 26 MHz | Clipped Sine Wave | 3.3V | ±2ppm |
| 7Q-40.000MBS-T | TXC CORPORATION | 7Q | VCTCXO | 40 MHz | Clipped Sine Wave | 3.3V | ±2ppm |
| 7Q-16.367667MBG-T | TXC CORPORATION | 7Q | TCXO | 16.367667 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
| 7Q-16.3676MBG-T | TXC CORPORATION | 7Q | TCXO | 16.3676 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
| 7Q-16.368MBG-T | TXC CORPORATION | 7Q | TCXO | 16.368 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
| 7Q-16.369MBG-T | TXC CORPORATION | 7Q | TCXO | 16.369 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
| 7Q-26.000MBG-T | TXC CORPORATION | 7Q | TCXO | 26 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
| 7Q-12.800MCS-T | TXC CORPORATION | 7Q | VCTCXO | 12.8 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-16.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 16 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-16.3676MCS-T | TXC CORPORATION | 7Q | VCTCXO | 16.3676 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-16.367667MCS-T | TXC CORPORATION | 7Q | VCTCXO | 16.367667 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-16.368MCS-T | TXC CORPORATION | 7Q | VCTCXO | 16.368 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-16.369MCS-T | TXC CORPORATION | 7Q | VCTCXO | 16.369 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-19.200MCS-T | TXC CORPORATION | 7Q | VCTCXO | 19.2 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-20.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 20 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-20.800MCS-T | TXC CORPORATION | 7Q | VCTCXO | 20.8 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-24.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 24 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-26.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 26 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-27.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 27 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-38.400MCS-T | TXC CORPORATION | 7Q | VCTCXO | 38.4 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-40.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 40 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
| 7Q-12.800MCG-T | TXC CORPORATION | 7Q | TCXO | 12.8 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-16.000MCG-T | TXC CORPORATION | 7Q | TCXO | 16 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-16.3676MCG-T | TXC CORPORATION | 7Q | TCXO | 16.3676 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-16.367667MCG-T | TXC CORPORATION | 7Q | TCXO | 16.367667 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-16.368MCG-T | TXC CORPORATION | 7Q | TCXO | 16.368 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-16.369MCG-T | TXC CORPORATION | 7Q | TCXO | 16.369 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-19.200MCG-T | TXC CORPORATION | 7Q | TCXO | 19.2 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-20.000MCG-T | TXC CORPORATION | 7Q | TCXO | 20 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-20.800MCG-T | TXC CORPORATION | 7Q | TCXO | 20.8 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-24.000MCG-T | TXC CORPORATION | 7Q | TCXO | 24 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-26.000MCG-T | TXC CORPORATION | 7Q | TCXO | 26 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-27.000MCG-T | TXC CORPORATION | 7Q | TCXO | 27 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
| 7Q-38.400MCG-T | TXC CORPORATION | 7Q | TCXO | 38.4 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
