AUZ-32.768KBE-T,有源晶振32.768K,TXC晶振

AUZ-32.768KBE-T,有源晶振32.768K,TXC晶振，编码：AUZ-32.768KBE-T，型号：AUZ，工作温度：-40°C ~ 85°，尺寸：3.2mm*2.5mm，频率：32.768 kHz，精度：±50ppm，电压：3.3V，电流：6mA，进口石英晶体振荡器，XO振荡器，有源晶振，表晶32.768K，进口晶振，超小的SMD接缝密封的时钟晶体振荡器单元，ROHS符合无铅，产品广泛应用于智能家具家电，智能手机，平板电脑，无线电话，网络设备，工业设备等用途。

AUZ-32.768KBE-T,有源晶振32.768K,TXC晶振，参数表

编码	AUZ-32.768KBE-T
品牌	TXC
型号	AUZ
频率	32.768 kHz
精度	±50ppm
电压	3.3V
电流	6mA
工作温度	-40°C ~ 85°
尺寸	3.2mm*2.5mm

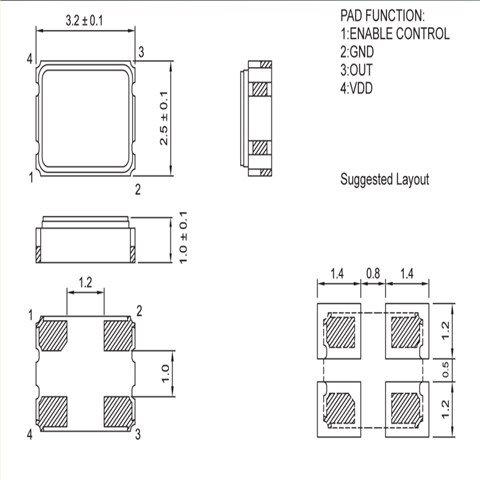

AUZ-32.768KBE-T,有源晶振32.768K,TXC晶振，尺寸图

Mfr Part #	时钟晶体振荡器	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability	Operating Temperature
AU-12.288MBE-T	TXC CORPORATION	AU	XO (Standard)	12.288 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-24.000MBE-T	TXC CORPORATION	AU	XO (Standard)	24 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-50.000MBE-T	TXC CORPORATION	AU	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-25.000MBE-T	TXC CORPORATION	AU	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-26.000MBE-T	TXC CORPORATION	AU	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AC-50.000MBE-T	TXC CORPORATION	AC	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-48.000MBE-T	TXC CORPORATION	AU	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-28.63636MBE-T	TXC CORPORATION	AU	XO (Standard)	28.63636 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-22.5792MDE-T	TXC CORPORATION	AU	XO (Standard)	22.5792 MHz	-	1.8V	-	-
AU-26.000MDE-T	TXC CORPORATION	AU	XO (Standard)	26 MHz	-	1.8V	-	-
AU-66.000MBE-T	TXC CORPORATION	AU	XO (Standard)	66 MHz	-	3.3V	-	-
AU-30.000MBE-T	TXC CORPORATION	AU	XO (Standard)	30 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-33.333MBE-T	TXC CORPORATION	AU	XO (Standard)	33.333 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AQ-16.369MDG-T	TXC CORPORATION	AQ	TCXO	16.369 MHz	Clipped Sine Wave	1.68V ~ 3.63V	±500ppb	-40°C ~ 105°C
AQ-40.000MCN-T	TXC CORPORATION	AQ	TCXO	40 MHz	Clipped Sine Wave	1.68V ~ 3.63V	-	-40°C ~ 105°C
AUZ-32.768KDE-T	TXC CORPORATION	AUZ	XO (Standard)	32.768 MHz	-	1.8V	-	-
AC-113.500MBE-T	TXC CORPORATION	AC	XO (Standard)	113.5 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AC-12.000MBE-T	TXC CORPORATION	AC	XO (Standard)	12 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AC-27.000MBE-T	TXC CORPORATION	AC	XO (Standard)	27 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AC-33.333MBE-T	TXC CORPORATION	AC	XO (Standard)	33.333 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AC-54.000MBE-T	TXC CORPORATION	AC	XO (Standard)	54 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AC-13.500MCE-T	TXC CORPORATION	AC	XO (Standard)	13.5 MHz	CMOS	2.5V	±50ppm	-40°C ~ 85°C
AC-40.000MDE-T	TXC CORPORATION	AC	XO (Standard)	40 MHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C
AC-48.000MBE-T	TXC CORPORATION	AC	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AC-20.000MCE-T	TXC CORPORATION	AC	XO (Standard)	20 MHz	CMOS	2.5V	±50ppm	-40°C ~ 85°C
AC-26.000MBD-T	TXC CORPORATION	AC	XO (Standard)	26 MHz	CMOS	3.3V	-	-
AC-27.000MCE-T	TXC CORPORATION	AC	XO (Standard)	27 MHz	CMOS	2.5V	±50ppm	-40°C ~ 85°C
AC-30.000MBE-T	TXC CORPORATION	AC	XO (Standard)	30 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AC-34.560MBE-T	TXC CORPORATION	AC	XO (Standard)	34.56 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-27.000MBE-T	TXC CORPORATION	AU	XO (Standard)	27 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-33.000MBE-T	TXC CORPORATION	AU	XO (Standard)	33 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-54.000MBE-T	TXC CORPORATION	AU	XO (Standard)	54 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-40.000MDE-T	TXC CORPORATION	AU	XO (Standard)	40 MHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C
AU-12.000MBE-T	TXC CORPORATION	AU	XO (Standard)	12 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-13.500MBE-T	TXC CORPORATION	AU	XO (Standard)	13.5 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-14.31818MBE-T	TXC CORPORATION	AU	XO (Standard)	14.31818 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AUZ-32.768KBE-T	TXC CORPORATION	AUZ	XO (Standard)	32.768 kHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AC-4.000MAE-T	TXC CORPORATION	AC	XO (Standard)	4 MHz	CMOS	5V	±50ppm	-40°C ~ 85°C
AC-3.6864MBE-T	TXC CORPORATION	AC	XO (Standard)	3.6864 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
