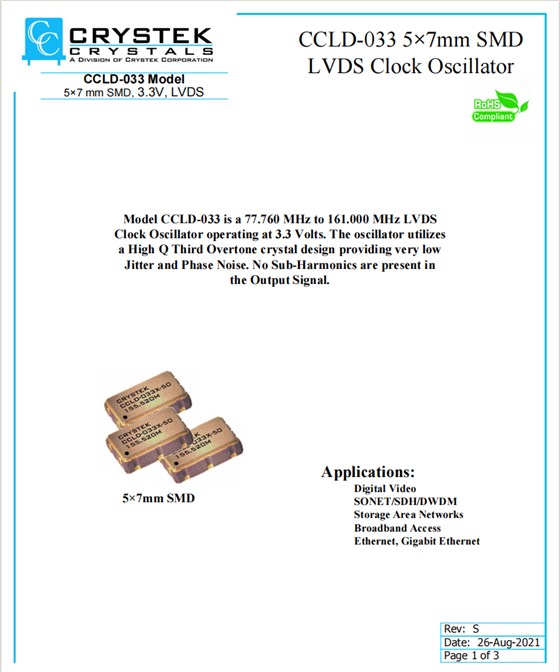

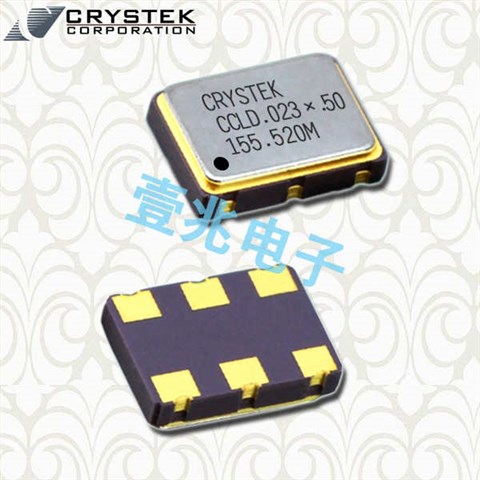

7050六脚差分晶体,CCLD-033-50-100.000,Crystek晶振，编码：CCLD-033-50-100.000，型号：CCLD，工作温度：0°C ~ 70°C，尺寸：7.0mm*5.0mm，频率：100MHz，精度：±50ppm，电压：3.3V，电流：66mA，输出方式：LVDS，差分输出振荡器，有源晶振SPXO，时钟晶体振荡器，石英晶体振荡器，有源7050贴片晶振，CCLD-033型号是一款77.760mhz至161.000mhz的LVDS，工作电压为3.3伏的时钟振荡器，振荡器利用了高Q第三泛音晶体设计提供非常低的抖动和相位噪声，不存在次谐波输出信号，产品广泛应用于数字视频，SONET/SDH/DWDM，存储区域网络，宽带接入，以太网，千兆以太网。
7050六脚差分晶体,CCLD-033-50-100.000,Crystek晶振，参数表
| 编码 |
CCLD-033-50-100.000 |
| 品牌 | Crystek |
| 型号 | CCLD |
| 频率 | 100MHz |
| 精度 |
±50ppm |
| 电压 |
3.3V |
| 电流 |
66mA |
| 输出方式 |
LVDS |
| 工作温度 |
0°C ~ 70°C |
| 尺寸 | 7.0mm*5.0mm |

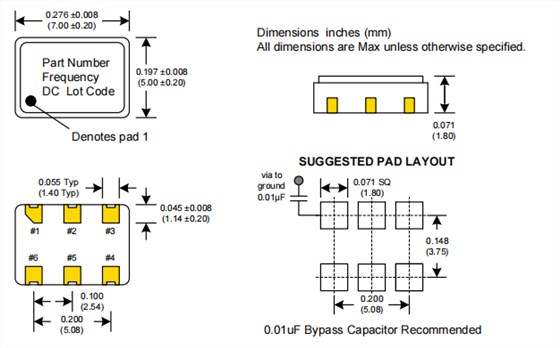

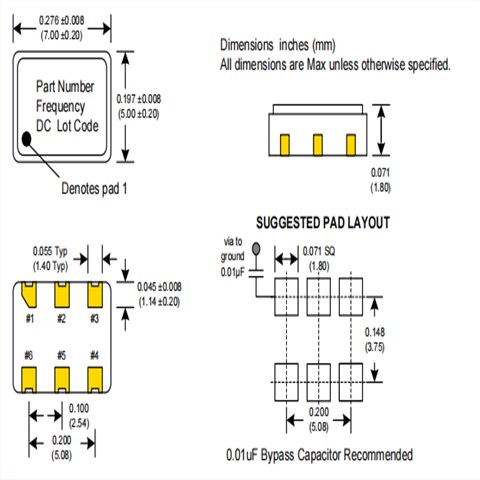

7050六脚差分晶体,CCLD-033-50-100.000,Crystek晶振，尺寸图
| Mfr Part # |
有源7050贴片晶振 |
Series | Type | Frequency | Output | Voltage - Supply |
| CCLD-033-50-100.000 | Crystek Corporation | CCLD | XO (Standard) | 100 MHz | LVDS | 3.3V |
| CCLD-033-50-125.000 | Crystek Corporation | CCLD | XO (Standard) | 125 MHz | LVDS | 3.3V |
| CCLD-033-50-156.250 | Crystek Corporation | CCLD | XO (Standard) | 156.25 MHz | LVDS | 3.3V |
| CCPD-034-50-200.000 | Crystek Corporation | CCPD-034 | XO (Standard) | 200 MHz | LVPECL | 3.3V |
| CCPD-033-50-156.250 | Crystek Corporation | CCPD-033 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| CCPD-033-50-161.1328 | Crystek Corporation | CCPD-033 | XO (Standard) | 161.1328 MHz | LVPECL | 3.3V |
| CCPD-033-50-100.000 | Crystek Corporation | CCPD-033 | XO (Standard) | 100 MHz | LVPECL | 3.3V |
| CCPD-033-50-106.250 | Crystek Corporation | CCPD-033 | XO (Standard) | 106.25 MHz | LVPECL | 3.3V |
| CCPD-033-50-77.760 | Crystek Corporation | CCPD-033 | XO (Standard) | 77.76 MHz | LVPECL | 3.3V |
| CCO-083-100.000 | Crystek Corporation | CCO | XO (Standard) | 100 MHz | Sine Wave | 3.3V |
| CCPD-033X-50-77.760 | Crystek Corporation | CCPD-033 | XO (Standard) | 77.76 MHz | LVPECL | 3.3V |
| CCPD-033X-25-77.76 | Crystek Corporation | CCPD-033 | XO (Standard) | 77.76 MHz | LVPECL | 3.3V |
| CCPD-033X-50-100.00 | Crystek Corporation | CCPD-033 | XO (Standard) | 100 MHz | LVPECL | 3.3V |
| CCPD-033X-25-100 | Crystek Corporation | CCPD-033 | XO (Standard) | 100 MHz | LVPECL | 3.3V |
| CCPD-033X-50-106.250 | Crystek Corporation | CCPD-033 | XO (Standard) | 106.25 MHz | LVPECL | 3.3V |
| CCPD-033X-50-125.000 | Crystek Corporation | CCPD-033 | XO (Standard) | 125 MHz | LVPECL | 3.3V |
| CCLD-033-50-133.000 | Crystek Corporation | CCLD | XO (Standard) | 133 MHz | LVDS | 3.3V |
| CCPD-033X-25-106.25 | Crystek Corporation | CCPD-033 | XO (Standard) | 106.25 MHz | LVPECL | 3.3V |
| CCPD-033X-25-125 | Crystek Corporation | CCPD-033 | XO (Standard) | 125 MHz | LVPECL | 3.3V |
| CCPD-033-50-155.520 | Crystek Corporation | CCPD-033 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V |
| CCPD-033M-50-156.250 | Crystek Corporation | CCPD-033 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| CCPD-033X-50-155.520 | Crystek Corporation | CCPD-033 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V |
| CCPD-033X-50-156.250 | Crystek Corporation | CCPD-033 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| CCPD-033X-25-155.520 | Crystek Corporation | CCPD-033 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V |
| CCPD-033X-25-156.25 | Crystek Corporation | CCPD-033 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| CCPD-033-50-125.000 | Crystek Corporation | CCPD-033 | XO (Standard) | 125 MHz | LVPECL | 3.3V |
| CCPD-033X-50-161.1328 | Crystek Corporation | CCPD-033 | XO (Standard) | 161.1328 MHz | LVPECL | 3.3V |
| CCPD-033X-25-161.1328 | Crystek Corporation | CCPD-033 | XO (Standard) | 161.1328 MHz | LVPECL | 3.3V |
| CCPD-034X-50-200.000 | Crystek Corporation | CCPD-034 | XO (Standard) | 200 MHz | LVPECL | 3.3V |
| CCPD-034-50-250.000 | Crystek Corporation | CCPD-034 | XO (Standard) | 250 MHz | LVPECL | 3.3V |
| CCPD-034M-50-245.760 | Crystek Corporation | CCPD-034 | XO (Standard) | 245.76 MHz | LVPECL | 3.3V |
