CCPD-034-50-200.000,7050差分石英晶体,Crystek进口晶振，编码：CCPD-034-50-200.000，型号：CCPD-034，工作温度：0°C ~ 70°C，尺寸：7.0mm*5.0mm，频率：200MHz，精度：±50ppm，电压：3.3V，电流：88mA，输出方式：LVPECL，Crystek石英贴片晶体，差分输出振荡器，石英晶体振荡器，5x7贴片晶体，美国进口晶振，工作电压为3.3V的时钟振荡器，振荡器采用高Q晶体设计，提供极低的抖动和相位噪声，中不存在次谐波输出信号，应用于平板电脑，数码电子产品，网络设备，测试和测量设备，工业设备，医疗设备，无线通信，无线基站等应用。
CCPD-034-50-200.000,7050差分石英晶体,Crystek进口晶振，参数表
| 编码 |
CCPD-034-50-200.000 |
| 品牌 | Crystek |
| 型号 | CCPD-034 |
| 频率 | 200MHz |
| 精度 |
±50ppm |
| 电压 |
3.3V |
| 电流 |
88mA |
| 输出方式 |
LVPECL |
| 工作温度 |
0°C ~ 70°C |
| 尺寸 | 7.0mm*5.0mm |

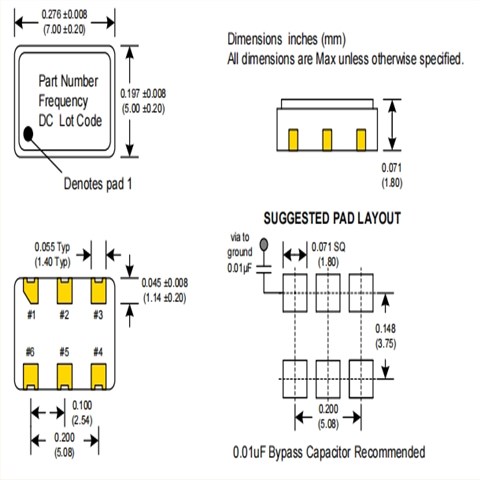

CCPD-034-50-200.000,7050差分石英晶体,Crystek进口晶振，尺寸图
| Mfr Part # | 石英晶体振荡器 | Series | Type | Frequency | Output | Voltage - Supply |
| CCPD-034-50-200.000 | Crystek Corporation | CCPD-034 | XO (Standard) | 200 MHz | LVPECL | 3.3V |
| CCPD-575X-20-100.000 | Crystek Corporation | CCPD-575 | XO (Standard) | 100 MHz | LVPECL | 3.3V |
| CCPD-575X-20-125.000 | Crystek Corporation | CCPD-575 | XO (Standard) | 125 MHz | LVPECL | 3.3V |
| CCPD-575X-50-100.000 | Crystek Corporation | CCPD-575 | XO (Standard) | 100 MHz | LVPECL | 3.3V |
| CCPD-575X-20-80.000 | Crystek Corporation | CCPD-575 | XO (Standard) | 80 MHz | LVPECL | 3.3V |
| CCPD-034X-50-200.000 | Crystek Corporation | CCPD-034 | XO (Standard) | 200 MHz | LVPECL | 3.3V |
| CCPD-034-50-250.000 | Crystek Corporation | CCPD-034 | XO (Standard) | 250 MHz | LVPECL | 3.3V |
| CCPD-034M-50-245.760 | Crystek Corporation | CCPD-034 | XO (Standard) | 245.76 MHz | LVPECL | 3.3V |
| CCPD-034M-50-250 | Crystek Corporation | CCPD-034 | XO (Standard) | 250 MHz | LVPECL | 3.3V |
| CCPD-034X-50-250.000 | Crystek Corporation | CCPD-034 | XO (Standard) | 250 MHz | LVPECL | 3.3V |
| CCPD-575X-50-122.880 | Crystek Corporation | CCPD-575 | XO (Standard) | 122.88 MHz | LVPECL | 3.3V |
| CCPD-034-50-212.500 | Crystek Corporation | CCPD-034 | XO (Standard) | 212.5 MHz | LVPECL | 3.3V |
| CCPD-034-50-311.040 | Crystek Corporation | CCPD-034 | XO (Standard) | 311.04 MHz | LVPECL | 3.3V |
| CCPD-034-50-312.500 | Crystek Corporation | CCPD-034 | XO (Standard) | 312.5 MHz | LVPECL | 3.3V |
| CCPD-034-400.000 | Crystek Corporation | CCPD-034 | XO (Standard) | 400 MHz | LVPECL | 3.3V |
| CCPD-034M-50-212.500 | Crystek Corporation | CCPD-034 | XO (Standard) | 212.5 MHz | LVPECL | 3.3V |
| CCPD-034M-50-311.040 | Crystek Corporation | CCPD-034 | XO (Standard) | 311.04 MHz | LVPECL | 3.3V |
| CCPD-034X-50-212.500 | Crystek Corporation | CCPD-034 | XO (Standard) | 212.5 MHz | LVPECL | 3.3V |
| CCPD-034X-50-311.040 | Crystek Corporation | CCPD-034 | XO (Standard) | 311.04 MHz | LVPECL | 3.3V |
| CCPD-912X-25-100 | Crystek Corporation | CCPD-912 | XO (Standard) | 100 MHz | LVPECL | 3.3V |
| CCPD-912X-25-106.25 | Crystek Corporation | CCPD-912 | XO (Standard) | 106.25 MHz | LVPECL | 3.3V |
| CCPD-912X-25-125 | Crystek Corporation | CCPD-912 | XO (Standard) | 125 MHz | LVPECL | 3.3V |
| CCPD-912X-25-155.52 | Crystek Corporation | CCPD-912 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V |
| CCPD-912X-25-156.25 | Crystek Corporation | CCPD-912 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| CCPD-912X-25-161.1328 | Crystek Corporation | CCPD-912 | XO (Standard) | 161.1328 MHz | LVPECL | 3.3V |
| CCPD-912X-25-77.76 | Crystek Corporation | CCPD-912 | XO (Standard) | 77.76 MHz | LVPECL | 3.3V |
