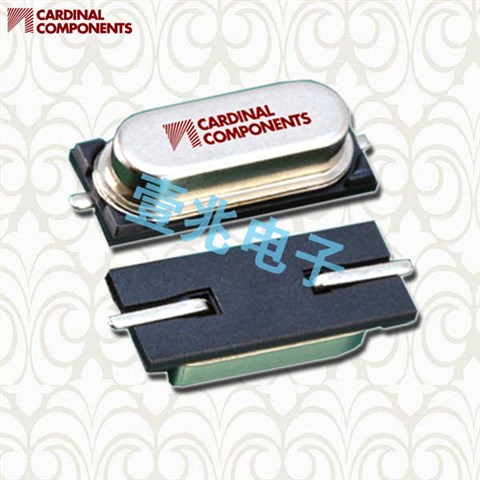

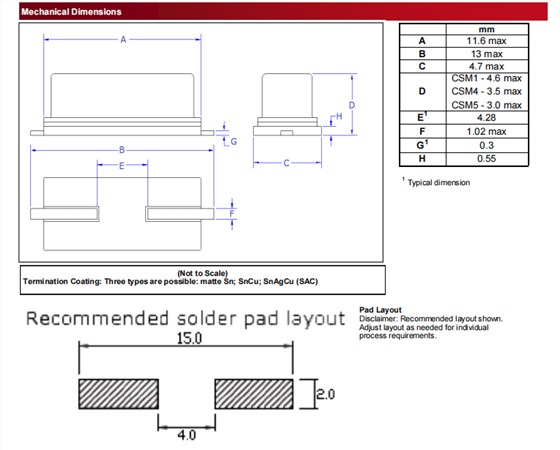

CSM1Z-A5B2C3-40-14.7456D20石英晶振,CSM1晶体谐振器，美国进口晶振，编码：CSM1Z-A5B2C3-40-14.7456D20，型号：CSM1系列晶振，工作温度：-20°C ~ 70°C，精度：±30ppm，尺寸：11.4*4.7mm，频率：14.7456 MHz，负载电容：20pF，晶体谐振器，贴片石英晶体，薄型表面贴装晶体。
封装非常适合自动化表面贴装assembly和回流焊实践， CSM1-4.6毫米；CSM4-3.5mm；CSM 5-3.0毫米高
AT切割水晶
3.579545 MHz至80 MHz，应用在蓝牙
无线局域网
物联网
微处理器(Microprocessor Unit)
微控制器
机顶盒上。

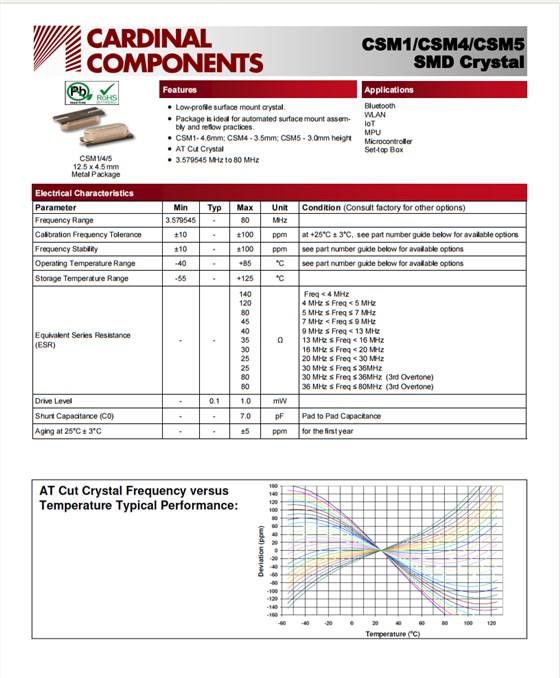

CSM1Z-A5B2C3-40-14.7456D20石英晶振,CSM1晶体谐振器，参数表
| 编码 | CSM1Z-A5B2C3-40-14.7456D20 |
| 品牌 | Cardinal晶振 |
| 型号 | CSM1 |
| 频率 | 14.7456 MHz |
| 精度 | ±30ppm |
| 负载电容 | 20pF |
| 工作温度 |
-20°C ~ 70°C |
| Mfr Part # | 壹兆晶振厂家 | Series | Frequency | Frequency Tolerance | Load Capacitance |
| CSM1Z-A5B2C3-40-14.7456D20 | Cardinal Components Inc. | CSM1 | 14.7456 MHz | ±30ppm | 20pF |
| CSM1Z-A5B2C5-60-24.0D18 | Cardinal Components Inc. | CSM1 | 24 MHz | ±20ppm | 18pF |
| CSM1Z-A2B2C3-40-30.0D18 | Cardinal Components Inc. | CSM1 | 30 MHz | ±30ppm | 18pF |
| CSM1Z-A5B2C5-40-14.7456D18 | Cardinal Components Inc. | CSM1 | 14.7456 MHz | ±20ppm | 18pF |
| CSM1Z-A0B2C3-50-16.257D18 | Cardinal Components Inc. | CSM1 | 16.257 MHz | ±30ppm | 18pF |
| CSM1Z-A5B2C3-40-14.31818D18 | Cardinal Components Inc. | CSM1 | 14.31818 MHz | ±30ppm | 18pF |
| CSM1Z-A0B2C3-50-22.1184D18 | Cardinal Components Inc. | CSM1 | 22.1184 MHz | ±30ppm | 18pF |
| CSM1Z-A0B2C3-50-28.63636D18 | Cardinal Components Inc. | CSM1 | 28.63636 MHz | ±30ppm | 18pF |
| CSM1Z-A0B2C3-50-24.0D18 | Cardinal Components Inc. | CSM1 | 24 MHz | ±30ppm | 18pF |
| CSM1Z-A5B2C5-50-20.0D18 | Cardinal Components Inc. | CSM1 | 20 MHz | ±20ppm | 18pF |
| CSM1Z-A0B2C3-70-14.7456D18 | Cardinal Components Inc. | CSM1 | 14.7456 MHz | ±30ppm | 18pF |
| CSM1Z-A0B2C3-50-15.360D18 | Cardinal Components Inc. | CSM1 | 15.36 MHz | ±30ppm | 18pF |
| CSM1Z-A0B2C3-50-16.000312D18 | Cardinal Components Inc. | CSM1 | 16.000312 MHz | ±30ppm | 18pF |
| CSM1Z-A0B2C3-50-16.0D18 | Cardinal Components Inc. | CSM1 | 16 MHz | ±30ppm | 18pF |
| CSM1Z-A0B2C3-80-13.5D18 | Cardinal Components Inc. | CSM1 | 13.5 MHz | ±30ppm | 18pF |
| CSM1Z-A0B2C3-50-17.734475D18 | Cardinal Components Inc. | CSM1 | 17.734475 MHz | ±30ppm | 18pF |
| CSM1Z-A0B2C3-80-10.0D18 | Cardinal Components Inc. | CSM1 | 10 MHz | ±30ppm | 18pF |
| CSM1Z-A0B2C3-80-11.0592D18 | Cardinal Components Inc. | CSM1 | 11.0592 MHz | ±30ppm | 18pF |
