H130B-8.000-18-3030-EXT-TR谐振器,5032贴片晶振

H130B-8.000-18-3030-EXT-TR谐振器,5032贴片晶振，编码：H130B-8.000-18-3030-EXT-TR，型号：H130B，工作温度：-40°C ~ 85°C，尺寸：5.0mm*3.2mm，频率：8MHz，精度：±30ppm，负载电容：18pF，无源贴片晶振，美国进口晶振，石英晶体谐振器，拉隆石英晶振，贴片晶体，石英晶振，5032进口晶振，5.0 x 3.2 x 1.0毫米的小型封装，出色的耐受性和稳定性，提供定制规格，产品广泛应用于无线电话，全球定位系统，蓝牙，智能手机，智能手表，平板电脑，网络设备。

H130B-8.000-18-3030-EXT-TR谐振器,5032贴片晶振，参数表

编码	H130B-8.000-18-3030-EXT-TR
品牌	Raltron
型号	H130B
频率	8MHz
精度	±30ppm
负载电容	18pF
工作温度	-40°C ~ 85°C
尺寸	5.0mm*3.2mm

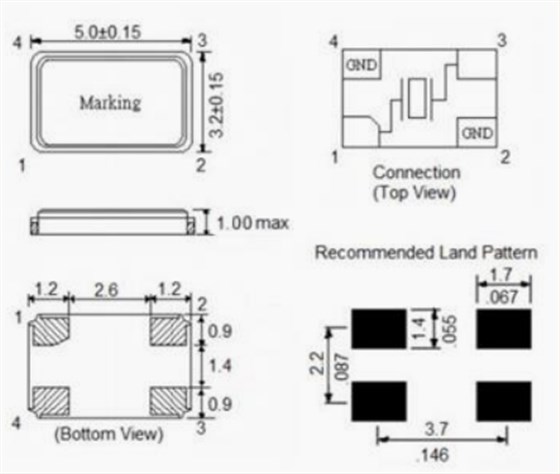

H130B-8.000-18-3030-EXT-TR谐振器,5032贴片晶振，尺寸图

Mfr Part #	拉隆OSC晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
H130B-8.000-18-3030-EXT-TR	Raltron Electronics	H130B	8 MHz	±30ppm	18pF	-40°C ~ 85°C
H130B-16.000-18-3030-EXT-TR	Raltron Electronics	H130B	16 MHz	±30ppm	18pF	-40°C ~ 85°C
H130B-12.000-18-3030-TR	Raltron Electronics	H130B	12 MHz	±30ppm	18pF	-20°C ~ 70°C
H130B-24.000-18-3030-EXT-TR	Raltron Electronics	H130B	24 MHz	±30ppm	18pF	-40°C ~ 85°C
H130A-8.000-8-2030-TR	Raltron Electronics	H130A	8 MHz	±20ppm	8pF	-20°C ~ 70°C
H13-8.000-18-3030-EXT-TR	Raltron Electronics	H13	8 MHz	±30ppm	18pF	-40°C ~ 85°C
H130B-25.000-12-F-EXT-TR	Raltron Electronics	H130B	25 MHz	±50ppm	12pF	-40°C ~ 85°C
H130B-25.000-20-F-3030-TR	Raltron Electronics	H130B	25 MHz	±30ppm	20pF	-20°C ~ 70°C
H130B-18.432-18-EXT-TR	Raltron Electronics	H130B	18.432 MHz	±50ppm	18pF	-40°C ~ 85°C
H130A-24.000-18-2030-EXT-TR	Raltron Electronics	H130A	24 MHz	±20ppm	18pF	-40°C ~ 85°C
H130B-50.000-16-F-1010-TR	Raltron Electronics	H130B	50 MHz	±10ppm	16pF	-10°C ~ 60°C
H13-6.000-16-5050-EXT-TR	Raltron Electronics	H13	6 MHz	±50ppm	16pF	-30°C ~ 85°C
H130B-12.000-16-2525-EXT-TR	Raltron Electronics	H130B	12 MHz	±25ppm	16pF	-40°C ~ 85°C
H130B-24.576-22-F-EXT-TR	Raltron Electronics	H130B	24.576 MHz	±50ppm	22pF	-40°C ~ 85°C
H130A-25.000-18-F-2030-EXT-TR	Raltron Electronics	H130A	25 MHz	±20ppm	18pF	-40°C ~ 85°C
H130A-24.000-8-2030-TR-NS1	Raltron Electronics	H130A	24 MHz	±20ppm	8pF	-20°C ~ 70°C
H130B-25.000-10-F-1010-EXT-TR	Raltron Electronics	H130B	25 MHz	±10ppm	10pF	-40°C ~ 85°C
H130A-12.000-8-TR	Raltron Electronics	H130A	12 MHz	±50ppm	8pF	-20°C ~ 70°C
H130A-12.000-18-2030-EXT-TR	Raltron Electronics	H130A	12 MHz	±20ppm	18pF	-40°C ~ 85°C
H130B-25.000-18-F-1030-EXT-TR	Raltron Electronics	H130B	25 MHz	±10ppm	18pF	-40°C ~ 85°C
H13-6.000-18-3030-EXT-TR	Raltron Electronics	H13	6 MHz	±30ppm	18pF	-40°C ~ 85°C
H13-24.000-18-1020-EXT-TR	Raltron Electronics	H13	24 MHz	±10ppm	18pF	-30°C ~ 85°C
H130B-12.000-12-3030-EXT-TR	Raltron Electronics	H130B	12 MHz	±30ppm	12pF	-40°C ~ 85°C
H130B-27.000-20-F-TR	Raltron Electronics	H130B	27 MHz	±50ppm	20pF	-20°C ~ 70°C
H130B-12.288-12-EXT-TR	Raltron Electronics	H130B	12.288 MHz	±50ppm	12pF	-40°C ~ 85°C
H130B-40.000-18-F-1015-EXT-TR	Raltron Electronics	H130B	40 MHz	±10ppm	18pF	-40°C ~ 85°C
H130B-20.000-20-2050-EXT-TR	Raltron Electronics	H130B	20 MHz	±20ppm	20pF	-40°C ~ 85°C
H130B-11.0592-22-3030-EXT-TR	Raltron Electronics	H130B	11.0592 MHz	±30ppm	22pF	-40°C ~ 85°C
H130B-20.000-12-3030-TR	Raltron Electronics	H130B	20 MHz	±30ppm	12pF	-20°C ~ 70°C
