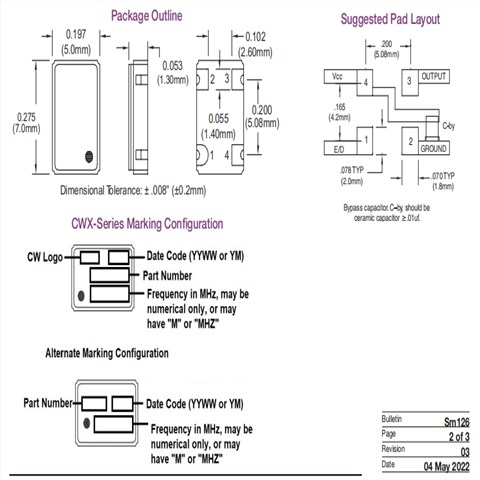

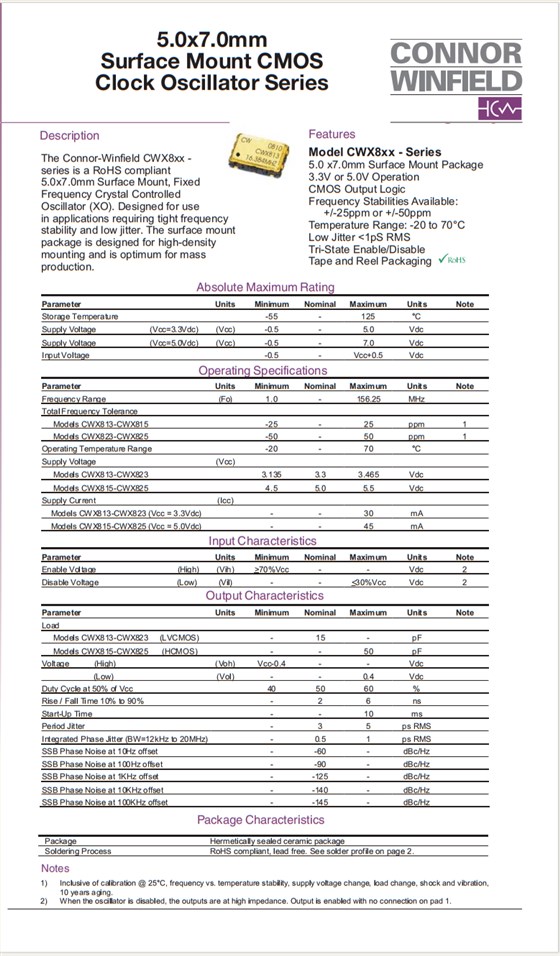

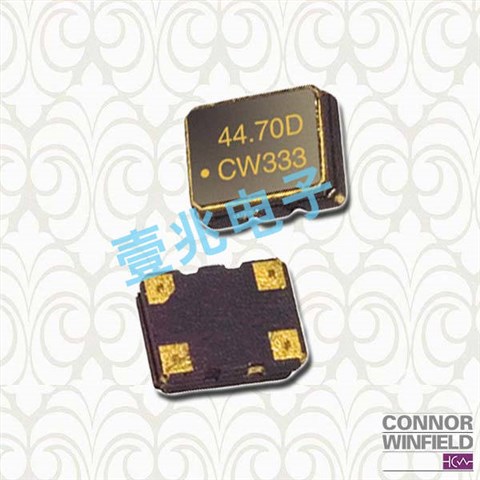

CWX813-018.432M,7050差分贴片晶振,ConnorWinfield晶体振荡器，编码：CWX813-018.432M，型号：CWX813系列晶振，工作温度：-20°C ~ 70°C，尺寸：7.0*5.0mm，频率：18.432MHz，电压：3.3V，精度：±25ppm，电流：30mA，输出方式：LVCMOS，有源晶振SPXO，差分晶振，有源晶振，康纳-温菲尔德CWX8xx - 系列符合RoHS标准 5.0x7.0mm毫米表面贴装，固定 频率晶体控制 振荡器(XO)。为使用而设计 在要求严格频率的应用中 稳定性和低抖动。表面贴装 封装设计用于高密度 安装，是质量的最佳选择 生产，型号CWX8xx系列 5.0 x 7.0毫米表面贴装封装 3.3V或5.0V工作电压 CMOS输出逻辑 可用的频率稳定性: 低抖动《1pS RMS 三态使能/禁用 卷带包装 +/-25ppm或+/-50ppm 温度范围:-20至70摄氏度。
CWX813-018.432M,7050差分贴片晶振,ConnorWinfield晶体振荡器，参数表
| 编码 | CWX813-018.432M |
| 品牌 | Connor-Winfield |
| 型号 | CWX813 |
| 频率 | 18.432MHz |
| 输出方式 | LVCMOS |
| 电压 | 3.3V |
| 精度 | ±25ppm |
| 工作温度 | -20°C ~ 70°C |
| 电流 | 30mA |
| Manufacturer Part Number原厂代码 | 有源晶振 | Series型号 | Type 类型 | Frequency 频率 | Output 输出 | Voltage - Supply电压 | Frequency Stability频率稳定度 | Operating Temperature 工作温度 |
| CWX813-024.0M | Connor-Winfield | CWX813 | XO (Standard) | 24MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-024.0M | Connor-Winfield | CWX813 | XO (Standard) | 24MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-024.0M | Connor-Winfield | CWX813 | XO (Standard) | 24MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-012.0M | Connor-Winfield | CWX813 | XO (Standard) | 12MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-012.0M | Connor-Winfield | CWX813 | XO (Standard) | 12MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-012.0M | Connor-Winfield | CWX813 | XO (Standard) | 12MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-018.432M | Connor-Winfield | CWX813 | XO (Standard) | 18.432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-018.432M | Connor-Winfield | CWX813 | XO (Standard) | 18.432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-018.432M | Connor-Winfield | CWX813 | XO (Standard) | 18.432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-001.8432M | Connor-Winfield | CWX813 | XO (Standard) | 1.8432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-001.8432M | Connor-Winfield | CWX813 | XO (Standard) | 1.8432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-001.8432M | Connor-Winfield | CWX813 | XO (Standard) | 1.8432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-007.3728M | Connor-Winfield | CWX813 | XO (Standard) | 7.3728MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-007.3728M | Connor-Winfield | CWX813 | XO (Standard) | 7.3728MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-007.3728M | Connor-Winfield | CWX813 | XO (Standard) | 7.3728MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-010.0M | Connor-Winfield | CWX813 | XO (Standard) | 10MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-010.0M | Connor-Winfield | CWX813 | XO (Standard) | 10MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-010.0M | Connor-Winfield | CWX813 | XO (Standard) | 10MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-025.0M | Connor-Winfield | CWX813 | XO (Standard) | 25MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-025.0M | Connor-Winfield | CWX813 | XO (Standard) | 25MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-025.0M | Connor-Winfield | CWX813 | XO (Standard) | 25MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-027.0M | Connor-Winfield | CWX813 | XO (Standard) | 27MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-027.0M | Connor-Winfield | CWX813 | XO (Standard) | 27MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
