ECS-1618-120-BN-TR,ECS-1618石英晶体,2016贴片晶振，进口石英晶振，有源ECS贴片晶振，型号：ECS-1618系列晶振，编码为：ECS-1618-120-BN-TR,频率为：6MHz，尺寸：2.0*1.6mm，工作温度为：﹣40℃ ~ 85°C，SMD石英晶体振荡器ECS-1618（+1.8V）超小型贴片式石英晶体振荡器，低电压启动功率,并且有多种电压供选择,比如有1.8V,2.5V,3.3V,3.8V,5V等,产品被广泛应用于,平板笔记本,GPS系统,光纤通道,千兆以太网,串行ATA,串行连接SCSI,PCI-Express的SDH/SONET发射基站等领域.符合RoHS/无铅.
ECS-1618-120-BN-TR,ECS-1618石英晶体,2016贴片晶振，参数表
| 编码 | ECS-1618-120-BN-TR |
| 品牌 | ECS 晶振 |
| 型号 | ECS-1618 |
| 频率 | 6MHz |
| 工作温度﹣ |
﹣40℃ ~ 85°C |
|
尺寸 |
2.0*1.6mm |

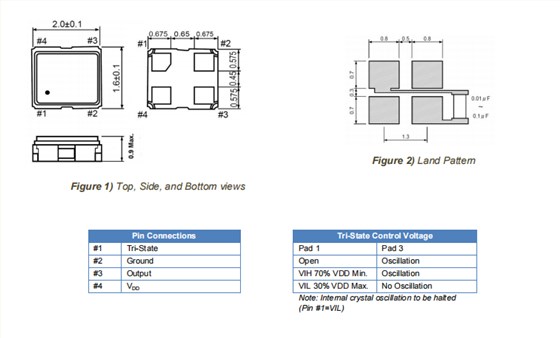

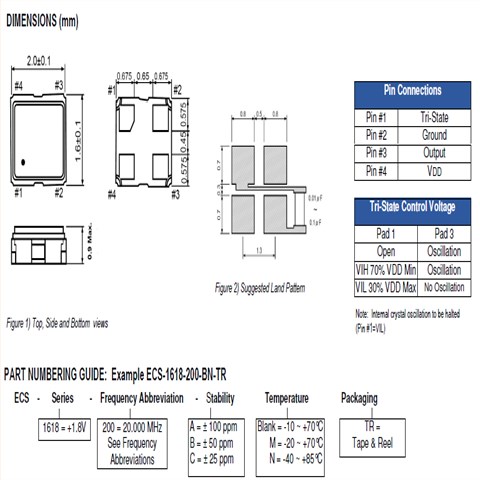

ECS-1618-192-BN-TR,ECS-1618贴片晶振,2016晶振，尺寸图
| Manufacturer Part Number原厂代码 | ECS石英晶体 | Series型号 | Frequency 频率 | Operating Temperature工作温度 |
| ECS-1618-300-BN-TR | ECS 晶振 | ECS-1618 | 30MHz | -40°C ~ 85°C |
| ECS-1618-300-BN-TR | ECS 晶振 | ECS-1618 | 30MHz | -40°C ~ 85°C |
| ECS-1618-300-BN-TR | ECS 晶振 | ECS-1618 | 30MHz | -40°C ~ 85°C |
| ECS-1633-480-BN-TR | ECS 晶振 | ECS-1633 | 48MHz | -40°C ~ 85°C |
| ECS-1633-480-BN-TR | ECS 晶振 | ECS-1633 | 48MHz | -40°C ~ 85°C |
| ECS-1633-480-BN-TR | ECS 晶振 | ECS-1633 | 48MHz | -40°C ~ 85°C |
| ECS-1633-270-BN-TR | ECS 晶振 | ECS-1633 | 27MHz | -40°C ~ 85°C |
| ECS-1633-270-BN-TR | ECS 晶振 | ECS-1633 | 27MHz | -40°C ~ 85°C |
| ECS-1633-270-BN-TR | ECS 晶振 | ECS-1633 | 27MHz | -40°C ~ 85°C |
| ECS-1618-060-BN-TR | ECS 晶振 | ECS-1618 | 6MHz | -40°C ~ 85°C |
| ECS-1618-060-BN-TR | ECS 晶振 | ECS-1618 | 6MHz | -40°C ~ 85°C |
| ECS-1618-060-BN-TR | ECS 晶振 | ECS-1618 | 6MHz | -40°C ~ 85°C |
| ECS-1618-120-BN-TR | ECS 晶振 | ECS-1618 | 12MHz | -40°C ~ 85°C |
| ECS-1618-120-BN-TR | ECS 晶振 | ECS-1618 | 12MHz | -40°C ~ 85°C |
| ECS-1618-120-BN-TR | ECS 晶振 | ECS-1618 | 12MHz | -40°C ~ 85°C |
| ECS-1618-192-BN-TR | ECS 晶振 | ECS-1618 | 19.2MHz | -40°C ~ 85°C |
| ECS-1618-192-BN-TR | ECS 晶振 | ECS-1618 | 19.2MHz | -40°C ~ 85°C |
| ECS-1618-192-BN-TR | ECS 晶振 | ECS-1618 | 19.2MHz | -40°C ~ 85°C |
| ECS-1618-260-BN-TR | ECS 晶振 | ECS-1618 | 26MHz | -40°C ~ 85°C |
| ECS-1618-260-BN-TR | ECS 晶振 | ECS-1618 | 26MHz | -40°C ~ 85°C |
| ECS-1618-260-BN-TR | ECS 晶振 | ECS-1618 | 26MHz | -40°C ~ 85°C |
| ECS-1633-192-BN-TR | ECS 晶振 | ECS-1633 | 19.2MHz | -40°C ~ 85°C |
| ECS-1633-192-BN-TR | ECS 晶振 | ECS-1633 | 19.2MHz | -40°C ~ 85°C |
