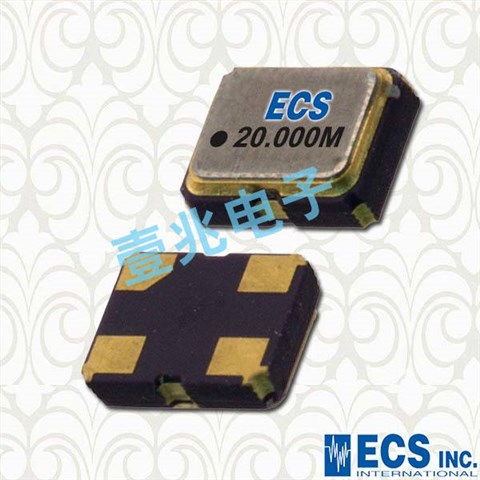

产品简介

ECS-1618-240-BN-TR,ECS-1618石英晶体振荡器,2016贴片晶振，四脚贴片晶振，型号：ECS-1618系列晶振，编码为：ECS-1618-240-BN-TR,频率为：24MHz，尺寸：2.0*1.6mm，工作温度为：﹣40℃ ~ 85°C，ECS-1618 SMD时钟晶体振荡器 ECS-1618（+1.8V）超小型贴片振荡器非常适合当今的高密度应用，产品被广泛应用于,平板笔记本,GPS系统,光纤通道,千兆以太网,串行ATA,串行连接SCSI,PCI-Express的SDH/SONET发射基站等领域.符合RoHS/无铅.

产品详情

ECS-1618-240-BN-TR,ECS-1618石英晶体振荡器,2016贴片晶振，四脚贴片晶振，型号：ECS-1618系列晶振，编码为：ECS-1618-240-BN-TR,频率为：24MHz，尺寸：2.0*1.6mm，工作温度为：﹣40℃ ~ 85°C，ECS-1618 SMD时钟晶体振荡器ECS-1618（+1.8V）超小型贴片振荡器非常适合当今的高密度应用，产品被广泛应用于,平板笔记本,GPS系统,光纤通道,千兆以太网,串行ATA,串行连接SCSI,PCI-Express的SDH/SONET发射基站等领域.符合RoHS/无铅.

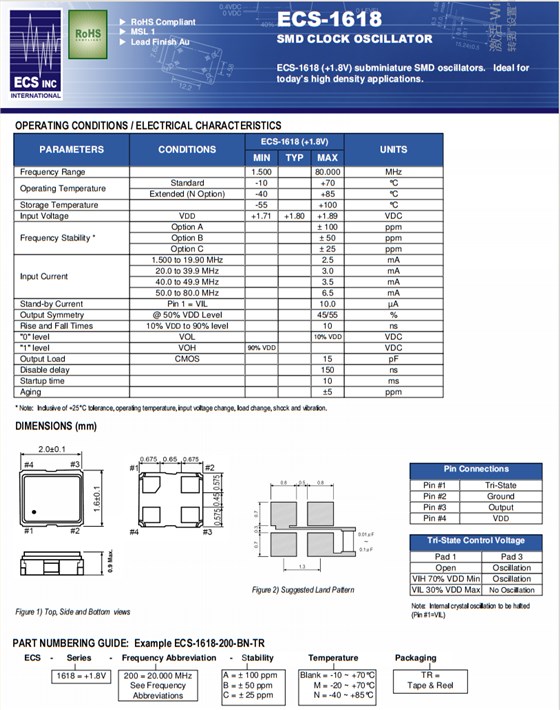

ECS-1618-240-BN-TR,ECS-1618石英晶体振荡器,2016贴片晶振，参数表

PARAMETERS

CONDITIONS

ECS-1618 (+1.8V)

UNITS

MIN

TYP

MAX

Frequency Range

MHz

Operating Temperature

Standard

-10

+70

°C

Extended (N Option)

-40

+85

°C

Storage Temperature

-55

+100

°C

Input Voltage

VDD

+1.71

+1.80

+1.89

VDC

Frequency Stability *

Option A

± 100

ppm

Option B

± 50

ppm

Option C

± 25

ppm

Input Current

1.500 to 19.90 MHz

2.5

20.0 to 39.9 MHz

3.0

40.0 to 49.9 MHz

3.5

50.0 to 80.0 MHz

6.5

Stand-by Current

Pin 1 = VIL

10.0

µA

Output Symmetry

@ 50% VDD Level

45/55

Rise and Fall Times

10% VDD to 90% level

"0" level

VOL

10% VDD

VDC

"1" level

VOH

90% VDD

VDC

Output Load

CMOS

Disable delay

150

Startup time

Aging

±5

ppm

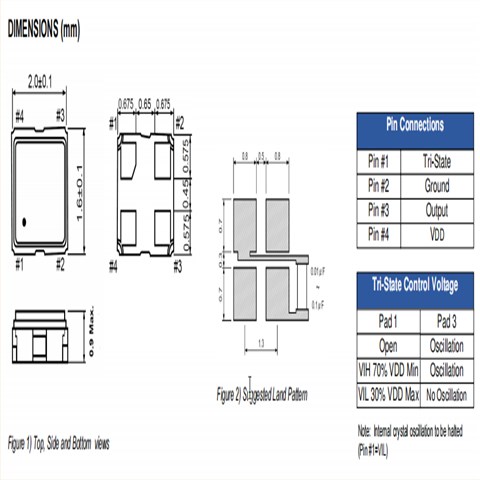

ECS-1618-240-BN-TR,ECS-1618石英晶体振荡器,2016贴片晶振，尺寸图

Manufacturer Part Number原厂代码	壹兆晶振厂家	Series型号	Frequency 频率	Operating Temperature工作温度
ECS-1618-300-BN-TR	ECS晶振	ECS-1618	30MHz	-40°C ~ 85°C
ECS-1618-300-BN-TR	ECS晶振	ECS-1618	30MHz	-40°C ~ 85°C
ECS-1618-300-BN-TR	ECS晶振	ECS-1618	30MHz	-40°C ~ 85°C
ECS-1618-060-BN-TR	ECS晶振	ECS-1618	6MHz	-40°C ~ 85°C
ECS-1618-060-BN-TR	ECS晶振	ECS-1618	6MHz	-40°C ~ 85°C
ECS-1618-060-BN-TR	ECS晶振	ECS-1618	6MHz	-40°C ~ 85°C
ECS-1618-120-BN-TR	ECS晶振	ECS-1618	12MHz	-40°C ~ 85°C
ECS-1618-120-BN-TR	ECS晶振	ECS-1618	12MHz	-40°C ~ 85°C
ECS-1618-120-BN-TR	ECS晶振	ECS-1618	12MHz	-40°C ~ 85°C
ECS-1618-192-BN-TR	ECS晶振	ECS-1618	19.2MHz	-40°C ~ 85°C
ECS-1618-192-BN-TR	ECS晶振	ECS-1618	19.2MHz	-40°C ~ 85°C
ECS-1618-192-BN-TR	ECS晶振	ECS-1618	19.2MHz	-40°C ~ 85°C
ECS-1618-260-BN-TR	ECS晶振	ECS-1618	26MHz	-40°C ~ 85°C
ECS-1618-260-BN-TR	ECS晶振	ECS-1618	26MHz	-40°C ~ 85°C
ECS-1618-260-BN-TR	ECS晶振	ECS-1618	26MHz	-40°C ~ 85°C
ECS-1618-480-BN-TR	ECS晶振	ECS-1618	48MHz	-40°C ~ 85°C
ECS-1618-480-BN-TR	ECS晶振	ECS-1618	48MHz	-40°C ~ 85°C
ECS-1618-480-BN-TR	ECS晶振	ECS-1618	48MHz	-40°C ~ 85°C
ECS-1618-270-BN-TR	ECS晶振	ECS-1618	27MHz	-40°C ~ 85°C
ECS-1618-270-BN-TR	ECS晶振	ECS-1618	27MHz	-40°C ~ 85°C
ECS-1618-270-BN-TR	ECS晶振	ECS-1618	27MHz	-40°C ~ 85°C
ECS-1618-240-BN-TR	ECS晶振	ECS-1618	24MHz	-40°C ~ 85°C
ECS-1618-240-BN-TR	ECS晶振	ECS-1618	24MHz	-40°C ~ 85°C
ECS-1618-240-BN-TR	ECS晶振	ECS-1618	24MHz	-40°C ~ 85°C
