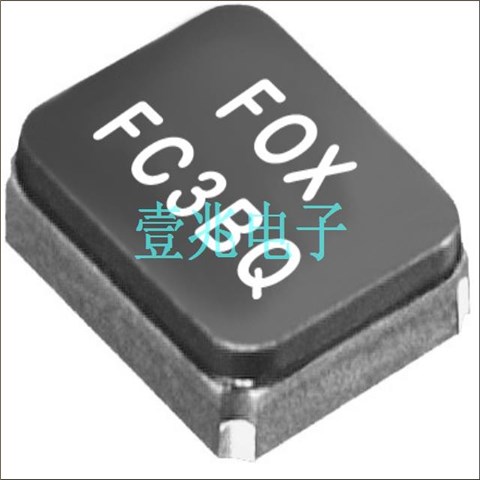

FC3BQBBMM25.0-T3,FC3BQ晶体谐振器,3225贴片晶体

产品简介

FC3BQBBMM25.0-T3,FC3BQ晶体谐振器,3225贴片晶体，编码：FC3BQBBMM25.0-T3，型号：FC3BQ，工作温度：-40°C ~ 85°C，尺寸：3.2*2.5mm，频率：25MHz，负载电容：20pF，精度：±50ppm，3225进口晶振，石英晶体晶振，无源贴片晶振，石英晶体，SMD晶体，贴片晶体，FOX晶振，美国进口晶振，公差低至20 PPM 稳定性低至10 PPM，3.2x2.5mm 贴片晶振在极端严酷的环境条件下也能发挥稳定的起振特性,本身具有耐热,耐振,耐冲击等优良的耐环境特性.被广泛应用于智能家居家电，智能手机，无线通信，平板电脑等用途。

产品详情

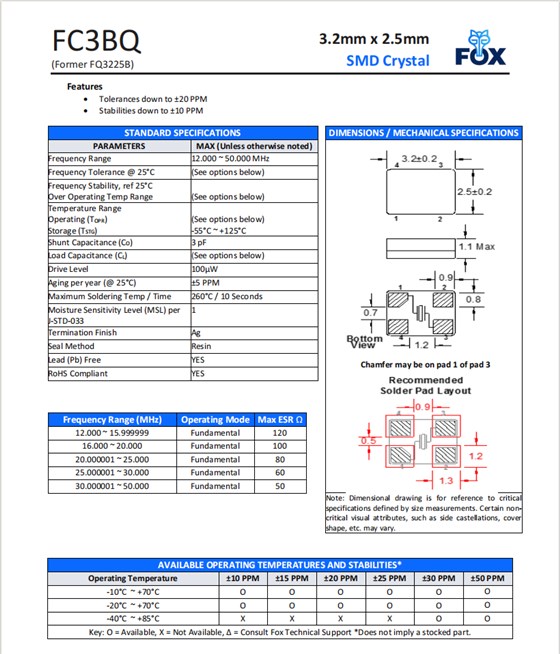

FC3BQBBMM25.0-T3,FC3BQ晶体谐振器,3225贴片晶体，参数表

编码	FC3BQBBMM25.0-T3
品牌	FOX
型号	FC3BQ
频率	25MHz
精度	±50ppm
负载电容	20pF
工作温度	-40°C ~ 85°C
尺寸	3.2mm*2.5mm

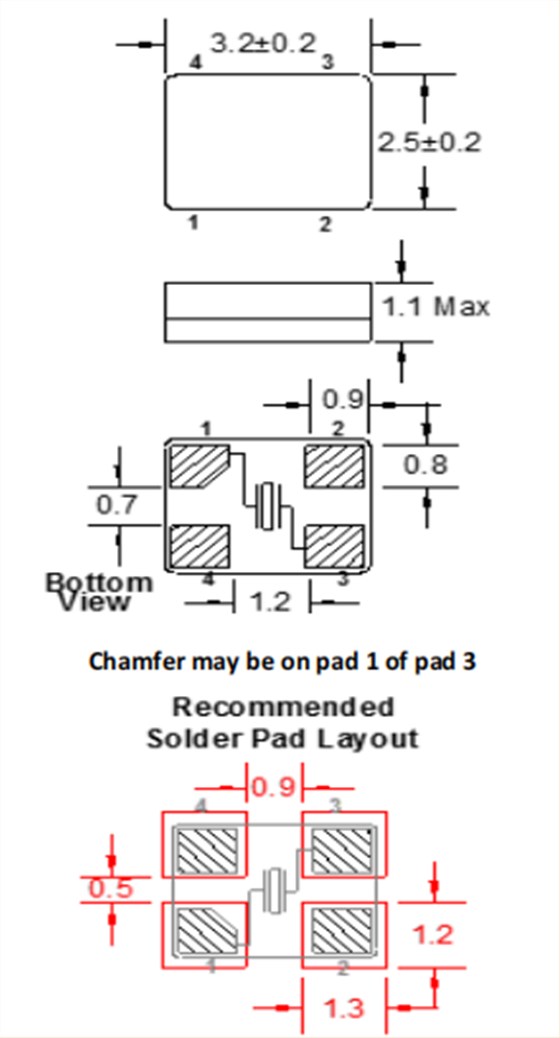

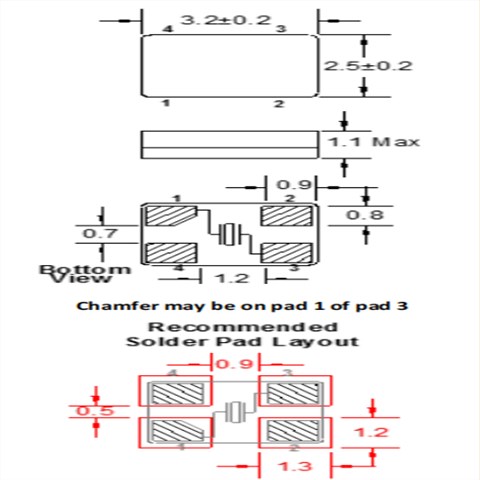

FC3BQBBMM25.0-T3,FC3BQ晶体谐振器,3225贴片晶体，尺寸图

Mfr Part #	贴片石英晶体	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
FC3BQBBMM25.0-T3	Fox Electronics	FC3BQ	25 MHz	±50ppm	20pF	-40°C ~ 85°C
FC3BQBBMM24.0-T3	Fox Electronics	FC3BQ	24 MHz	±50ppm	20pF	-40°C ~ 85°C
FC3BQBBMM12.0-T3	Fox Electronics	FC3BQ	12 MHz	±50ppm	20pF	-40°C ~ 85°C
FC3BSBBLM25.0-T3	Fox Electronics	FC3BS	25 MHz	±50ppm	18pF	-40°C ~ 85°C
FC3BQBBME24.0-T3	Fox Electronics	FC3BQ	24 MHz	±50ppm	20pF	-10°C ~ 70°C
FC3VREEGM50.0-T1	Fox Electronics	FC3VR	50 MHz	±20ppm	12pF	-40°C ~ 85°C
FC3VREEGM40.0-T1	Fox Electronics	FC3VR	40 MHz	±20ppm	12pF	-40°C ~ 85°C
FC3BQBBME25.0-T3	Fox Electronics	FC3BQ	25 MHz	±50ppm	20pF	-10°C ~ 70°C
FC3BSHHEF32.0-T3	Fox Electronics	FC3BS	32 MHz	±10ppm	10pF	-20°C ~ 70°C
FC3BSHFEM12.0-T3	Fox Electronics	FC3BS	12 MHz	±10ppm	10pF	-40°C ~ 85°C
FC4SDCBMP8.0-T1	Fox Electronics	FC4SD	8 MHz	±30ppm	20pF	-40°C ~ 105°C
FC3VREEGM50.0-T3	Fox Electronics	FC3VR	50 MHz	±20ppm	12pF	-40°C ~ 85°C
FC3VREEDM48.0-T1	Fox Electronics	FC3VR	48 MHz	±20ppm	8pF	-40°C ~ 85°C
FC3VREEGM38.4-T1	Fox Electronics	FC3VR	38.4 MHz	±20ppm	12pF	-40°C ~ 85°C
FC3VREEDM48.0-T3	Fox Electronics	FC3VR	48 MHz	±20ppm	8pF	-40°C ~ 85°C
FC3VREEDM38.88-T1	Fox Electronics	FC3VR	38.88 MHz	±20ppm	8pF	-40°C ~ 85°C
FC3VREEGM38.88-T3	Fox Electronics	FC3VR	38.88 MHz	±20ppm	12pF	-40°C ~ 85°C
FC3VREEDM38.4-T1	Fox Electronics	FC3VR	38.4 MHz	±20ppm	8pF	-40°C ~ 85°C
FC3VREEGM36.0-T3	Fox Electronics	FC3VR	36 MHz	±20ppm	12pF	-40°C ~ 85°C
FC3VREEDM38.4-T3	Fox Electronics	FC3VR	38.4 MHz	±20ppm	8pF	-40°C ~ 85°C
FC3VREEDM38.88-T3	Fox Electronics	FC3VR	38.88 MHz	±20ppm	8pF	-40°C ~ 85°C
FC3VREEDM40.0-T3	Fox Electronics	FC3VR	40 MHz	±20ppm	8pF	-40°C ~ 85°C
FC3VREEEM38.4-T3	Fox Electronics	FC3VR	38.4 MHz	±20ppm	10pF	-40°C ~ 85°C
FC3VREEGM40.0-T3	Fox Electronics	FC3VR	40 MHz	±20ppm	12pF	-40°C ~ 85°C
FC3VREEGM36.0-T1	Fox Electronics	FC3VR	36 MHz	±20ppm	12pF	-40°C ~ 85°C
FC3VREEGM38.4-T3	Fox Electronics	FC3VR	38.4 MHz	±20ppm	12pF	-40°C ~ 85°C
FC3VREEGM38.88-T1	Fox Electronics	FC3VR	38.88 MHz	±20ppm	12pF	-40°C ~ 85°C
