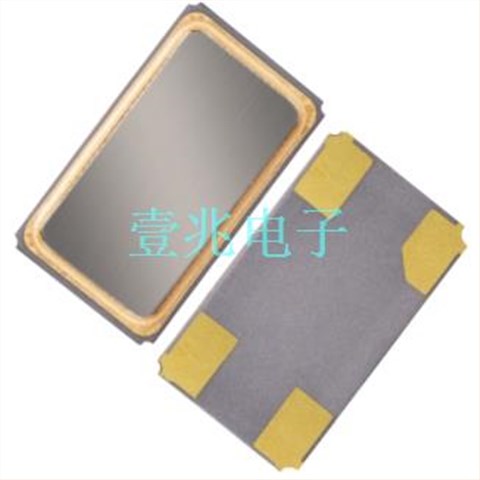

6035无源贴片晶体,H10S-25.000-18-F-EXT-TR,拉隆晶振

6035无源贴片晶体,H10S-25.000-18-F-EXT-TR,拉隆晶振，编码：H10S-25.000-18-F-EXT-TR，型号：H10S，工作温度：-40°C ~ 85°C，尺寸：6.0mm*3.5mm，频率：25MHz，精度：±100ppm，负载电容：18pF，美国进口晶振，无源晶振，贴片石英晶体，石英晶体谐振器，t贴片晶振，进口6035贴片晶振 ，高精度和稳定性，从8.00 MHz到200.00 MHz的宽频率范围，产品公司应用于时钟钟表，智能手机，智能手表，无线电话，无线通信，平板电脑，手机导航等应用。

6035无源贴片晶体,H10S-25.000-18-F-EXT-TR,拉隆晶振，参数表

编码	H10S-25.000-18-F-EXT-TR
品牌	Raltron
型号	H10S
频率	25MHz
精度	±100ppm
负载电容	18pF
工作温度	-40°C ~ 85°C
尺寸	6.0mm*3.5mm

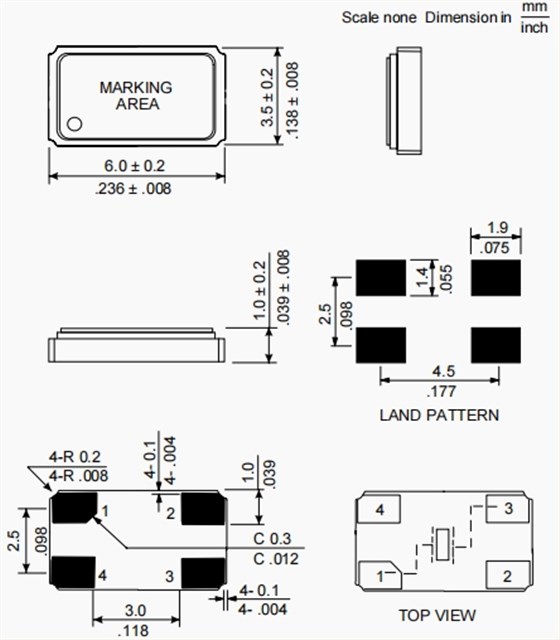

6035无源贴片晶体,H10S-25.000-18-F-EXT-TR,拉隆晶振，尺寸图

Mfr Part #	拉隆晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
H13-8.000-18-3030-EXT-TR	Raltron Electronics	H13	8 MHz	±30ppm	18pF	-40°C ~ 85°C
H13-6.000-16-5050-EXT-TR	Raltron Electronics	H13	6 MHz	±50ppm	16pF	-30°C ~ 85°C
H10S-25.000-18-F-EXT-TR	Raltron Electronics	H10S	25 MHz	±100ppm	18pF	-40°C ~ 85°C
H13-6.000-18-3030-EXT-TR	Raltron Electronics	H13	6 MHz	±30ppm	18pF	-40°C ~ 85°C
H13-24.000-18-1020-EXT-TR	Raltron Electronics	H13	24 MHz	±10ppm	18pF	-30°C ~ 85°C
H10S-26.000-18-F-1030-EXT-TR	Raltron Electronics	H10S	26 MHz	±10ppm	18pF	-40°C ~ 85°C
H10S-27.120-18-F-3050-TR	Raltron Electronics	H10S	27.12 MHz	±30ppm	18pF	-10°C ~ 60°C
H13-25.000-20-F-2030-TR-NS1	Raltron Electronics	H13	25 MHz	±20ppm	20pF	-10°C ~ 60°C
H120B-24.000-18-3030-TR	Raltron Electronics	H120B	24 MHz	±30ppm	18pF	-20°C ~ 70°C
H13-10.000-18-TR	Raltron Electronics	H13	10 MHz	±50ppm	18pF	-10°C ~ 60°C
H13-18.432-18-EXT-TR	Raltron Electronics	H13	18.432 MHz	±50ppm	18pF	-40°C ~ 85°C
H13-11.0592-20-3030-EXT-TR	Raltron Electronics	H13	11.0592 MHz	±30ppm	20pF	-40°C ~ 85°C
H13-14.31818-18-1030-EXT-TR	Raltron Electronics	H13	14.31818 MHz	±10ppm	18pF	-40°C ~ 85°C
H13-12.000-18-2020-TR	Raltron Electronics	H13	12 MHz	±20ppm	18pF	-10°C ~ 60°C
H13-30.000-18-F-TR	Raltron Electronics	H13	30 MHz	±50ppm	18pF	-10°C ~ 60°C
H13-6.000-20-3030-EXT-TR-NS1	Raltron Electronics	H13	6 MHz	±30ppm	20pF	-40°C ~ 85°C
H10S-10.000-18-EXT-TR	Raltron Electronics	H10S	10 MHz	±100ppm	18pF	-40°C ~ 85°C
H10S-12.000-18-2020-TR-NS1	Raltron Electronics	H10S	12 MHz	±20ppm	18pF	-10°C ~ 60°C
H10S-12.000-18-5050-EXT-TR	Raltron Electronics	H10S	12 MHz	±50ppm	18pF	-40°C ~ 85°C
H10S-13.560-10-1010-TR	Raltron Electronics	H10S	13.56 MHz	±10ppm	10pF	-10°C ~ 60°C
H10S-14.7456-16-1020-TR	Raltron Electronics	H10S	14.7456 MHz	±10ppm	16pF	-10°C ~ 60°C
H10S-16.000-20-3050-EXT-TR	Raltron Electronics	H10S	16 MHz	±30ppm	20pF	-40°C ~ 85°C
H10S-16.384-18-1030-TR	Raltron Electronics	H10S	16.384 MHz	±10ppm	18pF	-10°C ~ 60°C
H10S-18.432-18-EXT-TR	Raltron Electronics	H10S	18.432 MHz	±100ppm	18pF	-40°C ~ 85°C
H10S-20.000-18-1010-TR	Raltron Electronics	H10S	20 MHz	±10ppm	18pF	-10°C ~ 60°C
H10S-24.000-18-2020-EXT-TR	Raltron Electronics	H10S	24 MHz	±20ppm	18pF	-40°C ~ 85°C
H10S-6.000-20-3050-TR	Raltron Electronics	H10S	6 MHz	±30ppm	20pF	-10°C ~ 60°C
H10S-8.000-18-1020-EXT-TR	Raltron Electronics	H10S	8 MHz	±10ppm	18pF	-40°C ~ 85°C
H10S-8.000-18-2020-TR-NS1	Raltron Electronics	H10S	8 MHz	±20ppm	18pF	-10°C ~ 60°C
