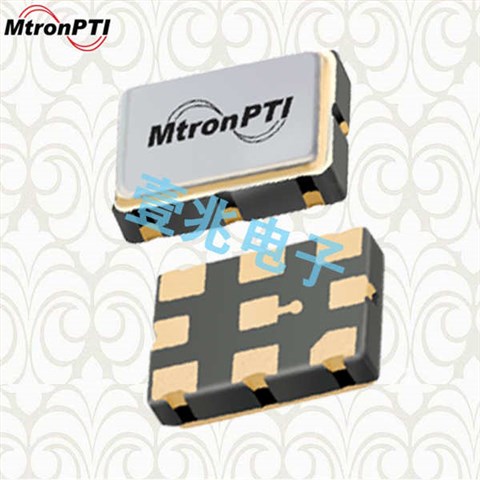

M2002S220 39.995800有源晶体,7050差分输出振荡器，美国进口晶振，差分晶体，编码：M2002S220 39.995800，型号：M2系列晶振，工作温度：-40℃ to +85℃，精度：±50ppm，尺寸：7.0*5.0mm，频率：39.9958MHz，电压：3.3V，时钟晶体振荡器，有源晶振，无引线芯片载体（LCC）封装 接缝密封包装 三态或待机功能选项 稳定性达到20 ppm 完全符合RoHS 6标准，被广泛应用于微处理器/控制器、DSP Gig E，SONET 工业控制器 宽带接入 测试和测量设备上。

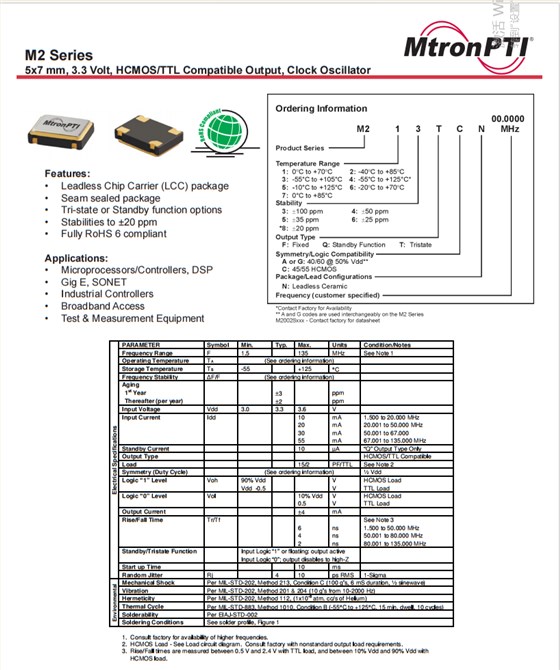

M2002S220 39.995800有源晶体,7050差分输出振荡器，参数表
| 编码 | M2002S220 39.995800 |
| 品牌 | MtronPTI晶振 |
| 型号 | M2 |
| 频率 | 39.9958MHz |
| 精度 | ±50ppm |
| 输出方式 |
HCMOS |
| 电压 | 3.3V |
| 工作温度 |
-40°C ~ 85°C |
| Part Number | MtronPTI石英晶体 | Oscillator Type | Frequency | Frequency Tolerance (ppm) | Package | Temperature Range |
| 1698-575 66.666700 | M2 | XO | 66.6667 | ±50 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| 60551-43N 16.384000 | M2 | XO | 16.384 | ±100 ppm | 5.0 x 7.0 mm | -55℃ to +125℃ |
| M2001S038 50.000000 | M2 | XO | 50 | ±50 ppm | 5.0 x 7.0 mm | -55℃ to +125℃ |
| M2002S031 66.000000 | M2 | XO | 66 | ±50 ppm | 5.0 x 7.0 mm | -20°C to +70°C |
| M2002S041 16.384000 | M2 | XO | 16.384 | ±100 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| M2002S220 39.995800 | M2 | XO | 39.9958 | ±50 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| M2002S294 40.000000 | M2 | XO | 40 | ±100 ppm | 5.0 x 7.0 mm | -55°C to +125°C |
| M2002S295 60.000000 | M2 | XO | 60 | ±100 ppm | 5.0 x 7.0 mm | -55°C to +125°C |
| M2002S429 16.000000 | M2 | XO | 16 | ±100 ppm | 5.0 x 7.0 mm | -55℃ to +125℃ |
| M2002S454 40.000000 | M2 | XO | 40 | ±50 ppm | 5.0 x 7.0 mm | -55°C to +125°C |
| M2002S455 12.000000 | M2 | XO | 12 | ±50 ppm | 5.0 x 7.0 mm | -55°C to +125°C |
| M2002S654 50.000000 | M2 | XO | 50 | ±100 ppm | 5.0 x 7.0 mm | -40℃ to +85℃ |
| M2002S656 99.000000 | M2 | XO | 99 | ±100 ppm | 5.0 x 7.0 mm | -40℃ to +85℃ |
| M2002S709 43.200000 | M2 | XO | 43.2 | ±100 ppm | 5.0 x 7.0 mm | -40℃ to +85℃ |
| M2002S725 19.660800 | M2 | XO | 19.6608 | ±100 ppm | 5.0 x 7.0 mm | -55°C to +125°C |
| M2002S773 33.000000 | M2 | XO | 33 | ±100 ppm | 5.0 x 7.0 mm | -40℃ to +85℃ |
| M2002S833 10.000000 | M2 | XO | 10 | ±100 ppm | 5.0 x 7.0 mm | -55°C to +125°C |
| M2002T012 50.000000 | M2 | XO | 50 | ±50 ppm | 5.0 x 7.0 mm | -20°C to +70°C |
| M2002T171 125.000000 | M2 | XO | 125 | ±50 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| M2002T179 25.000000 | M2 | XO | 25 | ±100 ppm | 5.0 x 7.0 mm | -55°C to +125°C |
| M2002T186 66.667000 | M2 | XO | 66.667 | ±100 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| M2002T201 33.333300 | M2 | XO | 33.3333 | ±50 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| M2002T202 25.000000 | M2 | XO | 25 | ±50 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| M2002T271 66.666000 | M2 | XO | 66.666 | ±25 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
