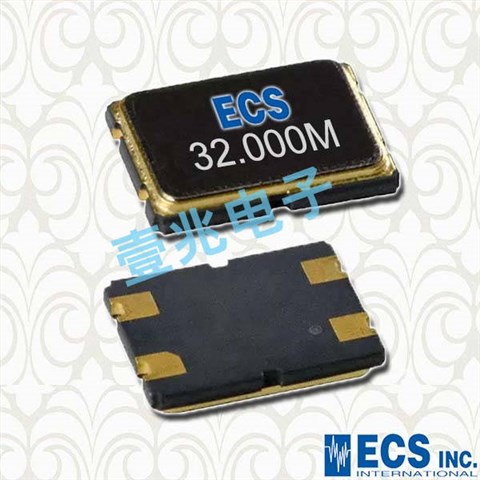

ECS-403.2-S-20A-TR,CSM-8晶振,7050贴片晶振，晶体谐振器，四脚贴片晶振，无源晶振，型号：CSM-8系列晶振，编码为：ECS-403.2-S-20A-TR，频率：40.32MHz,负载电容为：20Pf,尺寸：7*5mm,工作温度为：-10°C ~ 70°C，SMD晶振，ECS石英晶体，CSM-8M 贴片石英晶体 CSM-8M是一款尺寸为7.0 x 5.0毫米的微型SMD晶体足迹，这种缝焊金属盖/陶瓷封装晶体 是PCMIA以太网和传真调制解调器卡应用的理想选择，应用于移动通信设备，近距离无线模块，数字AV设备，可穿戴设备，无线晶振，医疗设备，工业设备等用途。

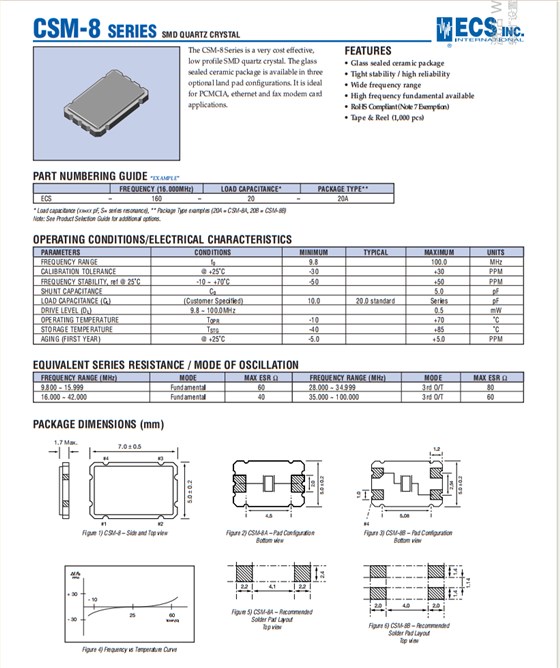

| PARAMETERS | CONDITIONS | MINIMUM | TYPICAL | MAXIMUM | UNITS | |||||||||||||||||||||||||||
| FREQUENCY RANGE | f0 | 40.32 | MHz | |||||||||||||||||||||||||||||
| CALIBRATION TOLERANCE | @ +25?C | -30 | +30 | PPM | ||||||||||||||||||||||||||||
| FREQUENCY STABILITY, ref @ 25?C | -10 ~ +70?C | -50 | +50 | PPM | ||||||||||||||||||||||||||||
| SHUNT CAPACITANCE | C0 | 5.0 | pF | |||||||||||||||||||||||||||||
| LOAD CAPACITANCE (CL) | (Customer Specified) | 10.0 | 20.0 standard | Series | pF | |||||||||||||||||||||||||||
| DRIVE LEVEL (DL) | 9.8 ~ 100.0MHz | 0.5 | mW | |||||||||||||||||||||||||||||
| OPERATING TEMPERATURE | TOPR | -10 | +70 | ℃ | ||||||||||||||||||||||||||||
| STORAGE TEMPERATURE | TSTG | -40 | +85 | ℃ | ||||||||||||||||||||||||||||
| AGING (FIRST YEAR) | @ +25?C | -5.0 | +5.0 | PPM | ||||||||||||||||||||||||||||

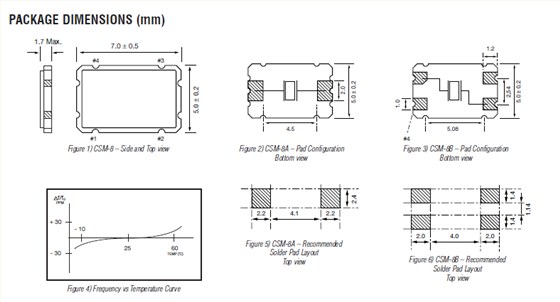

ECS-403.2-S-20A-TR,CSM-8晶振,7050贴片晶振，尺寸图
| Manufacturer Part Number原厂编码 | 晶振厂家 | Series型号 | Frequency | Operating Temperature 工作温度 |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
| ECS-110.5-S-20A-TR | ECS 晶振 | CSM-8 | 11.0592MHz | -10°C ~ 70°C |
