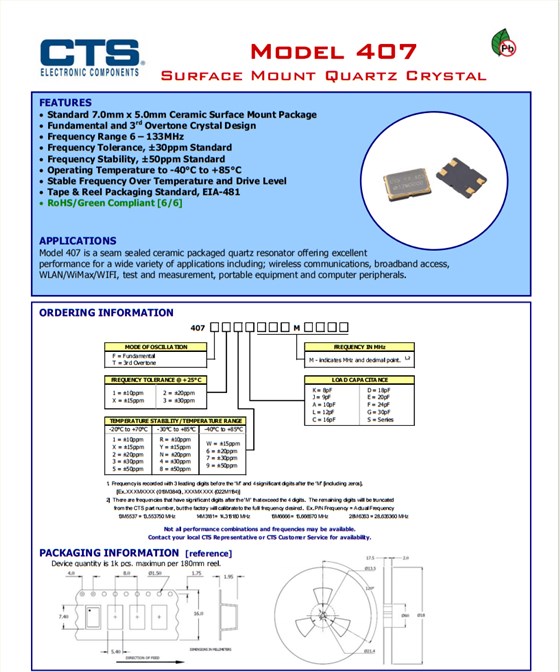

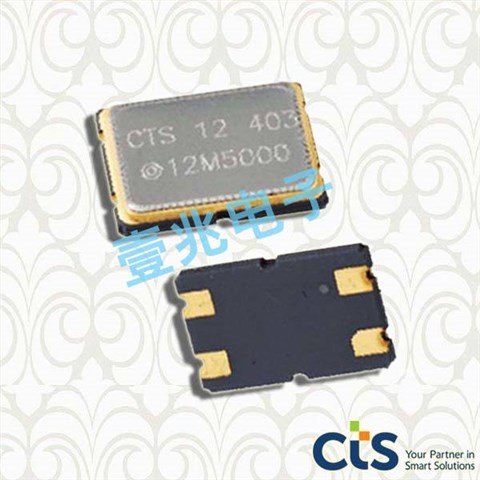

美国CTS进口晶振,407F35E044M7360,7050贴片晶体，编码：407F35E044M7360，型号：407系列晶振，工作温度：-20°C ~ 70°C，尺寸：7.0*5.0mm，频率：44.736MHz，负载电容：20pF，精度：±30ppm，无源晶振，晶体谐振器，石英晶振，标准7.0毫米x 5.0mm毫米陶瓷表贴封装 基频和第三泛音晶体设计 频率范围6–133 MHz 频率容差，30ppm标准 频率稳定性，50ppm标准 工作温度为-40℃至+85℃ 温度和Dri下的稳定频率，407型是接缝密封陶瓷封装石英谐振器，具有出色的 各种应用的性能，包括:无线通信、宽带接入， WLAN/WiMax/WIFI、测试和测量、便携式设备和计算机外设。
美国CTS进口晶振,407F35E044M7360,7050贴片晶体，参数表
| 原厂编码 |
407F35E044M7360 |
| 品牌 | CTS晶振 |
| 型号 | 407 |
| 频率 | 44.736MHz |
| 频率偏差 | ±30ppm |
| 负载电容 | 20pF |
| 工作温度 | -20°C ~ 70°C |
| Manufacturer Part Number原厂编码 | CTS贴片晶振 | Series型号 | Frequency | Frequency Tolerance频率偏差 | Load Capacitance负载电容 | Operating Temperature 工作温度 |
| 407F35E022M1184 | CTS-Frequency Controls | 407 | 22.1184MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E022M1184 | CTS-Frequency Controls | 407 | 22.1184MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E022M1184 | CTS-Frequency Controls | 407 | 22.1184MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E029M4912 | CTS-Frequency Controls | 407 | 29.4912MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E029M4912 | CTS-Frequency Controls | 407 | 29.4912MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E029M4912 | CTS-Frequency Controls | 407 | 29.4912MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E016M3840 | CTS-Frequency Controls | 407 | 16.384MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E016M3840 | CTS-Frequency Controls | 407 | 16.384MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E016M3840 | CTS-Frequency Controls | 407 | 16.384MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E009M6000 | CTS-Frequency Controls | 407 | 9.6MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E009M6000 | CTS-Frequency Controls | 407 | 9.6MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E009M6000 | CTS-Frequency Controls | 407 | 9.6MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F39E008M0000 | CTS-Frequency Controls | 407 | 8MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| 407F39E008M0000 | CTS-Frequency Controls | 407 | 8MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| 407F39E008M0000 | CTS-Frequency Controls | 407 | 8MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| 407T35E050M0000 | CTS-Frequency Controls | 407 | 50MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407T35E050M0000 | CTS-Frequency Controls | 407 | 50MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407T35E050M0000 | CTS-Frequency Controls | 407 | 50MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E036M0000 | CTS-Frequency Controls | 407 | 36MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E036M0000 | CTS-Frequency Controls | 407 | 36MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E036M0000 | CTS-Frequency Controls | 407 | 36MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E012M5000 | CTS-Frequency Controls | 407 | 12.5MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E012M5000 | CTS-Frequency Controls | 407 | 12.5MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E012M5000 | CTS-Frequency Controls | 407 | 12.5MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E016M6700 | CTS-Frequency Controls | 407 | 16.67MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E016M6700 | CTS-Frequency Controls | 407 | 16.67MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35E016M6700 | CTS-Frequency Controls | 407 | 16.67MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 407F35D007M3728 | CTS-Frequency Controls | 407 | 7.3728MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| 407F35D008M0000 | CTS-Frequency Controls | 407 | 8MHz | ±30ppm | 18pF | -20°C ~ 70°C |
