ECS-2520S25-240-FN-TR,2520有源晶振,ECS贴片晶振

频率：24MHz

尺寸：2.5mm x 2.0mm

ECS-2520S25-240-FN-TR,2520有源晶振,ECS贴片晶振，型号：ECS-2520S系列晶振，编码为：ECS-2520S25-240-FN-TR，频率：24MHz,尺寸：2.5*2.0mm,工作温度为：﹣40°C ~ 85°C，微型ECS-2520S是微型SMD HCMOS紧密稳定石英晶体振荡器，2.5 x 2.0 x 0.9毫米陶瓷封装是理想之选对于稳定性至关重要无线和IOT应用。

订购热线：0755-27876236

ECS-2520S25-240-FN-TR,2520有源晶振,ECS贴片晶振，型号：ECS-2520S系列晶振，编码为：ECS-2520S25-240-FN-TR，频率：24MHz,尺寸：2.5*2.0mm,工作温度为：﹣40°C ~ 85°C，微型ECS-2520S是微型SMD HCMOS紧密稳定石英晶体振荡器，2.5 x 2.0 x 0.9毫米陶瓷封装是理想之选对于稳定性至关重要无线和IOT应用。

ECS-2520S25-240-FN-TR,2520有源晶振,ECS贴片晶振，参数表

PARAMETERS

CONDITIONS

ECS-2520S

UNITS

MIN

TYP

MAX

Frequency Range

MHz

Frequency Stability *

EN (-40 ~ +85°C)

± 15

ppm

FN (-40 ~ +85°C)

± 10

ppm

Power Supply

Vdd ±10%

+1.8, +2.5, +3.0, +3.3

V DC

Current Consumption

Standby Current

µA

Output

HCMOS

Output voltage Level

VOL:10%Vdd max./VOH:90%Vddmin.V DC

Rise & Fall time

10%Vdd – 90%Vdd

Duty Cycle

@ ½ Vdd

45/55

Phase Noise

@ 10 KHz offset

-145

dBc/Hz

Operating Temp

-40

+85

°C

Storage Temp

-55

+125

°C

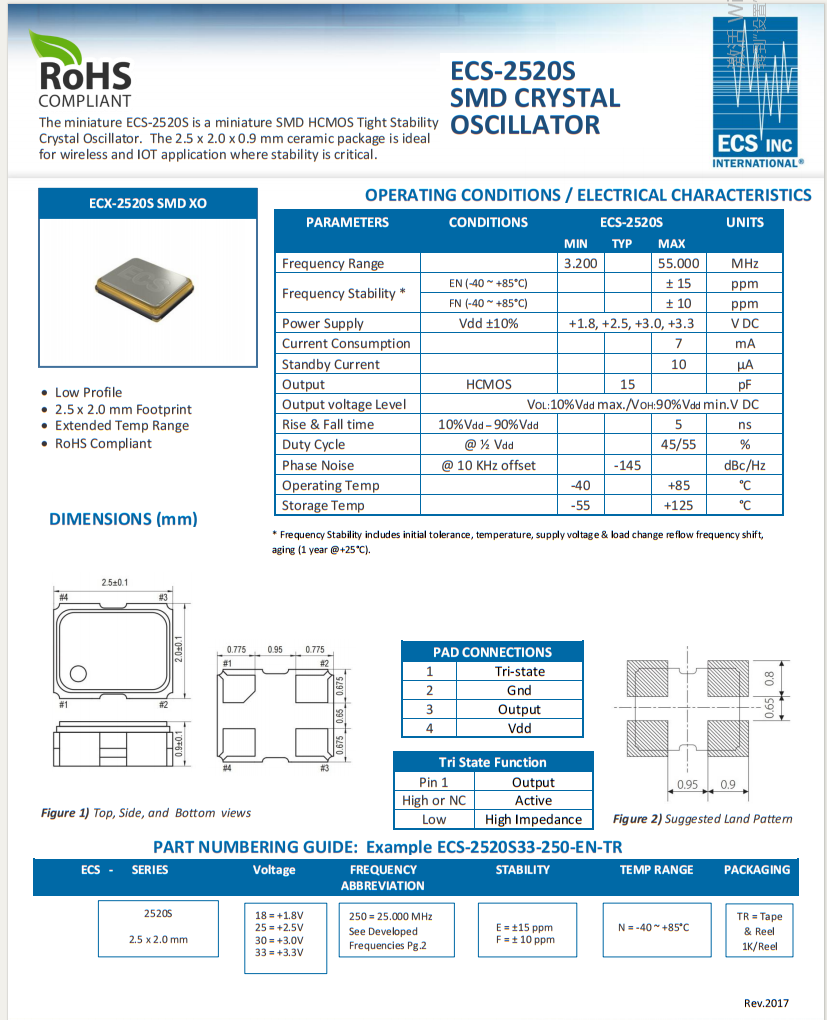

ECS-2520S25-240-FN-TR,2520有源晶振,ECS贴片晶振，尺寸图

Manufacturer Part Number原厂代码	OSC石英晶振	Series型号	Frequency 频率	Operating Temperature 工作温度
ECS-2520S25-240-FN-TR	ECS 晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S25-240-FN-TR	ECS 晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S25-240-FN-TR	ECS 晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S25-500-FN-TR	ECS 晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S25-500-FN-TR	ECS 晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S25-500-FN-TR	ECS 晶振	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S18-100-FN-TR	ECS 晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S18-100-FN-TR	ECS 晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S18-100-FN-TR	ECS 晶振	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S18-120-FN-TR	ECS 晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S18-120-FN-TR	ECS 晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S18-120-FN-TR	ECS 晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S18-160-FN-TR	ECS 晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S18-160-FN-TR	ECS 晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S18-160-FN-TR	ECS 晶振	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S18-240-FN-TR	ECS 晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S18-240-FN-TR	ECS 晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S18-240-FN-TR	ECS 晶振	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S18-250-FN-TR	ECS 晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-250-FN-TR	ECS 晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-250-FN-TR	ECS 晶振	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-260-FN-TR	ECS 晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-260-FN-TR	ECS 晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-260-FN-TR	ECS 晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-320-FN-TR	ECS 晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S18-320-FN-TR	ECS 晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S18-320-FN-TR	ECS 晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S18-400-FN-TR	ECS 晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S18-400-FN-TR	ECS 晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S18-400-FN-TR	ECS 晶振	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S18-500-FN-TR	ECS 晶振	ECS-2520S	50MHz	-40°C ~ 85°C
