X3S027000BA1H-U,HSX321S晶体谐振器,3225进口晶振
频率:27 MHz
尺寸:3.2mm*2.5mm
X3S027000BA1H-U,HSX321S晶体谐振器,3225进口晶振,编码:X3S027000BA1H-U,型号:HSX321S,工作温度:-30°C ~ 85°C,尺寸:3.2mm*2.5mm,频率:27MHz,精度:±10ppm,负载电容:10pF,进口贴片 晶振,无源晶振,晶体谐振器,HELE贴片晶体,贴片石英晶体,贴片晶振外观完全使用金属材料封装的,产品本身采用全自动石英晶体检测仪,以及跌落,漏气等苛刻实验.产品本身具有高稳定性,高可靠性的石英晶体谐振器,焊接方面支持表面贴装,外观采用金属封装,具有充分的密封性能,产品广泛应用于时钟钟表,智能手机,智能手表,无线电话,网络设备,工业设备,车载设备等用途。

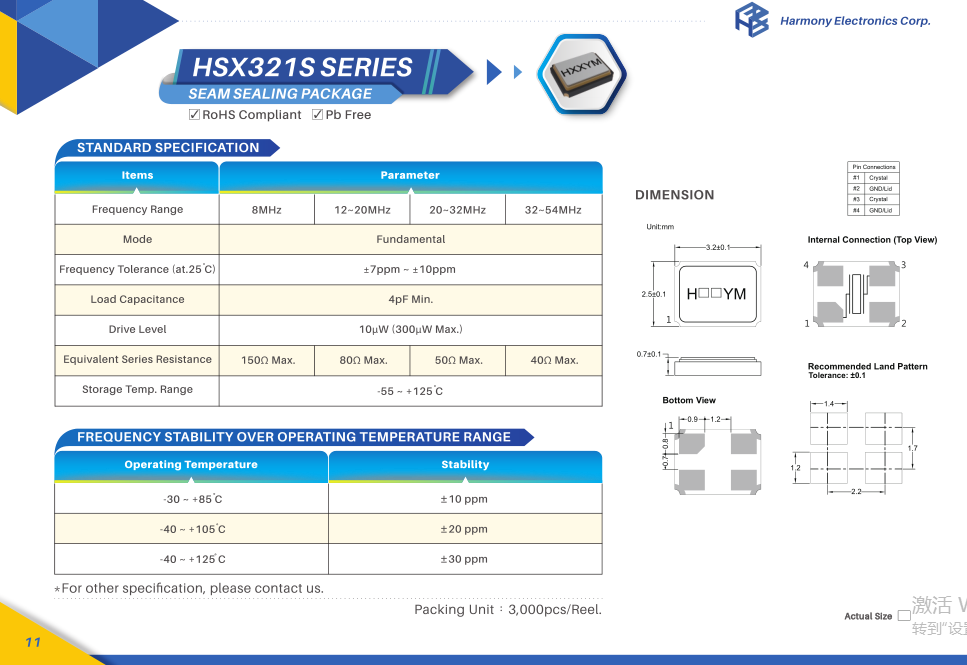

X3S027000BA1H-U,HSX321S晶体谐振器,3225进口晶振 ,参数表
编码 |
X3S027000BA1H-U |
品牌 | HELE |
型号 | HSX321S |
频率 | 27MHz |
精度 |
±10ppm |
负载电容 |
10pF |
工作温度 |
-30°C ~ 85°C |

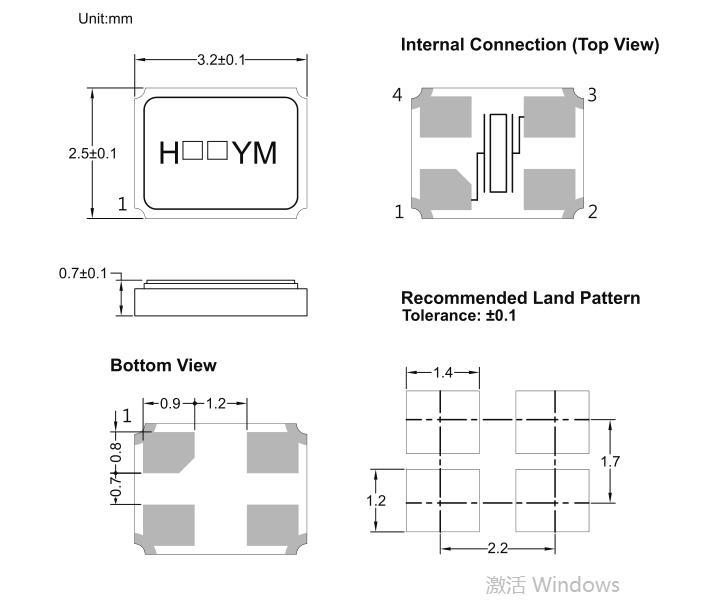

尺寸 | 3.2mm*2.5mm |
![](/uploadfiles/pictures/product/20180915155527_0584.jpg)
Mfr Part # |
HELE贴片晶体 |
Series | Frequency | Frequency Tolerance | Load Capacitance |
X3S027000BA1H-U | Harmony Electronics Corp / H.ELE. | HSX321S | 27 MHz | ±10ppm | 10pF |
X3S024000B91H-HS | Harmony Electronics Corp / H.ELE. | HSX321S | 24 MHz | ±10ppm | 9pF |
X3S027120BA1H-X | Harmony Electronics Corp / H.ELE. | HSX321S | 27.12 MHz | ±10ppm | 10pF |
X3S032000BC1HA-CHPZ | Harmony Electronics Corp / H.ELE. | HSX321S | 32 MHz | ±10ppm | 12pF |
X3S016000DI1H-HW | Harmony Electronics Corp / H.ELE. | HSX321S | 16 MHz | ±20ppm | 18pF |
X3S012000FI1H-HV | Harmony Electronics Corp / H.ELE. | HSX321S | 12 MHz | ±30ppm | 18pF |
X3S025000D81H-HU | Harmony Electronics Corp / H.ELE. | HSX321S | 25 MHz | ±20ppm | 8pF |
X3S026000B91H-NZ | Harmony Electronics Corp / H.ELE. | HSX321S | 26 MHz | ±10ppm | 9pF |
X2B026000M81H-HS | Harmony Electronics Corp / H.ELE. | HSX221SA | 26 MHz | ±7ppm | 8pF |
X2B016000BA1H-U | Harmony Electronics Corp / H.ELE. | HSX221SA | 16 MHz | ±10ppm | 10pF |
X2B012000BC1H-U | Harmony Electronics Corp / H.ELE. | HSX221SA | 12 MHz | ±10ppm | 12pF |
X2B040000BC1H-DHZ | Harmony Electronics Corp / H.ELE. | HSX221SA | 40 MHz | ±10ppm | 12pF |
X2C025000DZ1H-U | Harmony Electronics Corp / H.ELE. | HSX211S | 25 MHz | ±20ppm | 6pF |
X2C032000BA1H-HZ | Harmony Electronics Corp / H.ELE. | HSX211S | 32 MHz | ±10ppm | 10pF |
X2C024000DZ1H-HU | Harmony Electronics Corp / H.ELE. | HSX211S | 24 MHz | ±20ppm | 6pF |
X2C016000B81H-R | Harmony Electronics Corp / H.ELE. | HSX211S | 16 MHz | ±10ppm | 8pF |
X2C026000BC1H-Z | Harmony Electronics Corp / H.ELE. | HSX211S | 26 MHz | ±10ppm | 12pF |
X1C032000B81H-HR | Harmony Electronics Corp / H.ELE. | HSX111S | 32 MHz | ±10ppm | 8pF |
X1C024000B81H-HV | Harmony Electronics Corp / H.ELE. | HSX111S | 24 MHz | ±10ppm | 8pF |
X2C048000L71HH-CEHZ | Harmony Electronics Corp / H.ELE. | HSX211S | 48 MHz | ±8ppm | 11.1pF |
X2R026000BZ1HAZ-DHPZ | Harmony Electronics Corp / H.ELE. | HSX221SR | 26 MHz | ±10ppm | 7pF |
X1R038400B81HA-CEHPZ | Harmony Electronics Corp / H.ELE. | HSX111SR | 38.4 MHz | - | 8pF |
X2U026000B81HBZ-DHPZ | Harmony Electronics Corp / H.ELE. | HSX211SR | 26 MHz | ±10ppm | 8pF |
X2R026000B91HZ-DEHPZ | Harmony Electronics Corp / H.ELE. | HSX221SR | 26 MHz | ±10ppm | 9pF |
X2R019200BZ1H-CHZ | Harmony Electronics Corp / H.ELE. | HSX221SR | 19.2 MHz | ±10ppm | 7pF |
X2U019200BZ1H-CEHQZ | Harmony Electronics Corp / H.ELE. | HSX211SR | 19.2 MHz | ±10ppm | 7pF |
X2U038400B81H-EPQZ | Harmony Electronics Corp / H.ELE. | HSX211SR | 38.4 MHz | ±10ppm | 8pF |
X1R052000B81HZ-DEHPZ | Harmony Electronics Corp / H.ELE. | HSX111SR | 52 MHz | - | 8pF |
X12A040000BZ1H-HZ | Harmony Electronics Corp / H.ELE. | HSX1210A | 40 MHz | ±12ppm | 6pF |
