Q 30.0-JXS22P4-12-20/20-T1-FU-AEC-LF,2520贴片晶振
频率:30 MHz
尺寸:2.5*2.0mm
Q 30.0-JXS22P4-12-20/20-T1-FU-AEC-LF,2520贴片晶振,编码:Q 30.0-JXS22P4-12-20/20-T1-FU-AEC-LF,型号:JXS22P4,工作温度:-40°C ~ 85°C,尺寸:2.5*2.0mm,频率:30MHz,精度:±20ppm,负载电容:12pF,美国进口晶振,晶体谐振器,贴片晶振,Jauch石英晶体,贴片石英晶体,石英晶体晶振,2520mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接(产品无铅对应),为无铅产品。

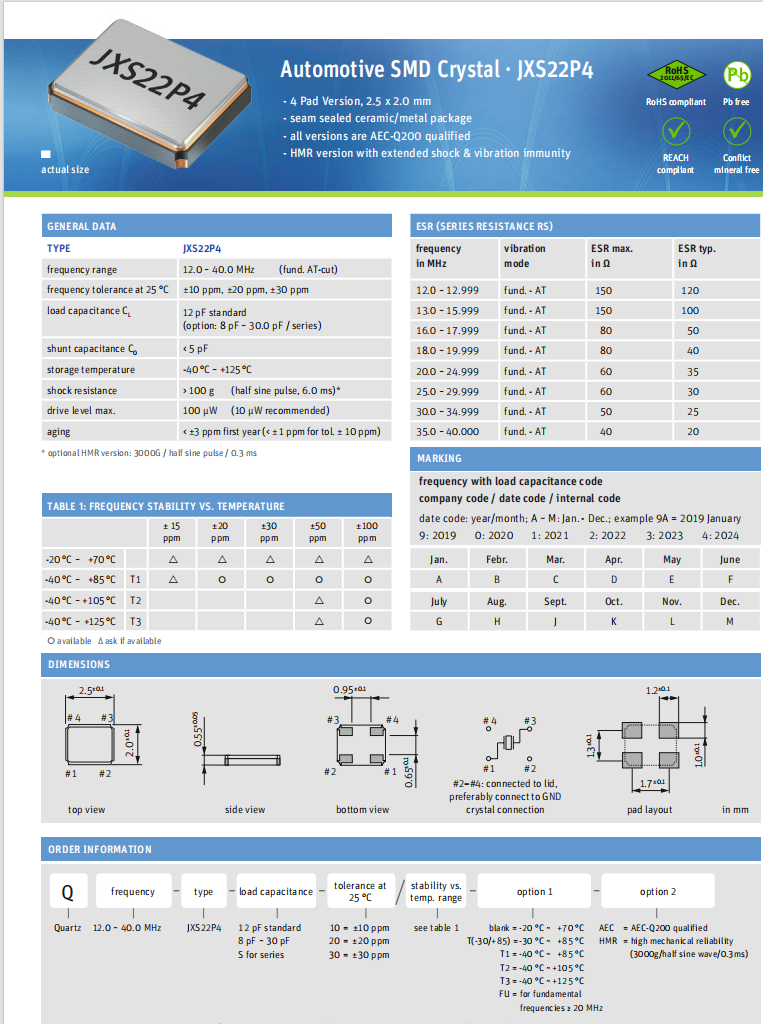

Q 30.0-JXS22P4-12-20/20-T1-FU-AEC-LF,2520贴片晶振,参数表
编码 | Q 30.0-JXS22P4-12-20/20-T1-FU-AEC-LF |
品牌 | Jauch |
型号 | JXS22P4 |
频率 | 30MHz |
精度 |
±20pm |
负载电容 | 12pF |
工作温度 |
40°C ~ 85°C |

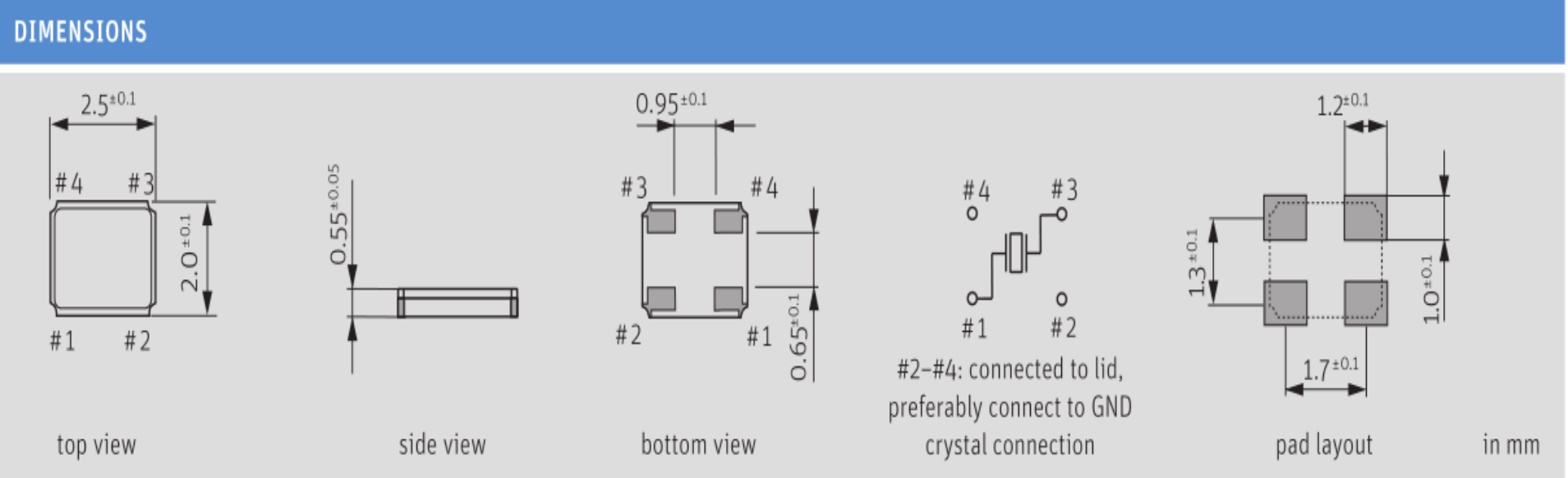

尺寸 | 2.5*2.0mm |
![](/uploadfiles/pictures/product/20180915155527_0584.jpg)
Manufacturer Part Number | 石英晶振 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
Q 19.2-JXS22-10-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 10pF | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 12pF | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 8pF | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 9pF | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 10pF | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 12pF | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 8pF | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 9pF | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 10pF | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 12pF | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 8pF | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 9pF | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 10pF | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 12pF | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 8pF | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 9pF | -20°C ~ 70°C |
Q 27.12-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 10pF | -20°C ~ 70°C |
Q 27.12-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 12pF | -20°C ~ 70°C |
Q 27.12-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 8pF | -20°C ~ 70°C |
Q 27.12-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 9pF | -20°C ~ 70°C |
Q 16.0-JXS22-10-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 10pF | -20°C ~ 70°C |
Q 16.0-JXS22-12-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 12pF | -20°C ~ 70°C |
Q 16.0-JXS22-8-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 8pF | -20°C ~ 70°C |
Q 16.0-JXS22-9-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 9pF | -20°C ~ 70°C |
Q 19.2-JXS22-10-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 10pF | -40°C ~ 85°C |
Q 19.2-JXS22-12-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 12pF | -40°C ~ 85°C |
Q 19.2-JXS22-8-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 8pF | -40°C ~ 85°C |
Q 19.2-JXS22-9-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 9pF | -40°C ~ 85°C |
Q 20.0-JXS22-10-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 10pF | -40°C ~ 85°C |
Q 20.0-JXS22-12-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 12pF | -40°C ~ 85°C |
![](http://www.zhaoxiandz.com/include/upload/ckeditor/images/531e71f1a59c0.jpg)
