JXS21P4晶体谐振器,Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF

产品简介

JXS21P4晶体谐振器,Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF，编码：Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF，型号：JXS21P4 ，工作温度：-40°C ~ 85°C，尺寸：2.0*1.6mm，频率：27MHz，精度：±20ppm，负载电容：12pF，SMD晶体，贴片晶体，石英晶振，Jauch石英晶体谐振器，2016贴片晶振，4衬垫型，2.0 x 1.6毫米-接缝密封陶瓷/金属封装-所有型号都通过了AEC-Q200认证- HMR版本，具有扩展的抗冲击和振动能力，适用于时钟钟表，无线电话，数码电子产品，智能手机，平板电脑，智能手表，智能水表，医疗设备，网络设备等用途。

产品详情

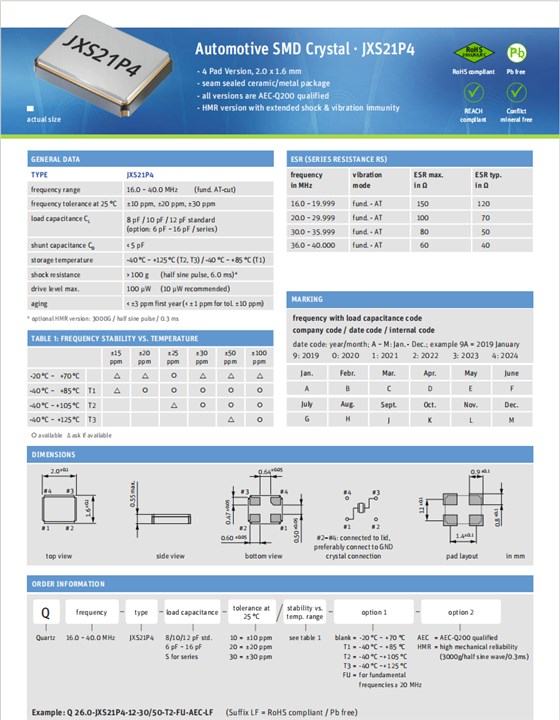

JXS21P4晶体谐振器,Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF，参数表

编码	Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF
品牌	Jauch
型号	JXS21P4
频率	27MHz
精度	±20ppm
负载电容	12pF
工作温度	-40°C ~ 85°C
尺寸	2.0*1.6mm

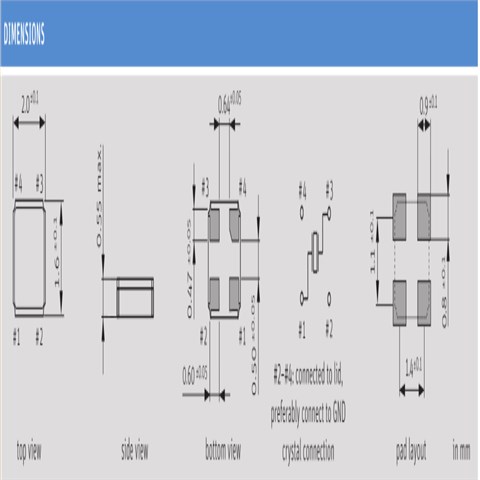

JXS21P4晶体谐振器,Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF，尺寸图

Manufacturer Part Number	美国进口晶振	Series	Frequency	Frequency Tolerance	Load Capacitance
Q 26.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	26MHz	±10ppm	10pF
Q 26.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	26MHz	±10ppm	12pF
Q 26.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	26MHz	±10ppm	8pF
Q 26.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	26MHz	±10ppm	9pF
Q 27.12-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	27.12MHz	±10ppm	10pF
Q 27.12-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	27.12MHz	±10ppm	12pF
Q 27.12-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	27.12MHz	±10ppm	8pF
Q 27.12-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	27.12MHz	±10ppm	9pF
Q 38.4-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	38.4MHz	±10ppm	10pF
Q 38.4-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	38.4MHz	±10ppm	12pF
Q 38.4-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	38.4MHz	±10ppm	8pF
Q 38.4-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	38.4MHz	±10ppm	9pF
Q 40.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	40MHz	±10ppm	10pF
Q 40.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	40MHz	±10ppm	12pF
Q 40.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	40MHz	±10ppm	8pF
Q 40.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	40MHz	±10ppm	9pF
Q 32.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	32MHz	±10ppm	10pF
Q 32.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	32MHz	±10ppm	12pF
Q 32.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	32MHz	±10ppm	8pF
Q 32.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	32MHz	±10ppm	9pF
Q 19.2-JXS21-10-10/10-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	10pF
Q 19.2-JXS21-12-10/10-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	12pF
Q 19.2-JXS21-8-10/10-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	8pF
Q 19.2-JXS21-9-10/10-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	9pF
Q 20.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	20MHz	±10ppm	10pF
Q 20.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	20MHz	±10ppm	12pF
Q 20.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	20MHz	±10ppm	8pF
Q 20.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	20MHz	±10ppm	9pF
Q 24.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	24MHz	±10ppm	10pF
Q 24.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	24MHz	±10ppm	12pF
