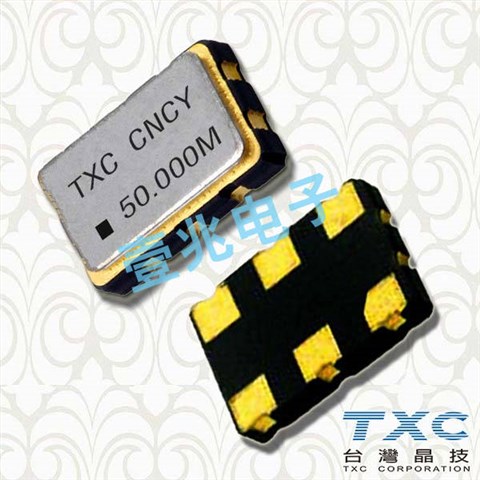

6U-16.384MBE-T,7050压控有源晶振,台产晶振

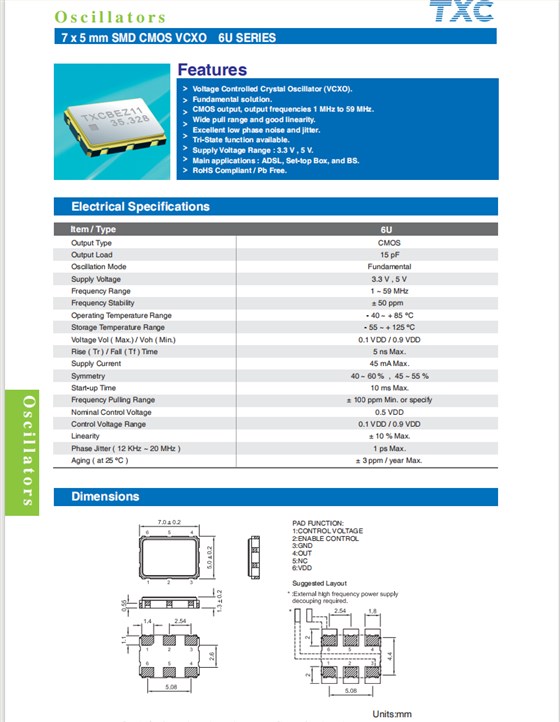

6U-16.384MBE-T,7050压控有源晶振,台产晶振，编码：6U-16.384MBE-T，型号：6U，工作温度：-40°C ~ 85°C，尺寸：7.0mm*5.0mm，频率：16.384 MHz，精度：±50ppm，电压：3.3V，电流：45mA，台产晶振，有源晶振，压控有源晶振，试压块石英晶体振荡器，XO振荡器，压控晶体，压控晶体振荡器（VCXO），CMOS输出，输出频率为1 MHz至59 MHz，宽牵引范围和良好的线性度，出色的低相位噪声和抖动，三态功能可用，电源电压范围:3.3 V和5 V，主要应用:ADSL、机顶盒和BS，笔记本电脑，智能手机，无线基站，符合RoHS标准/无铅。

6U-16.384MBE-T,7050压控有源晶振,台产晶振，参数表

编码	6U-16.384MBE-T
品牌	TXC
型号	6U
频率	16.384 MHz
精度	±50ppm
电压	3.3V
电流	45mA
工作温度	-40°C ~ 85°C
尺寸	7.0mm*5.0mm

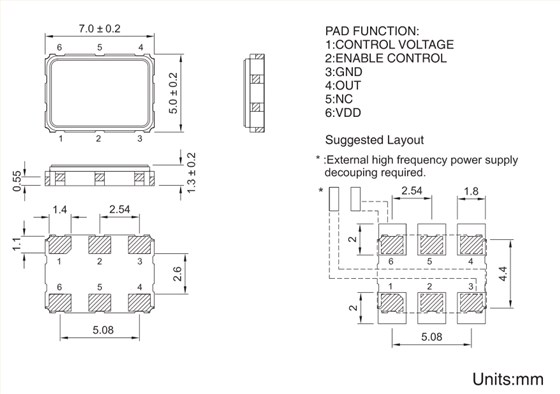

6U-16.384MBE-T,7050压控有源晶振,台产晶振，尺寸图

Mfr Part #	有源晶振SPXO	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability	Operating Temperature
7C-25.000MBE-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7C-40.000MBE-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7C-25.000MCB-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	2.5V	±50ppm	-10°C ~ 70°C
7C-26.000MBB-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7C-28.63636MBB-T	TXC CORPORATION	7C	XO (Standard)	28.63636 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7C-26.000MBA-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7C-25.000MBA-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7C-4.000MBB-T	TXC CORPORATION	7C	XO (Standard)	4 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7C-50.000MBE-T	TXC CORPORATION	7C	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7C-40.000MCB-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS	2.5V	±50ppm	-10°C ~ 70°C
7C-24.576MBA-T	TXC CORPORATION	7C	XO (Standard)	24.576 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7C-27.000MBA-T	TXC CORPORATION	7C	XO (Standard)	27 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
6U-16.384MBE-T	TXC CORPORATION	6U	VCXO	16.384 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
6U-32.768MBE-T	TXC CORPORATION	6U	VCXO	32.768 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7CZ-32.768KBA-T	TXC CORPORATION	7CZ	XO (Standard)	32.768 kHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7C-40.000MBA-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7C-48.000MBE-T	TXC CORPORATION	7C	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7CL-8.192MBD-T	TXC CORPORATION	7CL	XO (Standard)	8.192 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7CL-12.000MDD-T	TXC CORPORATION	7CL	XO (Standard)	12 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7CL-12.000MBD-T	TXC CORPORATION	7CL	XO (Standard)	12 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7CL-24.000MBD-T	TXC CORPORATION	7CL	XO (Standard)	24 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7CL-20.000MBD-T	TXC CORPORATION	7CL	XO (Standard)	20 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7CL-27.000MBD-T	TXC CORPORATION	7CL	XO (Standard)	27 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7CL-7.3728MDD-T	TXC CORPORATION	7CL	XO (Standard)	7.3728 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7CL-100.000MBD-T	TXC CORPORATION	7CL	XO (Standard)	100 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7CL-24.000MDD-T	TXC CORPORATION	7CL	XO (Standard)	24 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7CL-25.000MBD-T	TXC CORPORATION	7CL	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7CL-100.000MDD-T	TXC CORPORATION	7CL	XO (Standard)	100 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7CL-50.000MBD-T	TXC CORPORATION	7CL	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7CL-10.000MDD-T	TXC CORPORATION	7CL	XO (Standard)	10 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7CL-4.000MBD-T	TXC CORPORATION	7CL	XO (Standard)	4 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7CL-24.576MDD-T	TXC CORPORATION	7CL	XO (Standard)	24.576 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7CL-20.000MDD-T	TXC CORPORATION	7CL	XO (Standard)	20 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7CL-4.000MDD-T	TXC CORPORATION	7CL	XO (Standard)	4 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7CL-48.000MBD-T	TXC CORPORATION	7CL	XO (Standard)	48 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
