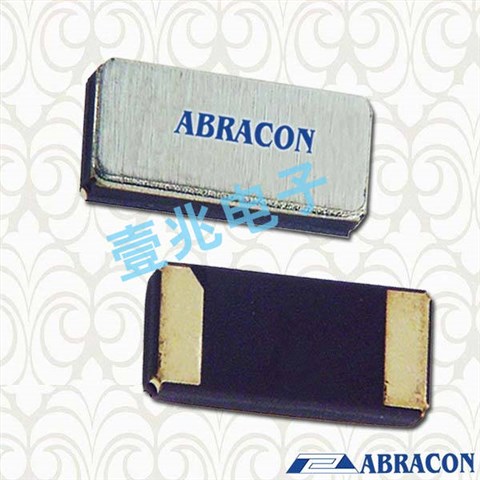

ABS07W美国进口晶振,ABS07W-32.768KHZ-K-1-T,3215贴片晶体

ABS07W美国进口晶振,ABS07W-32.768KHZ-K-1-T,3215贴片晶体，编码为：ABS07W-32.768KHZ-K-1-T，型号：ABS07W系列晶振，公差:±10ppm，工作温度：-40°C ~ 125°C，尺寸：3.2mmx1.5mm，频率：32.768kHz，负载电容：3pF，无源晶振，3215晶体，3.0pF的极低电镀负载，非常适合可穿戴设备，无线和物联网应用同时针对长期工作环境下的ESR进行了优化温度范围小3.2x1.5x0.9 mm SMD封装，非常适合空间受限的设计提供10 ppm设定容差接缝密封包装具有长期可靠性。

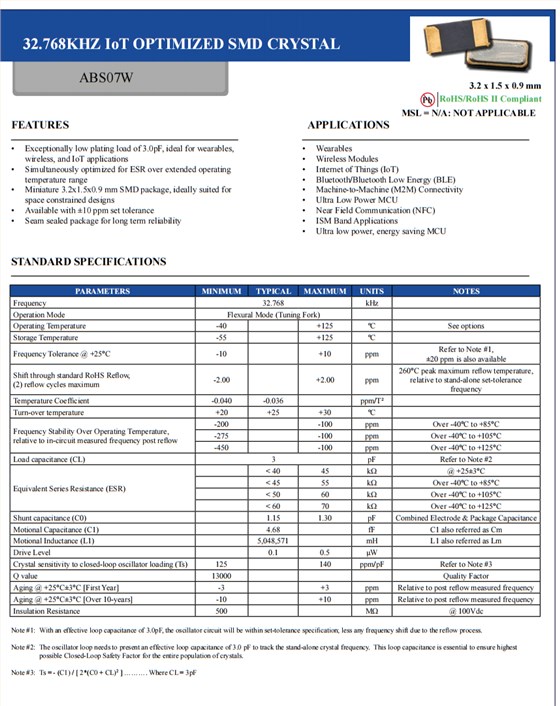

ABS07W美国进口晶振,ABS07W-32.768KHZ-K-1-T,3215贴片晶体，参数表

原厂编码	ABS07W-32.768KHZ-K-1-T
品牌	Abracon晶振
型号	ABS07W
频率	32.768kHz
频率偏差	±10ppm
负载电容	3pF
工作温度-	-40°C ~ 125°C

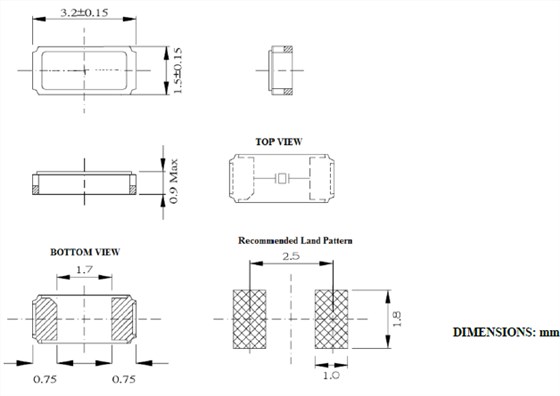

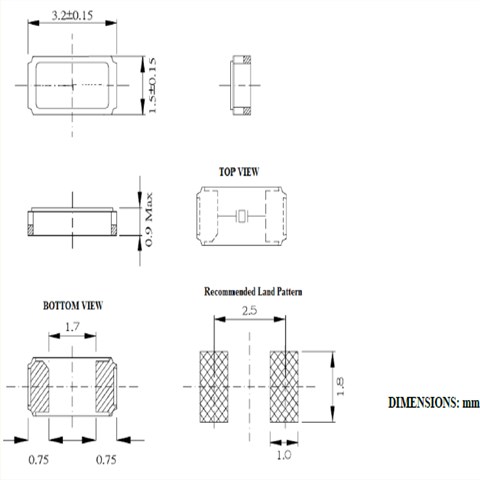

ABS07W美国进口晶振,ABS07W-32.768KHZ-K-1-T,3215贴片晶体，尺寸图

Manufacturer Part Number 原厂编码	壹兆晶振厂家	Series型号	Frequency频率	Frequency Tolerance频率偏差	Load Capacitance负载电容	Operating Temperature 工作温度
ABS10-32.768KHZ-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-7-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS10-32.768KHZ-7-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS10-32.768KHZ-7-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS10-32.768KHZ-9-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS10-32.768KHZ-9-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS10-32.768KHZ-9-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS09-32.768KHZ-9-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS09-32.768KHZ-9-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS09-32.768KHZ-9-T	贴片晶振	ABS09	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS09-32.768KHZ-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-1-T	Abracon 晶振	ABS10	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-1-T	Abracon 晶振	ABS10	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-1-T	Abracon 晶振	ABS10	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-7-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS09-32.768KHZ-7-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS09-32.768KHZ-7-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS09-32.768KHZ-1-T	Abracon 晶振	ABS09	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-1-T	Abracon 晶振	ABS09	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-1-T	Abracon 晶振	ABS09	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-4-T	Abracon 晶振	ABS10	32.768kHz	±30ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-4-T	Abracon 晶振	ABS09	32.768kHz	±30ppm	12.5pF	-40°C ~ 85°C
ABS07W-32.768KHZ-D-1-T	Abracon 晶振	ABS07W	32.768kHz	±10ppm	3pF	-40°C ~ 85°C
ABS07W-32.768KHZ-D-2-T	Abracon 晶振	ABS07W	32.768kHz	±20ppm	3pF	-40°C ~ 85°C
ABS07W-32.768KHZ-J-2-T	Abracon 晶振	ABS07W	32.768kHz	±20ppm	3pF	-40°C ~ 105°C
ABS07W-32.768KHZ-J-1-T	Abracon 晶振	ABS07W	32.768kHz	±10ppm	3pF	-40°C ~ 105°C
ABS07W-32.768KHZ-K-2-T	Abracon 晶振	ABS07W	32.768kHz	±20ppm	3pF	-40°C ~ 125°C
ABS07W-32.768KHZ-K-1-T	Abracon 晶振	ABS07W	32.768kHz	±10ppm	3pF	-40°C ~ 125°C
