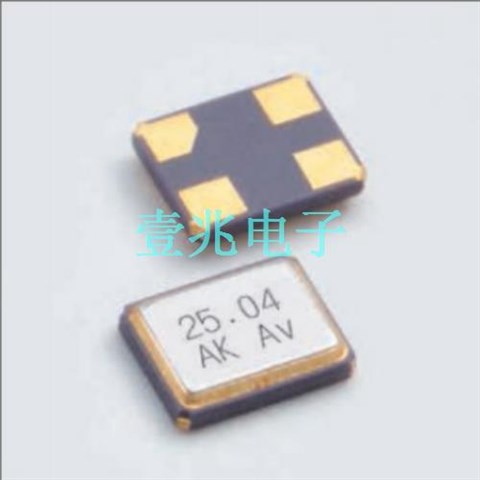

C3E-12.000-8-2050-X1-R无源晶体,AKER贴片石英晶体，编码：C3E-12.000-8-2050-X1-R，型号：C3E X1，工作温度：-40°C ~ 125°C，尺寸：3.2*2.5mm，频率：12 MHz，精度：±20ppm，负载电容：8pF，3225进口晶振，安基贴片晶振，石英晶体谐振器，贴片晶体，数码电子晶振，石英晶体晶振，超小型表面贴片型SMD晶振,最适合使用在汽车电子领域中,也是特别要求高可靠性的引擎控制用CPU的时钟部分.低频晶振可从7.98MHz起对应,小型,超薄型具备强防焊裂性,石英晶体在极端严酷的环境条件下也能发挥稳定的起振特性,产品本身具有耐热,耐振,耐撞击等优良的耐环境特性,满足无铅焊接以及高温回流温度曲线要求,符合AEC-Q200标准.

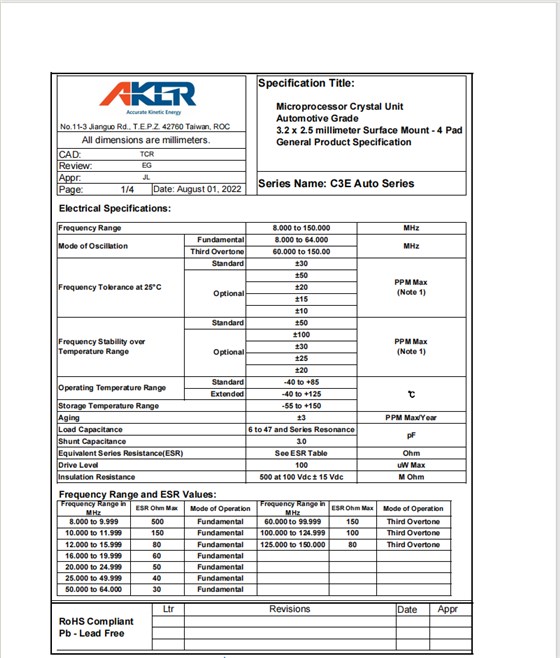

C3E-12.000-8-2050-X1-R无源晶体,AKER贴片石英晶体，参数表
| 编码 | C3E-12.000-8-2050-X1-R |
| 品牌 | AKER |
| 型号 | C3E X1 |
| 频率 | 12MHz |
| 精度 |
±20pm |
| 负载电容 | 8pF |
| 工作温度 |
40°C ~ 125°C |
| 尺寸 | 3.2*2.5mm |

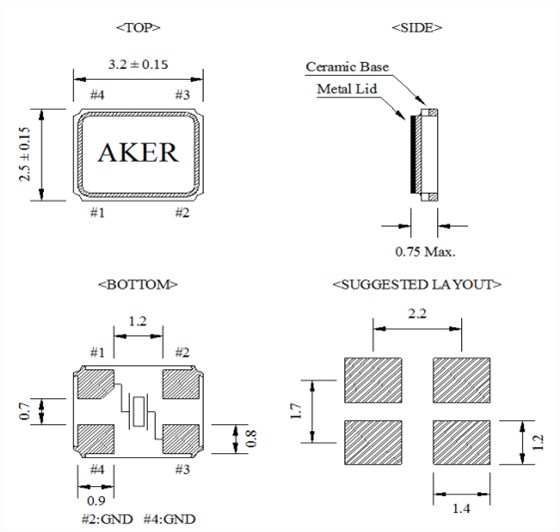

C3E-12.000-8-2050-X1-R无源晶体,AKER贴片石英晶体，尺寸图
| Mfr Part # | 石英晶体晶振 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
| C5S-26.000-16-1010-R | Aker Technology USA | C5S | 26 MHz | ±10ppm | 16pF | -20°C ~ 70°C |
| C5S-8.000-18-3030-R | Aker Technology Corp | C5S | 8 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| CAA-4.000-18-3050-X-R | Aker Technology Corp | CAA | 4 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| CAA-11.0592-18-3050-R | Aker Technology Corp | CAA | 11.0592 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| CAA-8.000-18-3050-X-R | Aker Technology Corp | CAA | 8 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| CAA-40.000-18-3050-R | Aker Technology Corp | CAA | 40 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| C3E-12.000-8-2050-X1-R | Aker Technology Corp | C3E X1 | 12 MHz | ±20ppm | 8pF | -40°C ~ 125°C |
| C3E-16.000-10-3050-X1-R | Aker Technology Corp | C3E X1 | 16 MHz | ±30ppm | 10pF | -40°C ~ 125°C |
| C3E-20.000-8-3050-X1-R | Aker Technology Corp | C3E X1 | 20 MHz | ±30ppm | 8pF | -40°C ~ 125°C |
| C5S-12.000-18-1020-R | Aker Technology Corp | C5S | 12 MHz | ±10ppm | 18pF | -10°C ~ 70°C |
| C3E-16.000-10-2050-X1-R | Aker Technology Corp | C3E X1 | 10 MHz | ±20ppm | 10pF | -40°C ~ 125°C |
| C3E-30.000-8-2050-X1-R | Aker Technology Corp | C3E X1 | 30 MHz | ±20ppm | 8pF | -40°C ~ 125°C |
| C7S-12.000-12-3030-X-R | Aker Technology Corp | C7S | 12 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
| C7S-8.000-18-1020-R | Aker Technology Corp | C7S | 8 MHz | ±10ppm | 18pF | -10°C ~ 70°C |
| C7S-8.000-18-1030-X-R | Aker Technology Corp | C7S | 8 MHz | ±10ppm | 18pF | -40°C ~ 85°C |
| CA4-16.000-18-3050-R | Aker Technology Corp | CA4 | 16 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| CA4-8.000-16-3050-R | Aker Technology Corp | CA4 | 8 MHz | ±30ppm | 16pF | -20°C ~ 70°C |
| C3E-16.000-8-2050-X1-R | Aker Technology Corp | C3E X1 | 16 MHz | ±20ppm | 8pF | -40°C ~ 125°C |
| C3E-20.000-10-3050-X1-R | Aker Technology Corp | C3E X1 | 20 MHz | ±30ppm | 10pF | -40°C ~ 125°C |
| C5S-24.000-20-3030-X-R | Aker Technology Corp | C5S | 24 MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| C5S-12.000-16-5050-X-R | Aker Technology Corp | C5S | 12 MHz | ±50ppm | 16pF | -40°C ~ 85°C |
| C5S-20.000-20-3050-X-R | Aker Technology Corp | C5S | 20 MHz | ±50ppm | 20pF | -40°C ~ 85°C |
| C5S-12.000-16-3030-X-R | Aker Technology USA | C5S | 12 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
| C5S-8.000-12-2020-X-R | Aker Technology Corp | C5S | 8 MHz | ±20ppm | 12pF | -40°C ~ 85°C |
| C6S-16.000-12-5050-X-R | Aker Technology Corp | C6S | 16 MHz | ±50ppm | 12pF | -40°C ~ 85°C |
| C5S-8.000-18-3030-X-R | Aker Technology USA | C5S | 8 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| C5S-8.000-16-3030-X-R | Aker Technology USA | C5S | 8 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
| C5S-24.000-18-20100-A-X1-R | Aker Technology Corp | C5S Auto | - | ±20ppm | 18pF | -40°C ~ 125°C |
