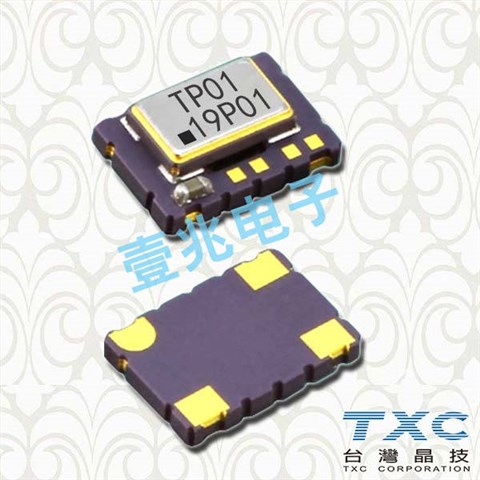

7050温补有源晶振,7N-38.880MBP-T,TXC晶体振荡器

产品简介

7050温补有源晶振,7N-38.880MBP-T,TXC晶体振荡器，编码：7N-38.880MBP-T，型号：7N，工作温度：-40°C ~ 85°C，尺寸：7.0mm*5.0mm，频率：38.88 MHz，精度：±280ppb，电压：3.3V，电流：10mA，台产晶振，有源7050贴片晶振，高精度温补晶振，TCXO晶振，频率范围： 10MHz至52MHz，SMD接缝密封陶瓷封装，电源电压：3.3V，CMOS输出，电压控制功能可用，符合RoHS标准& Pb免费，产品广泛应用于无线通信，基站，网络设备，军事设备，测试和测量设备，卫星导航。

产品详情

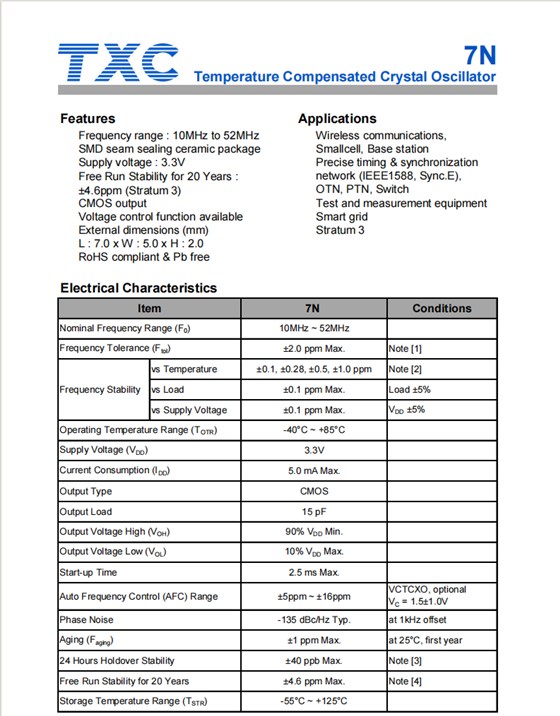

7050温补有源晶振,7N-38.880MBP-T,TXC晶体振荡器，参数表

编码	7N-38.880MBP-T
品牌	TXC
型号	7N
频率	38.88 MHz
精度	±280ppb
电压	3.3V
电流	10mA
工作温度	-40°C ~ 85°C
尺寸	7.0mm*5.0mm

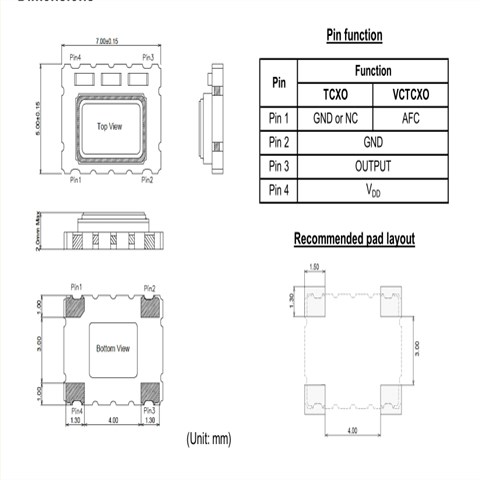

7050温补有源晶振,7N-38.880MBP-T,TXC晶体振荡器，尺寸图

Mfr Part #	TCXO晶振	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability
7N-20.000MBP-T	TXC CORPORATION	7N	TCXO	20 MHz	CMOS	3.3V	±280ppb
7N-12.800MBP-T	TXC CORPORATION	7N	TCXO	12.8 MHz	CMOS	3.3V	±280ppb
7N-10.000MBP-T	TXC CORPORATION	7N	TCXO	10 MHz	CMOS	3.3V	±280ppb
7P-19.200MBP-T	TXC CORPORATION	7P	TCXO	19.2 MHz	CMOS	3.3V	±280ppb
7N-19.200MBP-T	TXC CORPORATION	7N	TCXO	19.2 MHz	CMOS	3.3V	±280ppb
7N-19.440MBP-T	TXC CORPORATION	7N	TCXO	19.44 MHz	CMOS	3.3V	±280ppb
7N48071005	TXC CORPORATION	7N	TCXO	48 MHz	CMOS	3.3V	±140ppb
7N38871002	TXC CORPORATION	7N	TCXO	38.88 MHz	CMOS	3.3V	±250ppb
7N19471005	TXC CORPORATION	7N	TCXO	19.44 MHz	CMOS	3.3V	±140ppb
7N20070004	TXC CORPORATION	7N	TCXO	20 MHz	CMOS	3.3V	±250ppb
7N10071003	TXC CORPORATION	7N	TCXO	10 MHz	CMOS	3.3V	±250ppb
7N20071005	TXC CORPORATION	7N	TCXO	20 MHz	CMOS	3.3V	±140ppb
7N48071001	TXC CORPORATION	7N	TCXO	48 MHz	CMOS	3.3V	±250ppb
7N19471003	TXC CORPORATION	7N	TCXO	19.44 MHz	CMOS	3.3V	±250ppb
7N38871003	TXC CORPORATION	7N	TCXO	38.88 MHz	CMOS	3.3V	±140ppb
7P-25.000MBP-T	TXC CORPORATION	7P	TCXO	25 MHz	CMOS	3.3V	±280ppb
7P-26.000MBP-T	TXC CORPORATION	7P	TCXO	26 MHz	CMOS	3.3V	±280ppb
7P-38.400MBP-T	TXC CORPORATION	7P	TCXO	38.4 MHz	CMOS	3.3V	±280ppb
7N-25.000MBP-T	TXC CORPORATION	7N	TCXO	25 MHz	CMOS	3.3V	±280ppb
7N-26.000MBP-T	TXC CORPORATION	7N	TCXO	26 MHz	CMOS	3.3V	±280ppb
7N-38.880MBP-T	TXC CORPORATION	7N	TCXO	38.88 MHz	CMOS	3.3V	±280ppb
7N-40.000MBP-T	TXC CORPORATION	7N	TCXO	40 MHz	CMOS	3.3V	±280ppb
7Q-16.367667MBN-T	TXC CORPORATION	7Q	TCXO	16.367667 MHz	Clipped Sine Wave	3.3V	±2ppm
7Q-16.368MBN-T	TXC CORPORATION	7Q	TCXO	16.368 MHz	Clipped Sine Wave	3.3V	±2ppm
7Q-19.200MBS-T	TXC CORPORATION	7Q	VCTCXO	19.2 MHz	Clipped Sine Wave	3.3V	±2ppm
7Q-26.000MBS-T	TXC CORPORATION	7Q	VCTCXO	26 MHz	Clipped Sine Wave	3.3V	±2ppm
7Q-40.000MBS-T	TXC CORPORATION	7Q	VCTCXO	40 MHz	Clipped Sine Wave	3.3V	±2ppm
7Q-16.367667MBG-T	TXC CORPORATION	7Q	TCXO	16.367667 MHz	Clipped Sine Wave	3.3V	±500ppb
7Q-16.3676MBG-T	TXC CORPORATION	7Q	TCXO	16.3676 MHz	Clipped Sine Wave	3.3V	±500ppb
7Q-16.368MBG-T	TXC CORPORATION	7Q	TCXO	16.368 MHz	Clipped Sine Wave	3.3V	±500ppb
7Q-16.369MBG-T	TXC CORPORATION	7Q	TCXO	16.369 MHz	Clipped Sine Wave	3.3V	±500ppb
7Q-26.000MBG-T	TXC CORPORATION	7Q	TCXO	26 MHz	Clipped Sine Wave	3.3V	±500ppb
7Q-12.800MCS-T	TXC CORPORATION	7Q	VCTCXO	12.8 MHz	Clipped Sine Wave	2.5V	±2ppm
7Q-16.000MCS-T	TXC CORPORATION	7Q	VCTCXO	16 MHz	Clipped Sine Wave	2.5V	±2ppm
7Q-16.3676MCS-T	TXC CORPORATION	7Q	VCTCXO	16.3676 MHz	Clipped Sine Wave	2.5V	±2ppm
