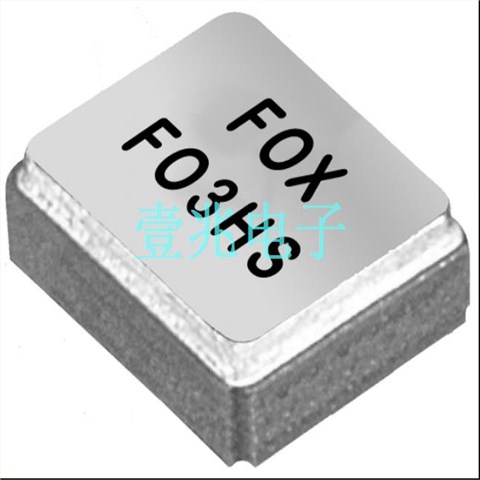

3225贴片差分晶振,FO3HSCBM48.0-T2,福克斯晶振，编码：FO3HSCBM48.0-T2，型号：FO3HS，工作温度：-40°C ~ 85°C，尺寸：3.2*2.5mm，频率：48 MHz，电压：3.3V，精度：±50ppm，电流：19mA，输出方式：HCMOS，晶体振荡器，美国进口晶振，差分晶体，石英差分晶振，差分输出振荡器，FOX石英晶振，HCMOS输出
稳定性高达20 PPM
温度范围宽至-40°C至+125°C
电源电压:1.0V、1.8V、2.5V、3.3V，可变(1.6V ~ 3.63V2.25V ~ 3.63V)，差分晶振常用于高精度的时钟应用，如通信设备，数据存储器和精密仪器等。它的优点包括低相位噪声、低抖动和高频率稳定性，能够满足一些对时钟信号质量要求较高的应用场景，差分晶振是一种常见的电子元件，可用于许多应用领域。

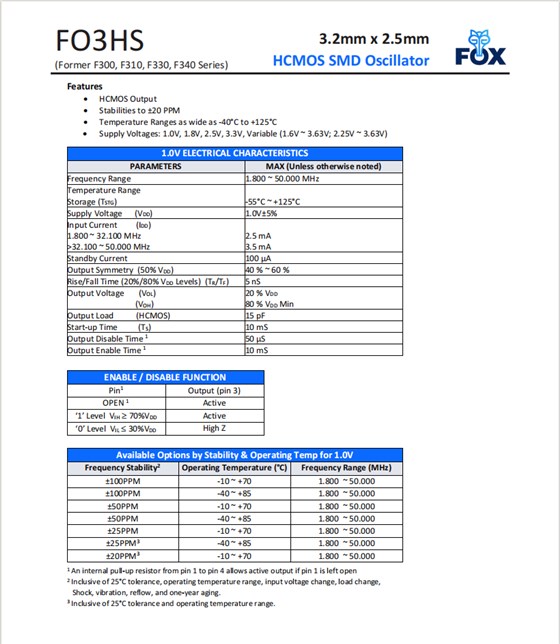

3225贴片差分晶振,FO3HSCBM48.0-T2,福克斯晶振，参数表
| 编码 | FO3HSCBM48.0-T2 |
| 品牌 | FOX |
| 型号 | FO3HS |
| 频率 | 48MHz |
| 精度 |
±50ppm |
| 电流 | 19mA |
| 电压 |
3.3V |
| 输出方式 |
HCMOS |
| 工作温度 | -40°C ~ 85°C |
| 尺寸 | 3.2mm*2.5mm |

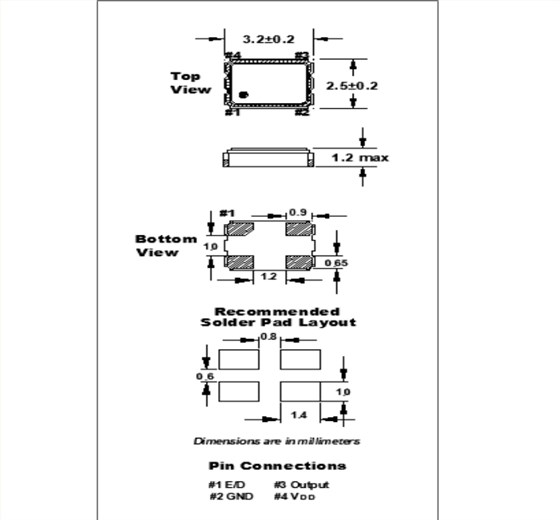

3225贴片差分晶振,FO3HSCBM48.0-T2,福克斯晶振，尺寸图
| Mfr Part # | 差分有源晶振 | Supplier | Series | Type | Frequency | Output | Voltage - Supply |
| FT5HNBPK25.0-T1 | Fox Electronics | Fox Electronics | FOX924 | TCXO | 25 MHz | HCMOS | 3.3V |
| FT5HNBPK10.0-T1 | Fox Electronics | Fox Electronics | FOX924 | TCXO | 10 MHz | HCMOS | 3.3V |
| FT5HNBPK12.0-T1 | Fox Electronics | Fox Electronics | FOX924 | TCXO | 12 MHz | HCMOS | 3.3V |
| FT5HNBPK12.288-T1 | Fox Electronics | Fox Electronics | FOX924 | TCXO | 12.288 MHz | HCMOS | 3.3V |
| FT5HNBPK14.7456-T1 | Fox Electronics | Fox Electronics | FOX924 | TCXO | 14.7456 MHz | HCMOS | 3.3V |
| FT5HNBPK20.0-T1 | Fox Electronics | Fox Electronics | FOX924 | TCXO | 20 MHz | HCMOS | 3.3V |
| FT5HNBPK27.0-T1 | Fox Electronics | Fox Electronics | FOX924 | TCXO | 27 MHz | HCMOS | 3.3V |
| FT9CVDPH20.0-T1 | Fox Electronics | Fox Electronics | FOX801_E | VCTCXO | 20 MHz | Clipped Sine Wave | 3V |
| FT5CNDPK12.8-T1 | Fox Electronics | Fox Electronics | FOX914 | TCXO | 12.8 MHz | Clipped Sine Wave | 3V |
| FT5HNBPK16.0-T1 | Fox Electronics | Fox Electronics | FOX924 | TCXO | 16 MHz | HCMOS | 3.3V |
| FO7HSCBM50.0-T1 | Fox Electronics | Fox Electronics | FO7HS | XO (Standard) | 50 MHz | HCMOS | 3.3V |
| FO7HSCAE48.0-T1 | Fox Electronics | Fox Electronics | FO7HS | XO (Standard) | 48 MHz | HCMOS | 3.3V |
| FT1MNTUM-38.4-T1 | Fox Electronics | Fox Electronics | FT1MN | TCXO | 38.4 MHz | Clipped Sine Wave | 1.68V ~ 3.63V |
| FT1MNTUM-26.0-T1 | Fox Electronics | Fox Electronics | FT1MN | TCXO | 26 MHz | Clipped Sine Wave | 1.68V ~ 3.63V |
| FT5CNDPK20.0-T1 | Fox Electronics | Fox Electronics | FOX914 | TCXO | 20 MHz | Clipped Sine Wave | 3V |
| FT5HNBPK19.44-T1 | Fox Electronics | Fox Electronics | FOX924 | TCXO | 19.44 MHz | HCMOS | 3.3V |
| FT9CVDPH10.0-T1 | Fox Electronics | Fox Electronics | FOX801_E | VCTCXO | 10 MHz | Clipped Sine Wave | 3V |
| FO3HSCBM48.0-T2 | Fox Electronics | Fox Electronics | FO3HS | XO (Standard) | 48 MHz | HCMOS | 3.3V |
| FO7HSCAF30.0-T1 | Fox Electronics | Fox Electronics | FO7HS | XO (Standard) | 30 MHz | HCMOS | 3.3V |
| FO7HSCAE33.333-T1 | Fox Electronics | Fox Electronics | FO7HS | XO (Standard) | 33.333 MHz | HCMOS | 3.3V |
| FO7HSCAM24.0-T1 | Fox Electronics | Fox Electronics | FO7HS | XO (Standard) | 24 MHz | HCMOS | 3.3V |
| FO7HSCBM25.0-T1 | Fox Electronics | Fox Electronics | FO7HS | XO (Standard) | 25 MHz | HCMOS | 3.3V |
| FO7HSCAE14.31818-T1 | Fox Electronics | Fox Electronics | FO7HS | XO (Standard) | 14.31818 MHz | HCMOS | 3.3V |
| FO7HHAAM16.0-T1 | Fox Electronics | Fox Electronics | FO7HH | XO (Standard) | 16 MHz | HCMOS | 5V |
