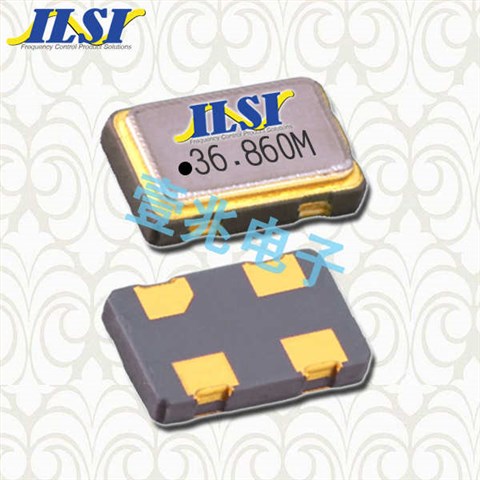

ISM92-5161FH- 46.320MHz差分贴片晶振,5032有源差分晶振,，编码：ISM92-5161FH- 46.320MHz，型号：ISM92，工作温度：0℃ ~ 70℃，精度：±20ppm，尺寸：5.0*3.2mm，频率：46.32MHz，电压：5V,电流：40mA，输出方式：HCMOS, TTL，差分输出振荡器，差分有源晶振，差分晶振，贴片差分晶振，石英差分晶振，具有低抖动，低差损，低衰减，低相噪，低相控，低功耗，低电平等特性，广泛应用于计算机，通信，工业控制等领域。
ISM92-5161FH- 46.320MHz差分贴片晶振,5032有源差分晶振,，参数表
| 编码 | ISM92-5161FH- 46.320MHz |
| 品牌 | ILSI |
| 型号 | ISM92 |
| 频率 | 46.32MHz |
| 精度 | ±20ppm |
| 电压 |
5V |
| 电流 |
40mA |
| 输出方式 |
HCMOS, TTL |
| 工作温度 |
0℃ ~ 70℃ |
ISM92-5161FH- 46.320MHz差分贴片晶振,5032有源差分晶振,，尺寸图
| Part |
ILSI晶振 |
型号 | Type | Subtype | Length | Width | Height | Operating Temperature | Frequency |
| ISM92-1151BH- 80.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | 0℃ ~ 70℃ | 80 MHz |
| ISM92-1166BH- 80.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | 0℃ ~ 70℃ | 80 MHz |
| ISM92-1351AH- 24.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 24 MHz |
| ISM92-3251BH- 12.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | -40℃ ~ 85℃ | 12 MHz |
| ISM92-3251BH- 25.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | -40℃ ~ 85℃ | 25 MHz |
| ISM92-3251CH- 20.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | -40℃ ~ 85℃ | 20 MHz |
| ISM92-3351AH- 8.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 8 MHz |
| ISM92-3351AH- 12.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 12 MHz |
| ISM92-3351AH- 24.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 24 MHz |
| ISM92-3351AH- 25.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 25 MHz |
| ISM92-3351AH- 50.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 50 MHz |
| ISM92-3361BH- 48.000 MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | -20℃ ~ 70℃ | 48 MHz |
| ISM92-5151CH- 37.872MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | 0℃ ~ 70℃ | 37.872 MHz |
| ISM92-5161FH- 46.320MHz | ILSI | ISM92 | XO (Standard) | Crystal | 5mm | 3.2mm | 1.6mm | 0℃ ~ 70℃ | 46.32 MHz |
| ISM97-1251BO- 25.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 25 MHz |
| ISM97-1351AH- 12.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -20℃ ~ 70℃ | 12 MHz |
| ISM97-3151BH- 50.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | 0℃ ~ 70℃ | 50 MHz |
| ISM97-3153BH- 40.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | 0℃ ~ 70℃ | 40 MHz |
| ISM97-3251BH- 8.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 8 MHz |
| ISM97-3251BH- 14.7456 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 4.7456 MHz |
| ISM97-3251BH- 20.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 20 MHz |
| ISM97-3251BH- 24.576 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 24.576 MHz |
| ISM97-3251BH- 25.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 25 MHz |
| ISM97-3251BH- 40.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 40 MHz |
| ISM97-3251BH- 50.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 50 MHz |
| ISM97-3261AH- 13.560 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 13.56 MHz |
| ISM97-3351AH- 12.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -20℃ ~ 70℃ | 12 MHz |
| ISM97-3351AH- 24.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -20℃ ~ 70℃ | 24 MHz |
| ISM97-3351AH- 50.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -20℃ ~ 70℃ | 50 MHz |
| ISM97-3651BH- 25.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -10℃ ~ 70℃ | 25 MHz |
| ISM97-3651EH- 19.200 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -10℃ ~ 70℃ | 19.2 MHz |
| ISM97-3651EH- 24.000 MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -10℃ ~ 70℃ | 24 MHz |
| ISM97-8251BH-24.000MHz | ILSI | ISM97 | XO (Standard) | Crystal | 3.2mm | 2.5mm | 1.2mm | -40℃ ~ 85℃ | 24 MHz |
